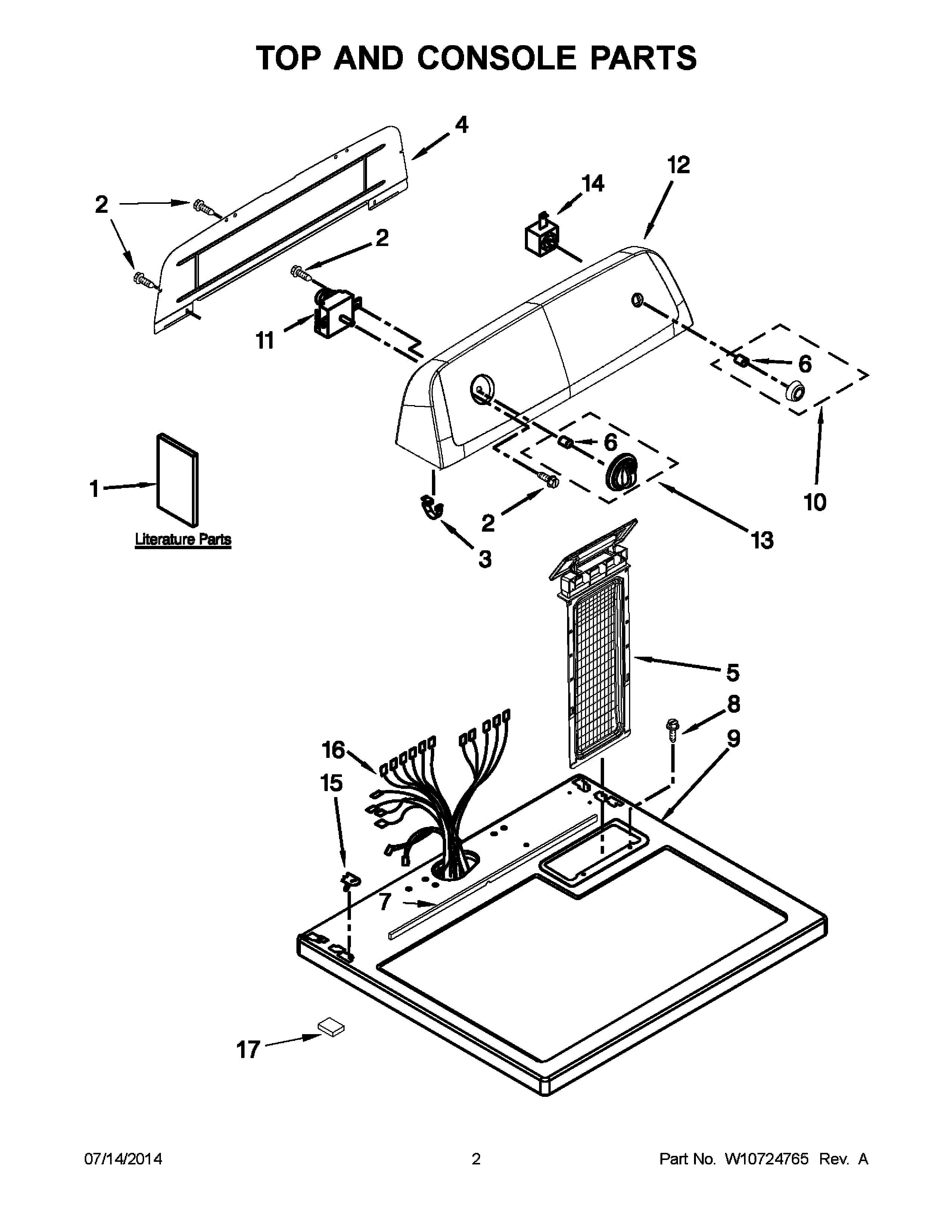

AGD4675YQ3 02 – TOP AND CONSOLE PARTS

AGD4675YQ3 02 – TOP AND CONSOLE PARTS

Written by

in

AGD4675YQ3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BMAY W10185990
1AMAY W10514185
1USE AND CARE GUIDE
2Screw
3MAY 8312709
4MAY W10416486
5SCREEN, LINT (WHITE)
6CLIP, SPRING
7MAY W10316616
8SCREW
9MAY 8559800
10KNOB, PUSH TO START (WHITE)
11MAY W10436306
12MAY W10295167
13ASSEMBLY, TIMER KNOB (WHITE)
14MAY W10420741
15NUT, "U"
16MAY W10450287
17MAY 3389682
