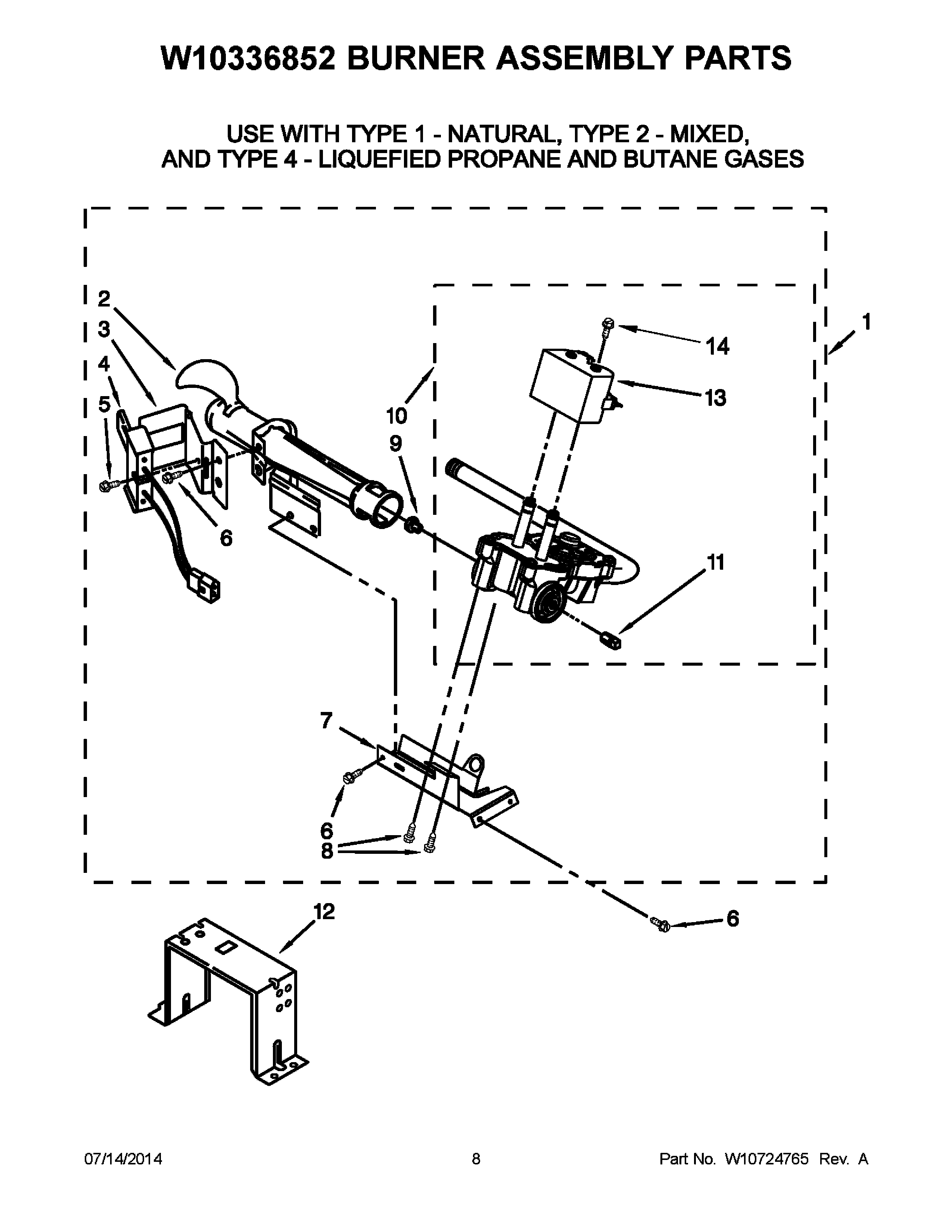

AGD4675YQ3 05 – W10336852 BURNER ASSEMBLY PARTS

AGD4675YQ3 05 – W10336852 BURNER ASSEMBLY PARTS

Written by

in

AGD4675YQ3 05 – W10336852 BURNER ASSEMBLY PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10307153
1	MAY W10336852
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY W10366705
6	SCREW
7	MAY 693986
8	SCREW
9	TYPE 1 (NATURAL)
10	MAY W10304604
11	MAY W10295523
12	MAY 3389889
13	MAY W10328463
14	MAY 326049536
