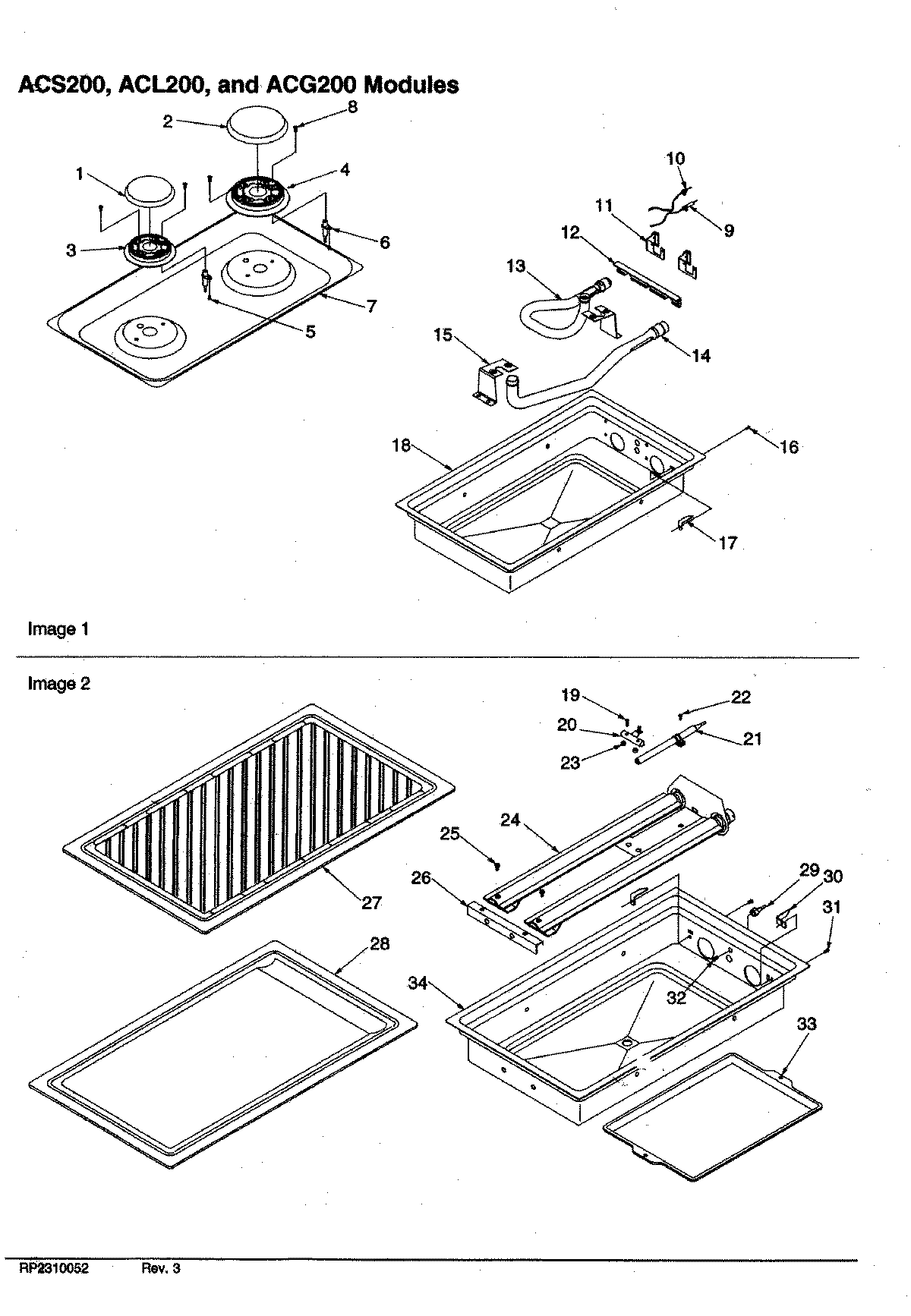

AGDS902WW 05 – GAS CARTRIDGE, GRIDDLE, GRILL

Products

Position	Product
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
1	CAP, BURNER 9K (SPECKLE GREY)
2	CAP, BURNER 12/13K (MATTE BLK)
2	CAP, BURNER 12/13K (SPKLE GRY)
3	TOP BURNER (MEDIUM 9K)
4	TOP BURNER (LARGE 12/13K)
5	SCREW, ELECTRODE
6	WPY0316773 Whirlpool Surface Igniter
7	TOP, MODULE-SEALED BURNER(BLK)
7	TOP, MODULE-SEALED BURNER(WHT)
7	TOP, MODULE-SEALED BURNER (SS)
8	WPY04100059 Whirlpool Screw
9	ELECTRODE, BURNER IGN. 21“WIRE
10	ELECTRODE, BURNER IGN. 1O“WIRE
12	BRKT, VENTURI CLAMPING
13	VENTURI, REAR BURNER-HW
14	VENTURI, FRONT BURNER-HW
15	BRKT, BURNER MTG.
18	SCREW, No.8-18 X 1/4 P TRS HD
18	MODULE PAN,GAS SEALED BRNR(BLA
18	WASHER, LOCK 5/32 X 9/32 O.D.
19	MAY Y0041821
20	MAY Y0040841
21	MAY Y0042217
22	MAY 31750402
23	MAY 31750112
24	MAY 31891801B
25	WP693995 Whirlpool Screw
26	MAY Y041041B
27	MAY 31902101B
28	MAY 31902001B
29	MAY Y0041898
30	MAY Y0315593
31	SCREW, No.6-32 X .312 PANHD(BLK)
32	MAY 31750401
33	MAY Y0042724
34	MAY 315746CG
34	MAY 31750006
35	MAY 316175SY
