AGE939 Loading Door, Front Panel and Seals

AGE939 Loading Door, Front Panel and Seals

Written by

in

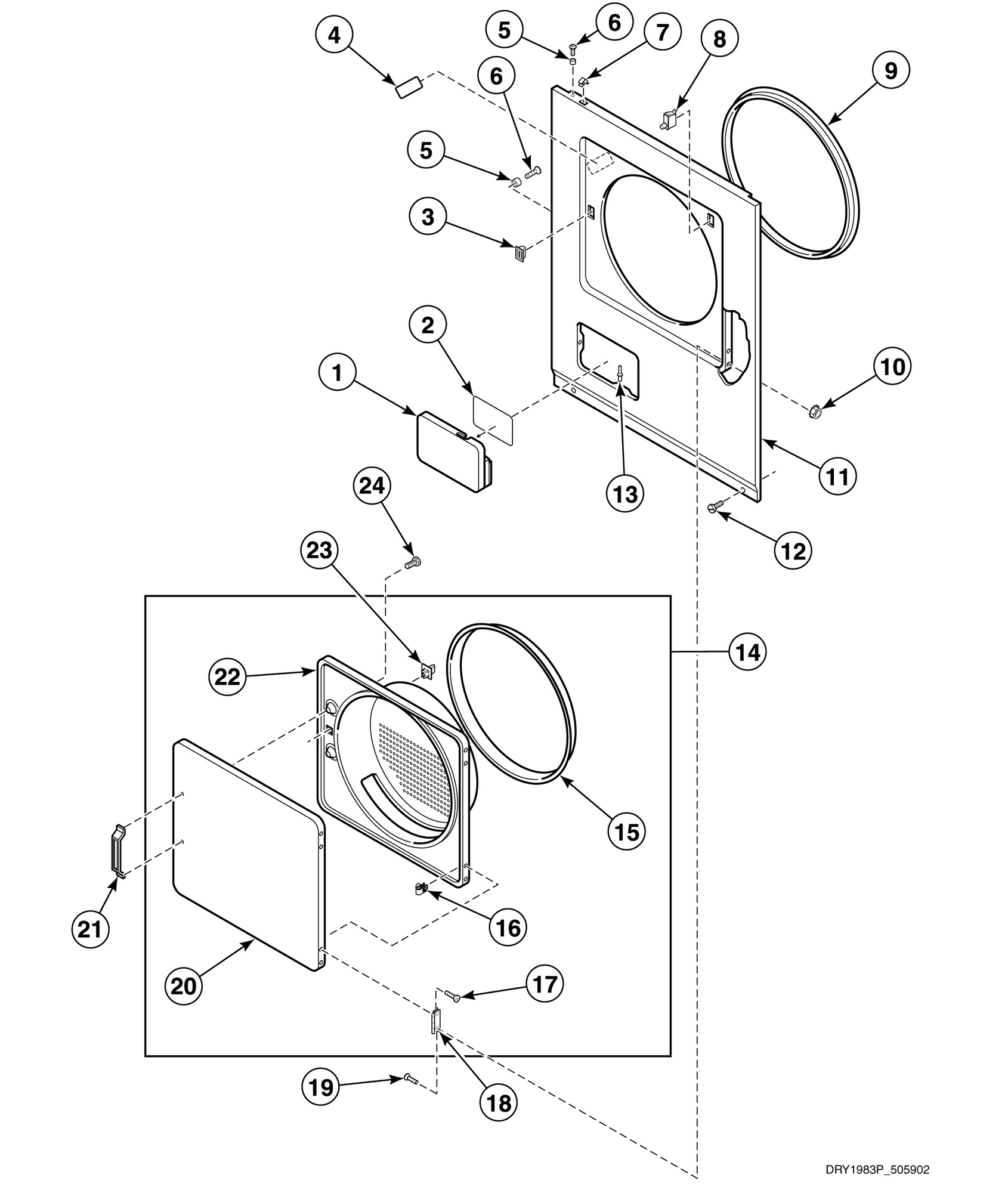

AGE939 Loading Door, Front Panel and Seals

Products

PositionProduct
1Access Door (Comment: White)
2Gas Clearance Label
3Door Catch Assembly
4Warning/Caution Label
5Panel Locator
6Screw
7Speed Clip
8Switch
9Front Panel Seal
10Nut
12Screw
13Support Barrel
15Door Seal
16Nut
17Screw
18Hinge
19Screw
21Door Pull
22Wire Harness Assembly
23Door Strike
24Screw
