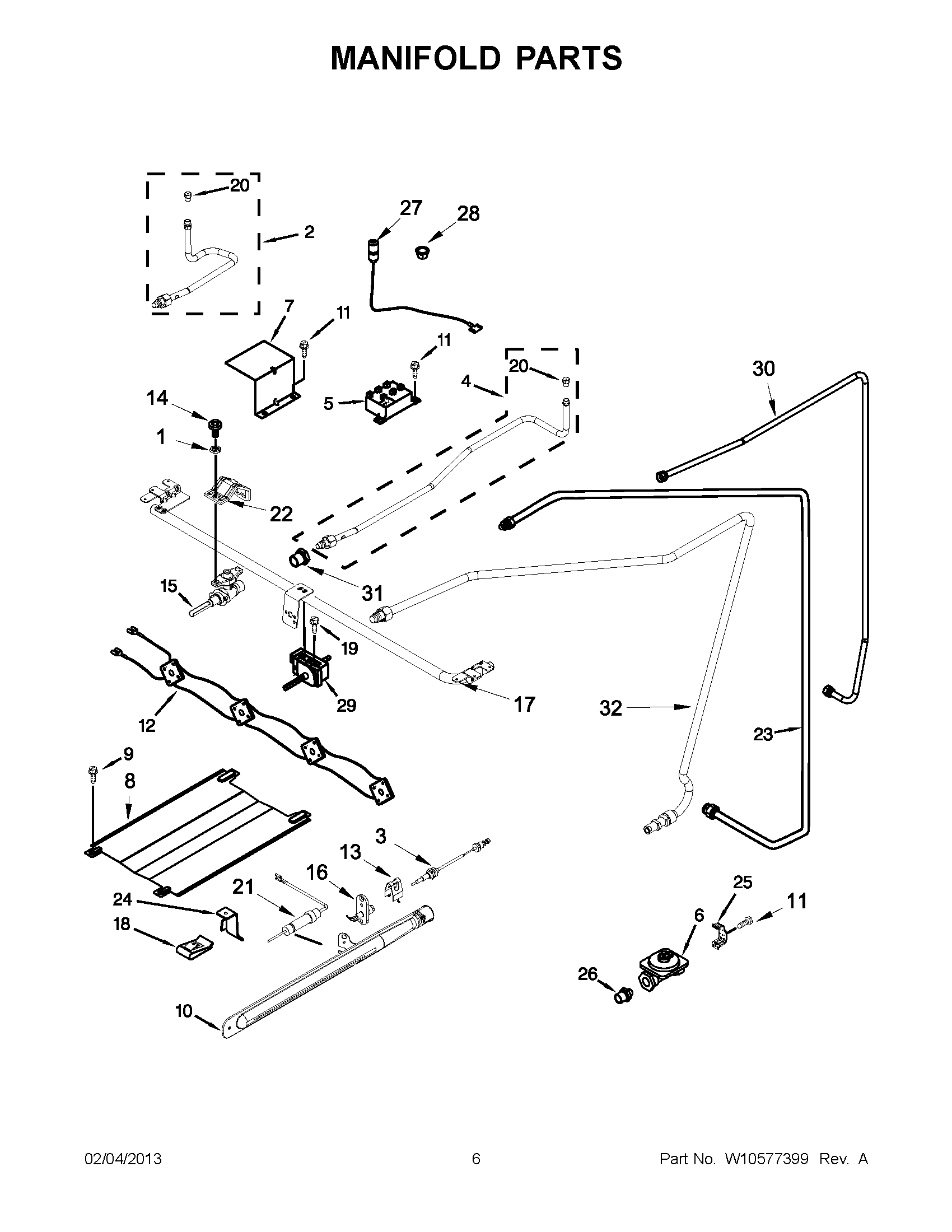

AGG200AAW0 03 – MANIFOLD PARTSadmin2025-04-26T09:30:30+00:00AGG200AAW0 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | MAY W10537441 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | NUT |
| 2 | ASSEMBLY, TUBING (RIGHT FRONT) |
| 2 | VENTURI, FRONT (RF) |
| 3 | MAY W10155906 |
| 4 | VENTURI, REAR |
| 4 | ASSEMBLY, TUBING (LEFT REAR) |
| 5 | MAY W10518414 |
| 6 | MAY 98007462 |
| 7 | MAY 98010823 |
| 8 | MAY W10566543 |
| 9 | SCREW |
| 10 | MAY W10517877 |
| 12 | MAY W10518030 |
| 13 | RETAINER, THERMOCOUPLE |
| 14 | MAY W10146346 |
| 15 | VALVE, BURNER (LF, LR, RF, RR) |
| 16 | MAY W10085400 |
| 17 | MAY W10518322 |
| 18 | U-NUT |
| 19 | SCREW |
| 20 | Orifice (RF, RR, LR) |
| 20 | ORIFICE, NATURAL (7.5K) (RIGHT FRONT, LEFT REAR) |
| 21 | MAY W10525210 |
| 22 | BRKT., VENTURI |
| 23 | TUBING, THERMOSTAT TO PILOT |
| 24 | MAY 98013314 |
| 25 | MAY 98007410 |
| 26 | MAY 98007431 |
| 27 | IGNITOR, TOP (RF, RR, LF) |
| 27 | IGNITOR, TOP (LEFT REAR) |
| 28 | MAY W10278150 |
| 29 | MAY W10503587 |
| 30 | Tubing, Inlet |
| 31 | MAY 98005514 |
| 32 | MAY W10205813 |
