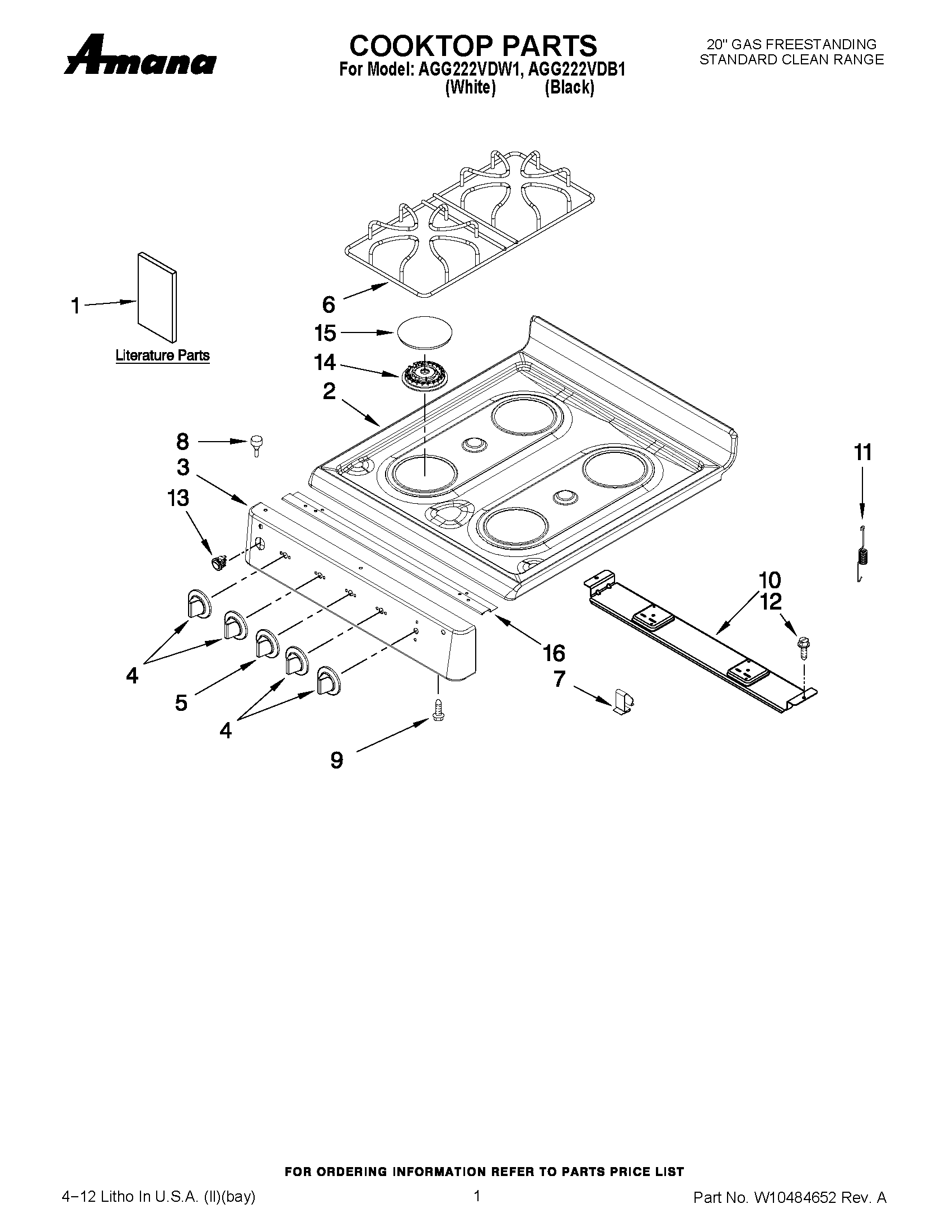

AGG222VDB1 01 – COOKTOP PARTS

AGG222VDB1 01 – COOKTOP PARTS

Written by

in

AGG222VDB1 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10459123
1MAY W10452012
1MAY 98007032
2MAY W10180088
2MAY W10179560
3MAY W10322512
3MAY W10225327
4KNOB, BURNER (BLACK)
4KNOB, BURNER (WHITE)
5MAY 98008320
5KNOB, THERMOSTAT (WHITE)
6GRATE, BURNER (BLACK)
8BUMPER, COOKTOP
9SCREW
10SUPPORT, OVEN BURNER
11CLIP, COOKTOP
12SCREW
13SWITCH, ROCKER (BLACK)
13SWITCH, ROCKER (WHITE)
14BURNER
15Cap, Burner (Black)
16"Z" BRACKET, MANIFOLD
