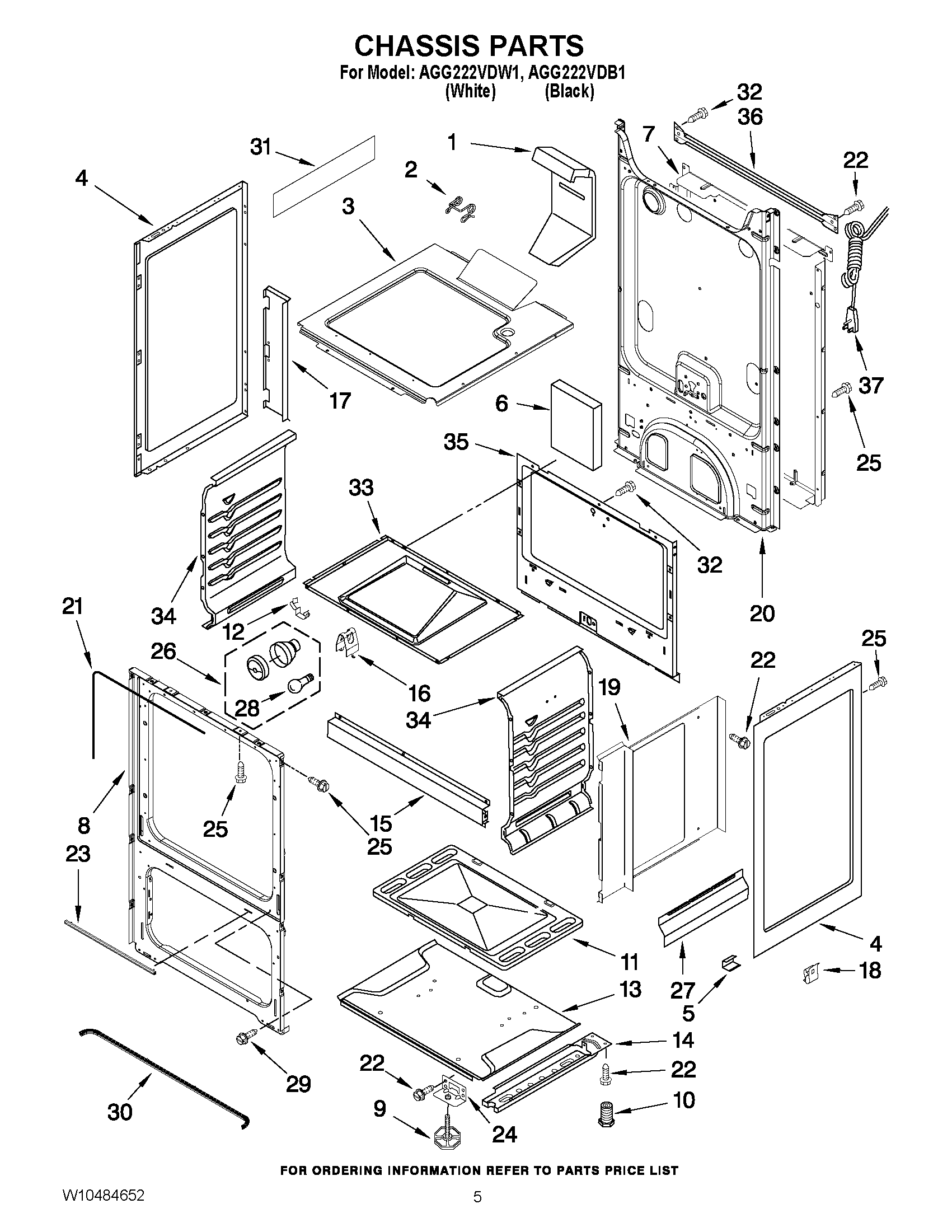

AGG222VDB1 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
NI	INSULATION, TOP
1	BOX, FLUE
2	SPRING, TORSION (FLUE BOX)
3	MAY W10168214
4	PANEL, SIDE (WHITE)
4	MAY 98010059
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY W10165402
8	FRAME, FRONT
9	FOOT, FRONT
10	FOOT, LEVELING
11	MAY 98004450
13	BAFFLE, BASE
14	RAIL, BASE
15	SUPPORT, OVEN BURNER
16	CLIP, THERM BULB
17	CHANNEL SHIELD
18	U-NUT
19	BAFFLE, SIDE
20	MAY 98003944
21	SEAL, OVEN
22	SCREW
23	SEAL, DOOR
24	BASE, FOOT
25	SCREW
26	SOCKET, LIGHT BULB
27	SHIELD, HEAT (LOWER)
28	BULB, LIGHT
29	SCREW (BLACK)
30	MAY W10170594
31	FOIL, SIDE
32	Screw
33	TOP, OVEN
34	SIDE, OVEN (LEFT HAND)
34	SIDE, OVEN (RIGHT HAND)
35	MAY W10180590
36	SUPPORT, REAR
37	MAY W10193475
