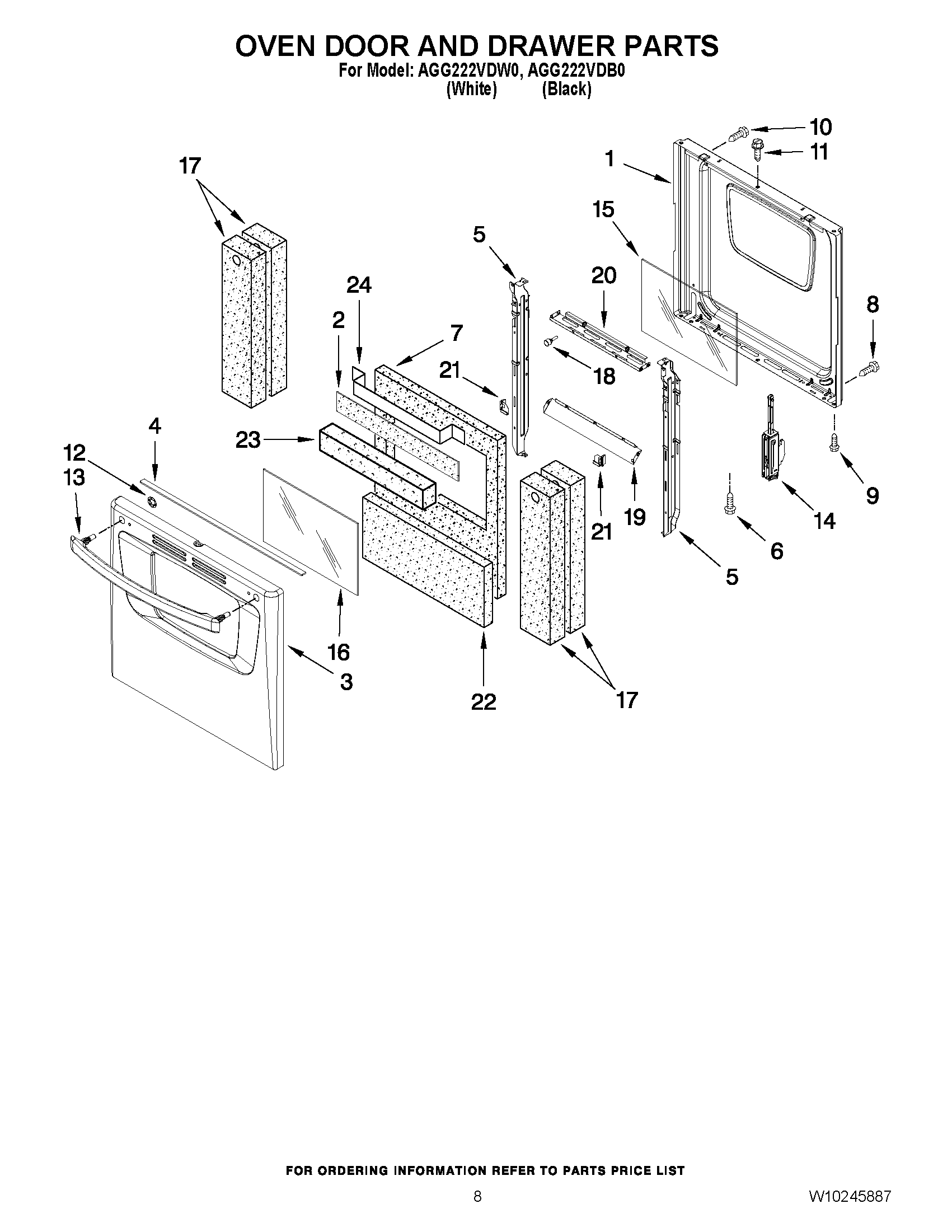

AGG222VDW0 06 – OVEN DOOR AND DRAWER PARTS

AGG222VDW0 06 – OVEN DOOR AND DRAWER PARTS

Written by

in

AGG222VDW0 06 – OVEN DOOR AND DRAWER PARTS

Products

Position	Product
1	LINER, DOOR
2	RETAINER, INSULATION
3	PANEL, OUTER DOOR (WHITE)
3	MAY W10223099
4	SEAL, OVEN DOOR
5	RETAINER (RIGHT HAND)
5	RETAINER (LEFT HAND)
6	SCREW
7	INSULATION, DOOR
8	SCREW
9	SCREW
10	SCREW
11	SCREW (WHITE)
12	NUT, PUSH
13	MAY 98004946
13	HANDLE, DOOR (WHITE)
14	HINGE, OVEN DOOR (YELLOW)
15	GLASS, INNER
16	GLASS, OUTER
17	INSULATION
18	BUMPER
19	RETAINER, INSULATION (BOTTOM)
20	RETAINER, INSULATION (TOP)
21	CLIP, GLASS (RIGHT HAND)
21	CLIP, GLASS (LEFT HAND)
22	INSULATION, DOOR
23	INSULATION, DOOR
24	BRACKET, RETAINER
