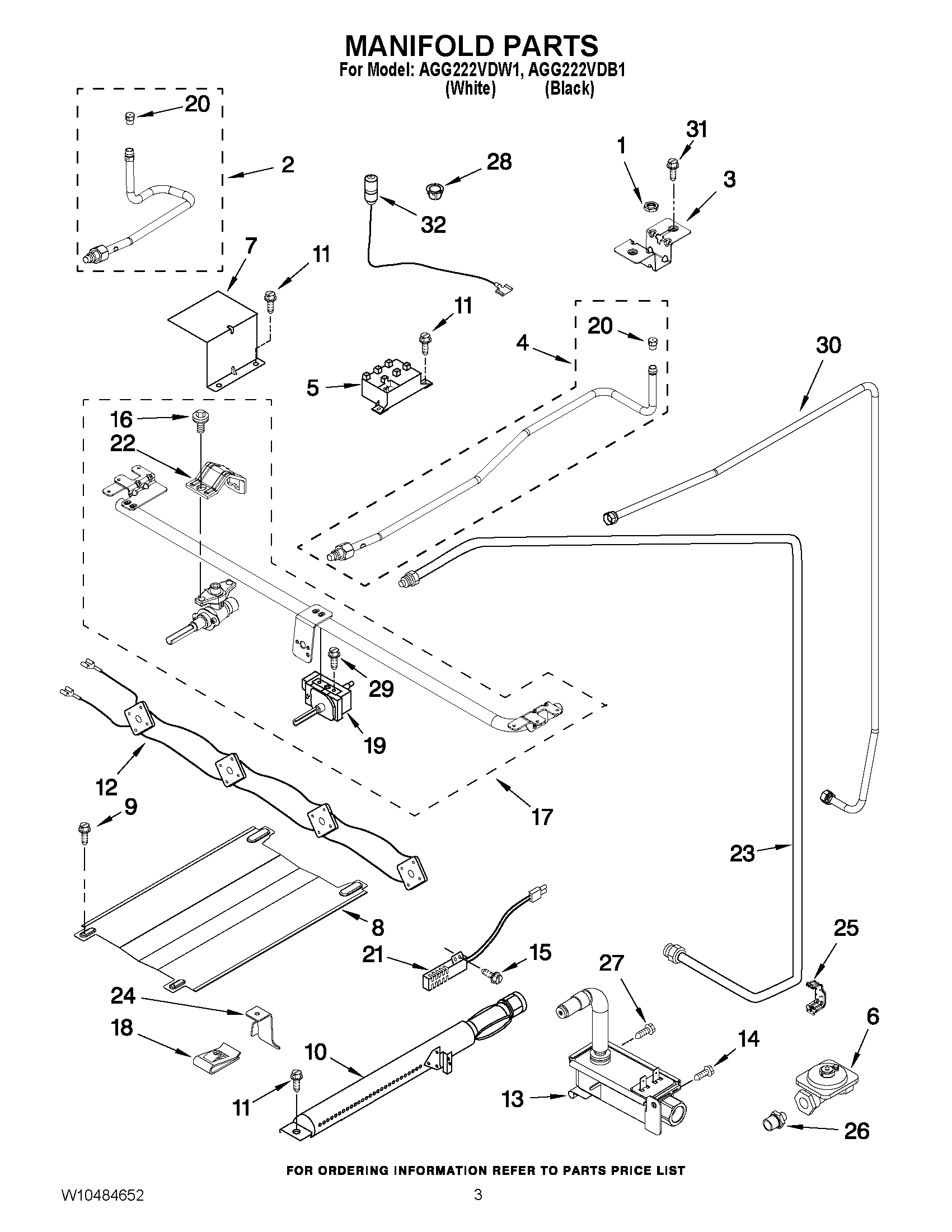

AGG222VDW1 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10207842
1	NUT
2	VENTURI, FRONT (RF)
3	BRKT., VENTURI
4	VENTURI, REAR
5	MAY 6610341
6	MAY W10177394
7	MAY 98010823
8	MAY W10212101
9	SCREW
10	MAY 98012138
12	MAY W10361496
13	MAY W10205816
15	MAY 98005659
17	ASSEMBLY, MANIFOLD
18	U-NUT
19	MAY W10159016
20	Orifice (RF, RR, LR)
21	IGNITOR, OVEN PILOT)
22	BRACKET, VALVE
23	MAY W10177392
24	MAY 98013314
25	MAY 98007410
26	MAY 98007431
27	MAY 98013634
28	MAY W10278150
29	SCREW
30	Tubing, Inlet
31	SCREW
32	IGNITOR, TOP (RF, RR, LF)
32	IGNITOR, TOP (LEFT REAR)
