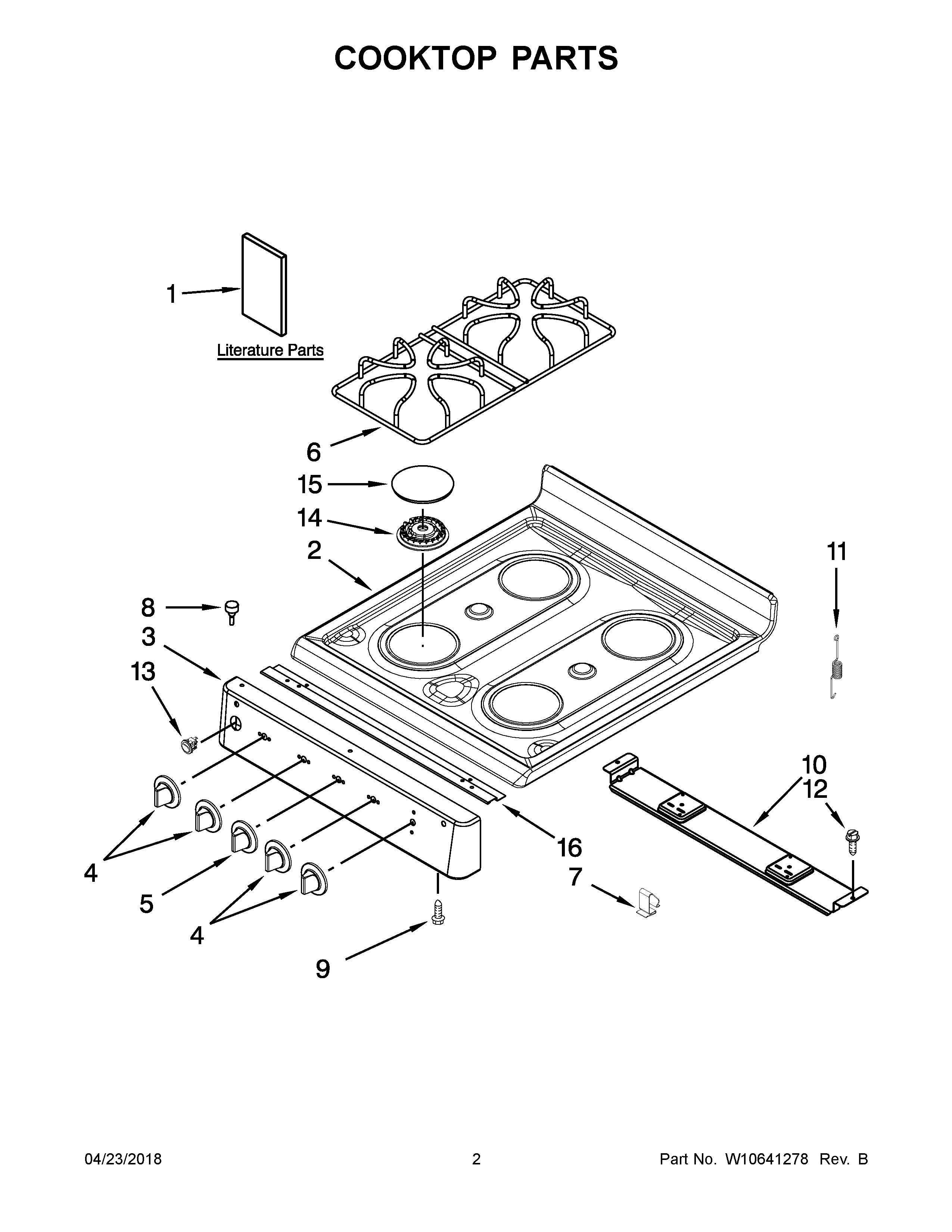

AGG222VDW2 02 – COOKTOP PARTS

AGG222VDW2 02 – COOKTOP PARTS

Written by

in

AGG222VDW2 02 – COOKTOP PARTS

Products

PositionProduct
NIWIRE TIE, INSULATION
NIMAY 6610473
NILINER (NOT A SERVICEABLE PART)
NIMAY W10173886
NICLIP, HARNESS
NIMAY W10361496
1AMAY W10452012
1MAY W10459123
1CTIPS, SAFE COOKING (ENGLISH)
1BMAY 98007032
2MAY W10179560
3MAY W10225327
4MAY W10483313
5KNOB, THERMOSTAT (WHITE)
6GRATE, BURNER (BLACK)
8BUMPER, COOKTOP
9SCREW
10SUPPORT, OVEN BURNER
11CLIP, COOKTOP
12SCREW
13SWITCH, ROCKER (WHITE)
14BURNER
15Cap, Burner (Black)
16"Z" BRACKET, MANIFOLD
