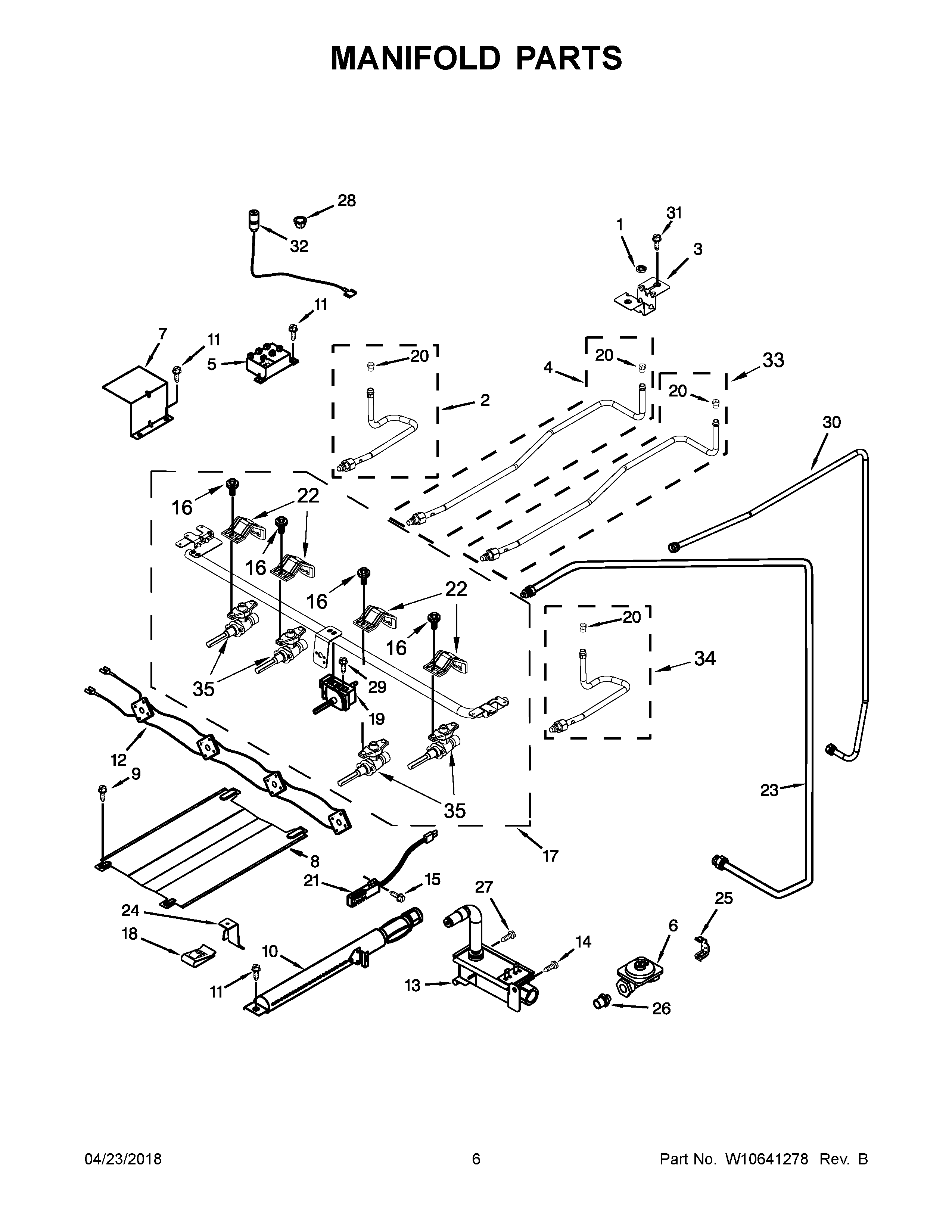

AGG222VDW2 04 – MANIFOLD PARTSadmin2025-04-26T11:32:37+00:00AGG222VDW2 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | MAY W10207842 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | NUT |
| 2 | VENTURI, FRONT (RF) |
| 3 | BRKT., VENTURI |
| 4 | VENTURI, REAR |
| 5 | MAY 6610341 |
| 6 | MAY W10177394 |
| 7 | MAY 98010823 |
| 8 | MAY W10212101 |
| 9 | SCREW |
| 10 | MAY 98012138 |
| 12 | MAY W10361496 |
| 13 | MAY W10205816 |
| 15 | MAY 98005659 |
| 17 | MANIFOLD ASSEMBLY |
| 18 | U-NUT |
| 19 | THERMOSTAT, OVEN |
| 20A | ORIFICE, NATURAL (7.5K) (RIGHT FRONT, LEFT REAR) |
| 20 | Orifice (RF, RR, LR) |
| 21 | Igniter, Oven Oven Pilot) |
| 22 | BRACKET, VALVE |
| 23 | MAY W10177392 |
| 24 | MAY 98013314 |
| 25 | MAY 98007410 |
| 26 | MAY 98007431 |
| 27 | MAY 98013634 |
| 28 | MAY W10278150 |
| 29 | SCREW |
| 30 | Tubing, Inlet |
| 31 | SCREW |
| 32 | IGNITOR, TOP (RF, RR, LF) |
| 32A | IGNITOR, TOP (LEFT REAR) |
| 33 | ASSEMBLY, TUBING (LEFT REAR) |
| 34 | ASSEMBLY, TUBING (RIGHT FRONT) |
| 35 | VALVE, BURNER (LF, LR, RF, RR) |
