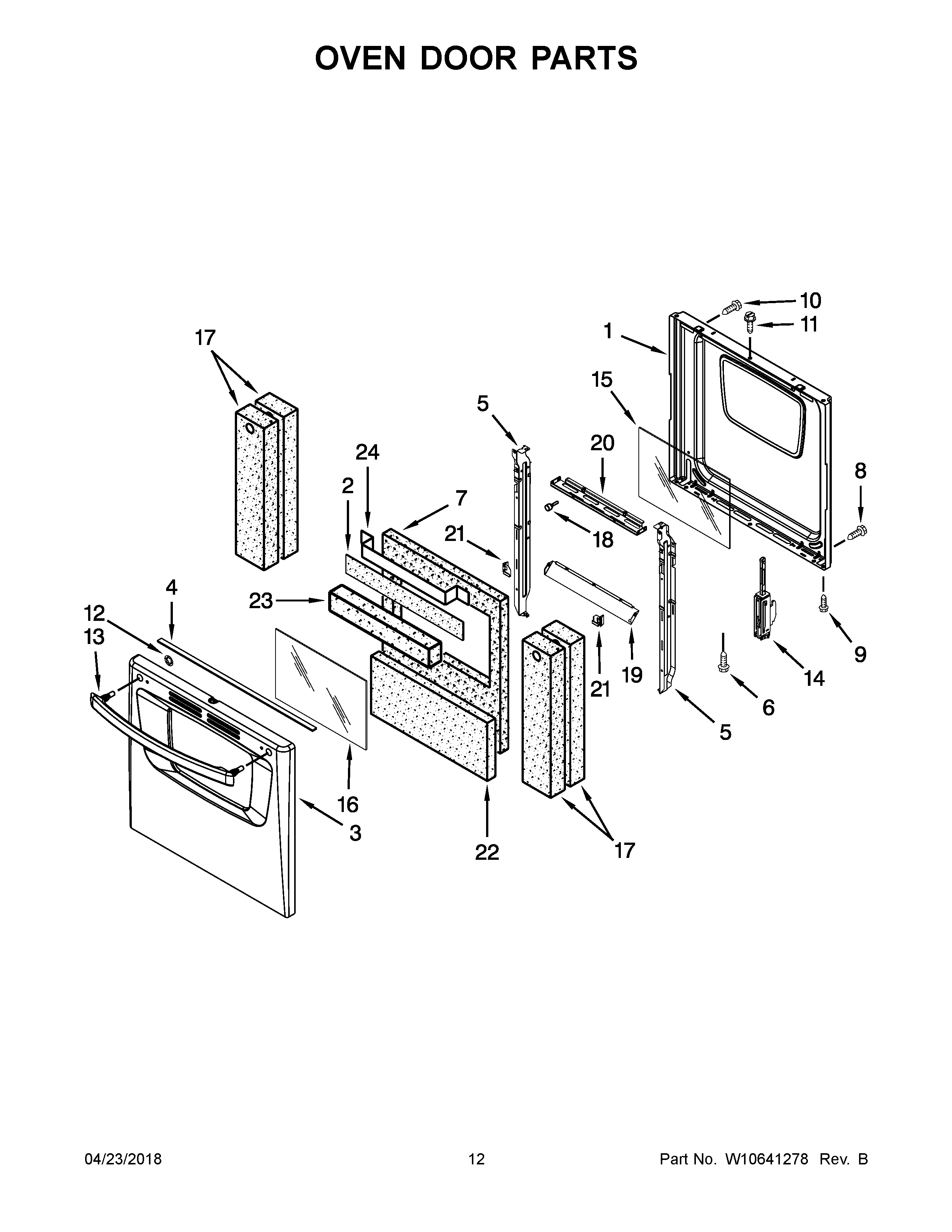

AGG222VDW2 07 – OVEN DOOR PARTS

AGG222VDW2 07 – OVEN DOOR PARTS

Written by

in

AGG222VDW2 07 – OVEN DOOR PARTS

Products

PositionProduct
1LINER, DOOR
2RETAINER, UPPER INSULATION
3PANEL, OUTER DOOR (WHITE)
4SEAL, OVEN
5RETAINER (RIGHT HAND)
5ARETAINER (LEFT HAND)
6SCREW
7INSULATION, DOOR
8SCREW
9SCREW
10SCREW
11SCREW (WHITE)
12NUT, PUSH
13AMAY 98004946
13HANDLE, DOOR (WHITE)
14HINGE, OVEN DOOR (YELLOW)
15GLASS, INNER
16GLASS, OUTER
17INSULATION
18BUMPER
19RETAINER, INSULATION (BOTTOM)
20RETAINER, INSULATION (TOP)
21ACLIP, GLASS (RIGHT HAND)
21CLIP, GLASS (LEFT HAND)
22INSULATION, DOOR
23INSULATION, DOOR
24BRACKET, RETAINER
