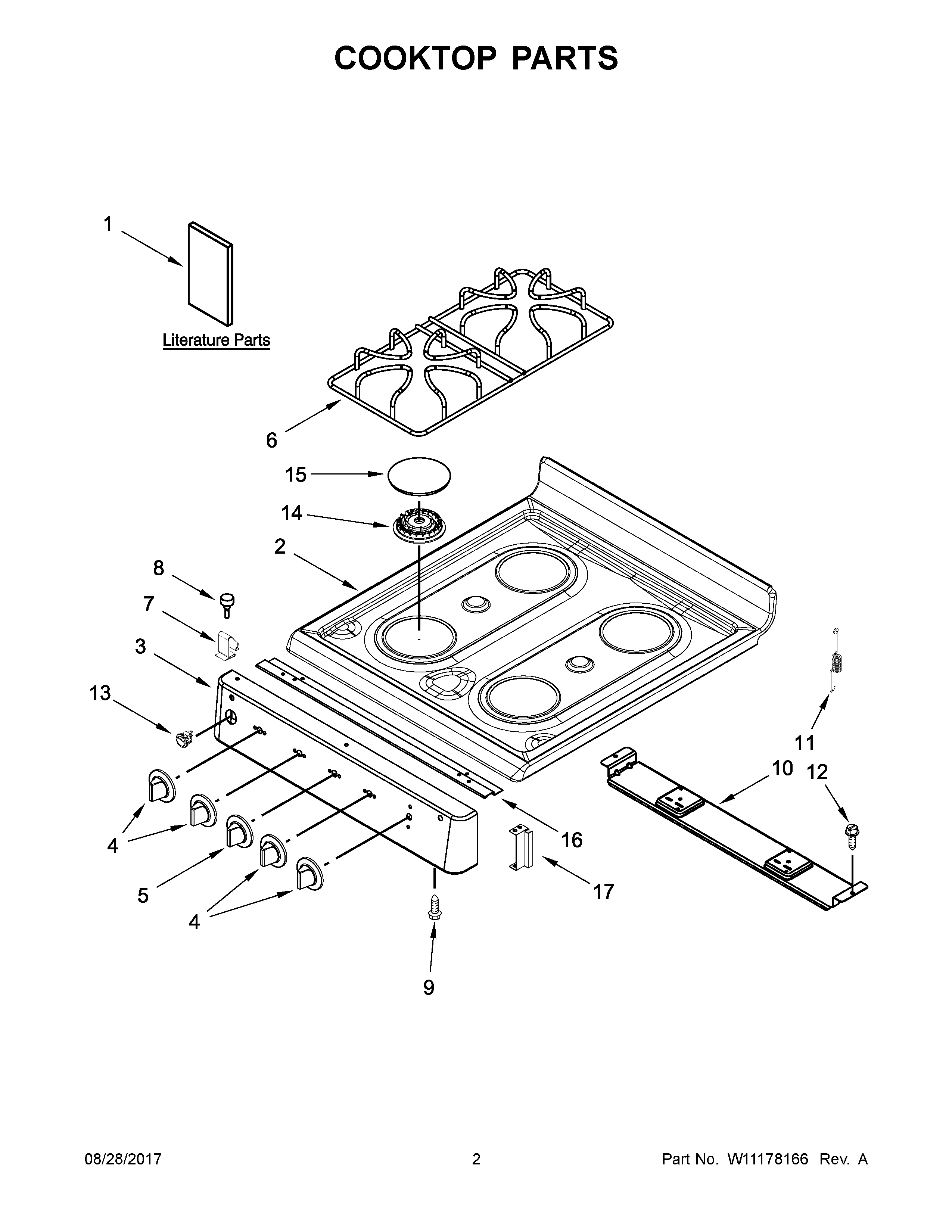

AGG222VDW3 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY 3391018
NIMAY W10361496
NIMAY 6610473
NILINER (NOT A SERVICEABLE PART)
NIPAINT, TOUCH-UP (1/2OZ.) (BUSHING, SNAP (2))
NICLIP, HARNESS
NIMAY W10914404
NIWIRE TIE, INSULATION
1CTIPS, SAFE COOKING (ENGLISH)
1BMAY 98007032
1AMAY W10452012
1MAY W10459123
2MAY W10179560
3MAY W10225327
4MAY W10483313
5KNOB, THERMOSTAT (WHITE)
6GRATE, BURNER (BLACK)
8BUMPER, COOKTOP
9SCREW
10SUPPORT, OVEN BURNER
11CLIP, COOKTOP
12SCREW
13SWITCH, ROCKER (WHITE)
14BURNER
15Cap, Burner (Black)
16"Z" BRACKET, MANIFOLD
17ABRACKET, SUPPORT RIGHT
17BRACKET, SUPPORT LEFT
