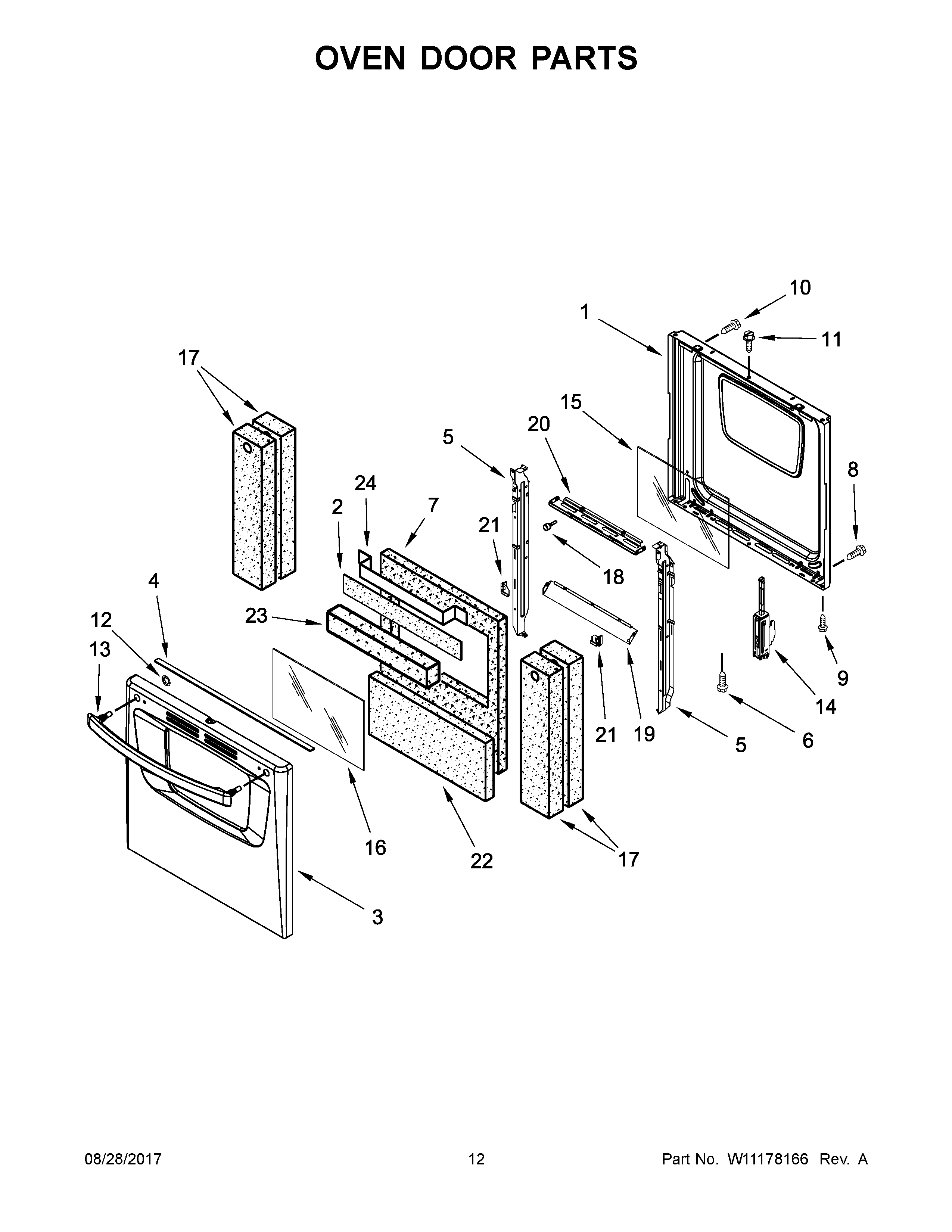

AGG222VDW3 07 – OVEN DOOR PARTS

AGG222VDW3 07 – OVEN DOOR PARTS

Written by

in

AGG222VDW3 07 – OVEN DOOR PARTS

Products

Position	Product
1	LINER, DOOR
2	RETAINER, UPPER INSULATION
3	PANEL, OUTER DOOR (WHITE)
4	SEAL, OVEN DOOR
5A	RETAINER (LEFT HAND)
5	RETAINER (RIGHT HAND)
6	SCREW
7	INSULATION, DOOR
8	SCREW
9	SCREW
10	SCREW
11	SCREW (WHITE)
12	NUT, PUSH
13	HANDLE, DOOR (WHITE)
14	HINGE, OVEN DOOR (YELLOW)
15	GLASS, INNER
16	GLASS, OUTER
17	INSULATION
18	BUMPER
19	RETAINER, INSULATION (BOTTOM)
20	RETAINER, INSULATION (TOP)
21A	CLIP, GLASS (RIGHT HAND)
21	CLIP, GLASS (LEFT HAND)
22	INSULATION, DOOR
23	INSULATION, DOOR
24	BRACKET, RETAINER
