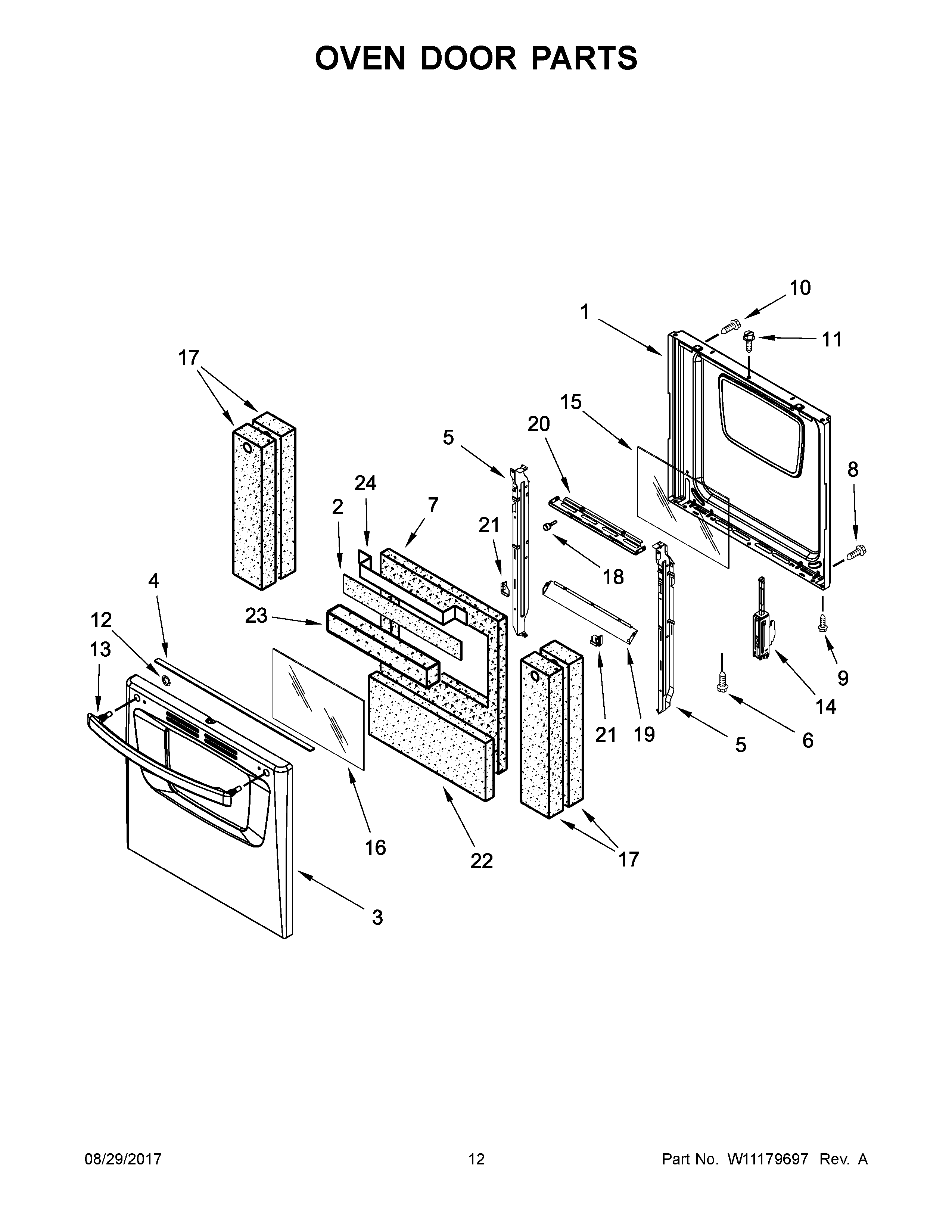

AGG222VDW4 07 – OVEN DOOR PARTS

Products

PositionProduct
1LINER, DOOR
2RETAINER, UPPER INSULATION
3PANEL, OUTER DOOR (WHITE)
4SEAL, OVEN DOOR
5RETAINER (RIGHT HAND)
5ARETAINER (LEFT HAND)
6SCREW
7INSULATION, DOOR
8SCREW
9SCREW (BLACK)
10SCREW
11SCREW (WHITE)
12NUT, PUSH
13HANDLE, DOOR (WHITE)
14HINGE, OVEN DOOR (YELLOW)
15GLASS, INNER
16GLASS, OUTER
17INSULATION
18BUMPER
19RETAINER, INSULATION (BOTTOM)
20RETAINER, INSULATION (TOP)
21ACLIP, GLASS (RIGHT HAND)
21CLIP, GLASS (LEFT HAND)
22INSULATION, DOOR
23INSULATION, DOOR
24BRACKET, RETAINER
