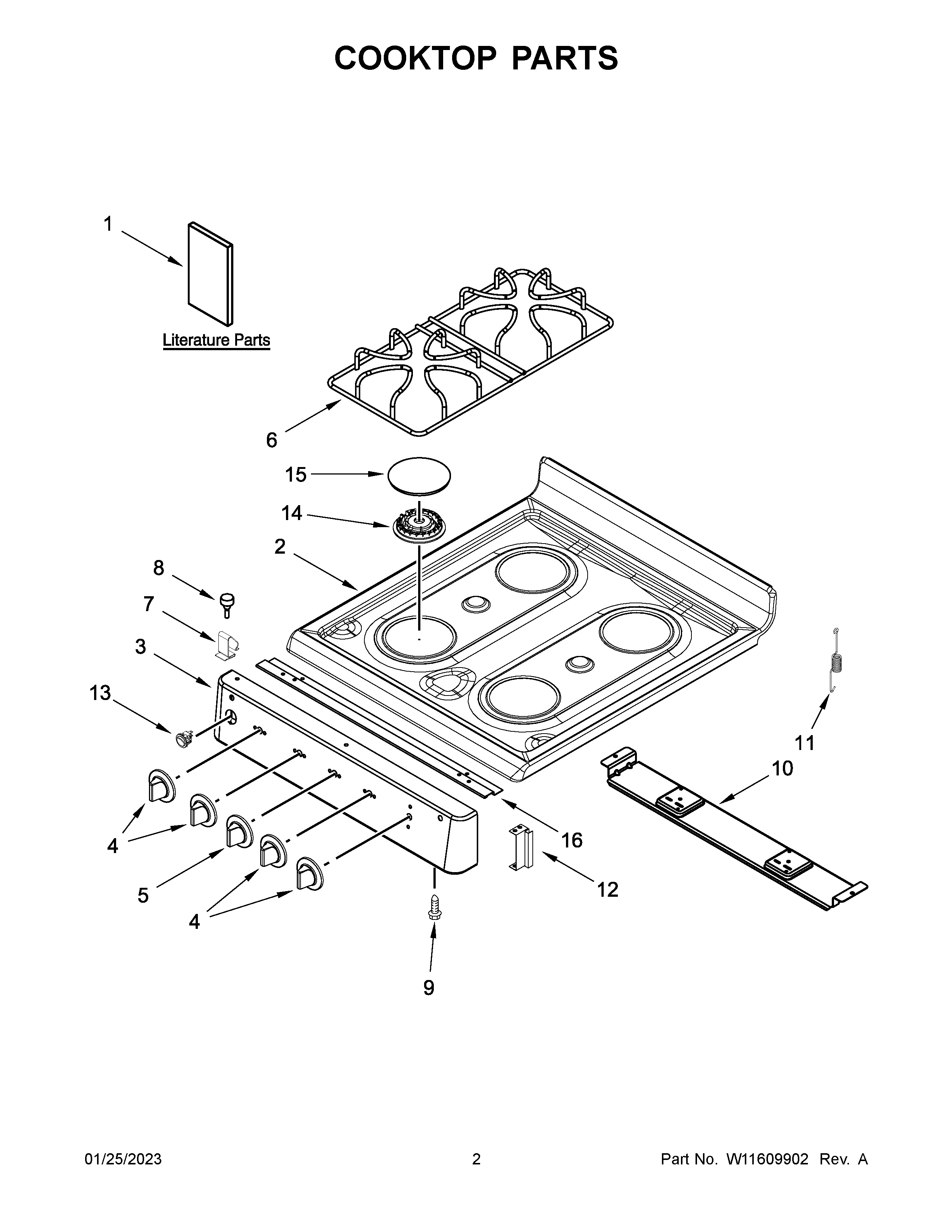

AGG222VDW6 02 – COOKTOP PARTS
Written by
in
AGG222VDW6 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11562248 Whirlpool Wire Harness
NI
98004294 Whirlpool Insulation Wire
NI
HARNESS, MAIN
NI
WP3391018 Whirlpool Wire Tie
NI
98015022 Whirlpool Bushing Assembly
NI
3196696 Whirlpool Clip
NI
3184020 Whirlpool Oven Wire
1
INSTALLATION INSTRUCTIONS
1A
USE AND CARE GUIDE
1B
SHEET, TECH
1C
Safer Cooking Tips
2
WPW10179560 Whirlpool Cooktop
3
PANEL, MANIFOLD (WHITE)
4
W11620107 Whirlpool Knob
5
WPW10483330 Whirlpool Knob
6
WPW10180089 Whirlpool Burner Grate
8
W10207167 Whirlpool Bumper
9
W10837731 Whirlpool Screw Assembly
10
98012912 Whirlpool Support
11
CLIP, COOKTOP
12A
BRACKET, SUPPORT RIGHT
12
BRACKET, SUPPORT LEFT
13
SWITCH, ROCKER (WHITE)
14
WPW10243396 Whirlpool Burner Top
15
WP98017461 Whirlpool Burner Cap
16
Z BRACKET, MANIFOLD
←
