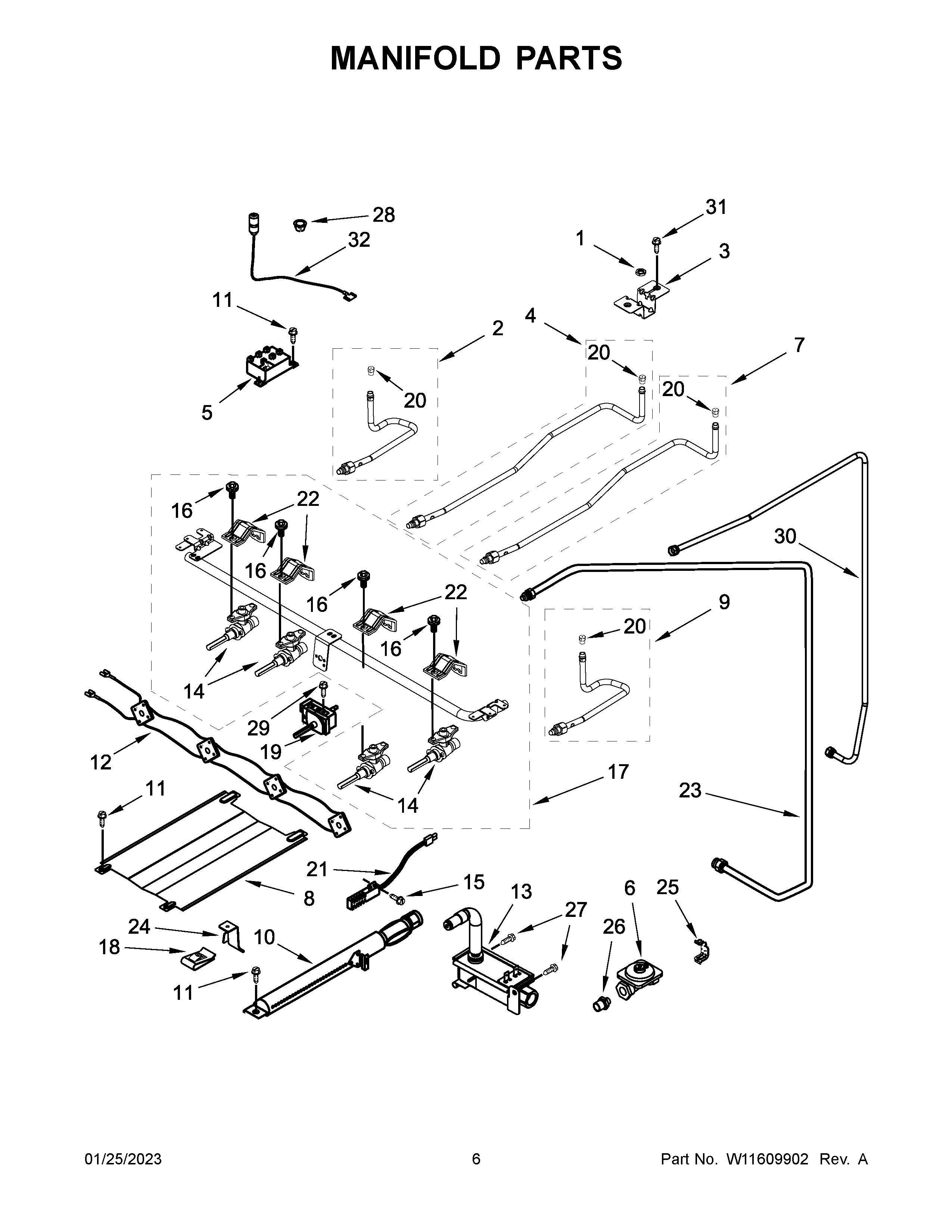

AGG222VDW6 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11672513 Whirlpool Range Orifice Spud
1	W10610297 Whirlpool Nut
2	WP98017582 Whirlpool Venturi
3	W11715913 Whirlpool Mounting Bracket
4	WP98017359 Whirlpool Venturi Assembly
5	W11590249 Whirlpool Spark Module
6	W10177394 Whirlpool Regulator
7	WPW10110342 Whirlpool Venturi
8	W10212101 Whirlpool Burner Baffle
9	W11661107 Whirlpool Range Venturi
10	WP98012138 Whirlpool Oven Burner
11	W10837731 Whirlpool Screw Assembly
12	W11562248 Whirlpool Wire Harness
13	WPW10205816 Whirlpool Gas Valve
14	W11620105 Whirlpool Gas Valve
15	W11676351 Whirlpool Screw
16	98017517 Whirlpool Oven Screw
17	MANIFOLD ASSEMBLY
18	98009179 Whirlpool Oven Nut
19	W11673272 Whirlpool Thermostat Fix
20A	WP98017587 Whirlpool Orifice
20	WP98017348 Whirlpool Orifice
21	IGNTR-OVEN
22	98017516 Whirlpool Mounting Bracket
23	W10177392 Whirlpool Gas Tubing
24	98013314 Whirlpool Oven Support Bracket
25	98007410 Whirlpool Oven Mounting Bracket
26	98007431 Whirlpool Oven Fitting
27	98013634 Whirlpool Oven Screw
28	WPW10278150 Whirlpool Clip Assembly
29	WP98008545 Whirlpool Screw
30	WP98017171 Whirlpool Gas Tubing
31	W10837674 Whirlpool Screw
32A	WPW10209657 Whirlpool Oven Surface Igniter
32	WPW10209656 Whirlpool Surface Ignitor
