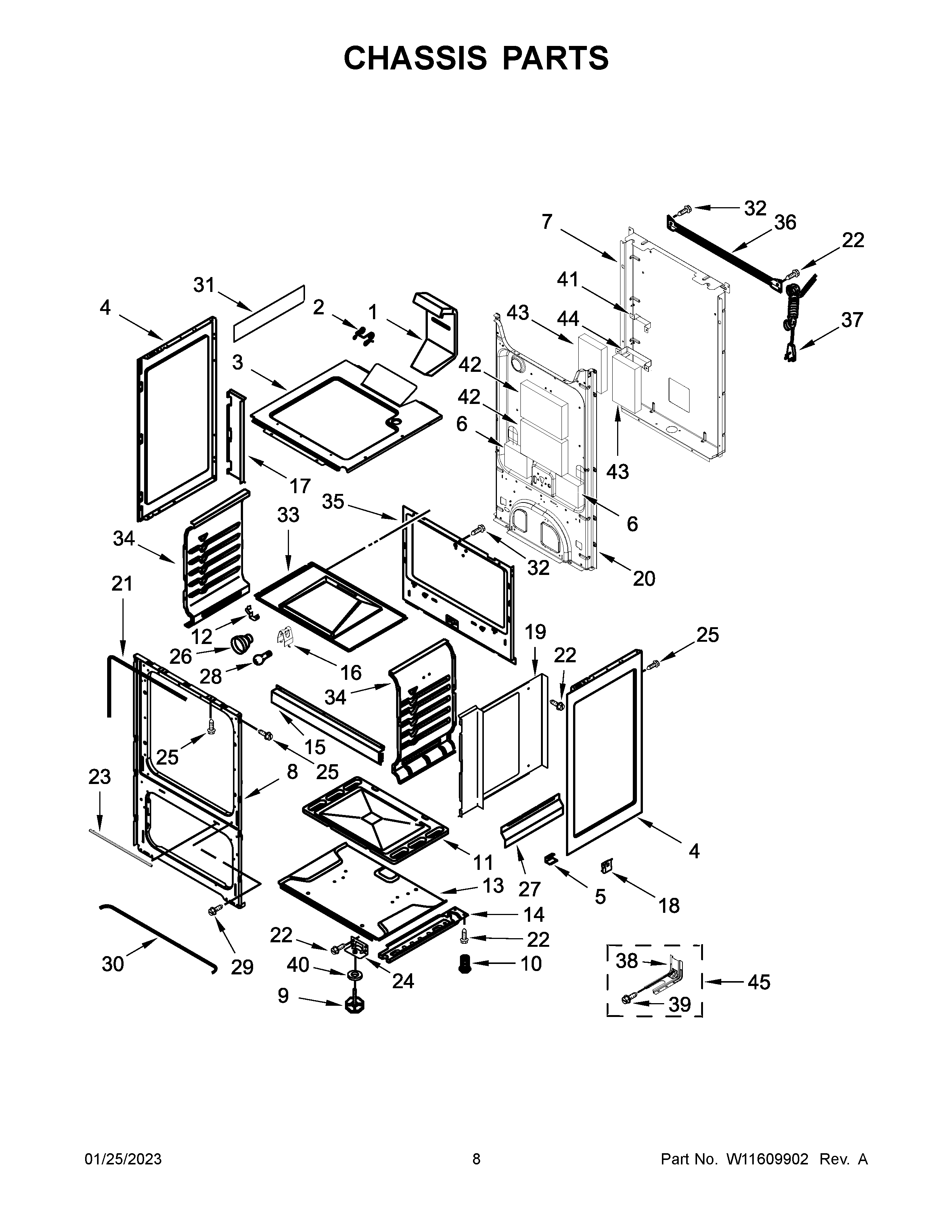

AGG222VDW6 05 – CHASSIS PARTS

Products

PositionProduct
NIW11684895 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11684784 Whirlpool Insulation
1WPW10116396 Whirlpool Flue Box
298013690 Whirlpool Clip
3Box, Burner
4W11501467 Whirlpool Side Panel
5CLIP, OVEN BOTTON
6COUNTER WEIGHT
7W10165402 Whirlpool Rear Cover
8FRAME, FRONT
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
1198004450 Whirlpool Oven Bottom
1398003945 Whirlpool Burner Baffle
1498003830 Whirlpool Rail Base
1598012912 Whirlpool Support
1698005642 Whirlpool Clip
1798006715 Whirlpool Channel Assembly
1898009179 Whirlpool Oven Nut
19Baffle, Side (2)
2098003944 Whirlpool Rear Cover
21W11522387 Whirlpool Door Gasket
22W10837731 Whirlpool Screw Assembly
23SEAL, DOOR
2498007126 Whirlpool Oven Stand Bracket
25SCREW
26W10856866 Whirlpool Light Socket
2798007191 Whirlpool Oven Heat Shield
28W10888179 Whirlpool Light Bulb Assembly
29WP98008545 Whirlpool Screw
30W10555328 Whirlpool Door Gasket
31ALUMINUM FOIL
32Screw
3398004448 Whirlpool Burner Box
3498004452 Whirlpool Oven Side
34A98004451 Whirlpool Oven Side Panel
35W10180590 Whirlpool Rear Cover
3698010054 Whirlpool Oven Support
37W10196633 Whirlpool Power Cord
38WPW10613666 Whirlpool Bracket
39SCREW, ANTI-TIP KIT
4098007193 Whirlpool Oven Washer
41BRICK SUPPORT, UPPER
42COUNTERWEIGHT (BLACK AND WHITE MODELS)
43Counterweight
44SUPPORT, BRICK
45WPW10477747 Whirlpool Anchor Tip
