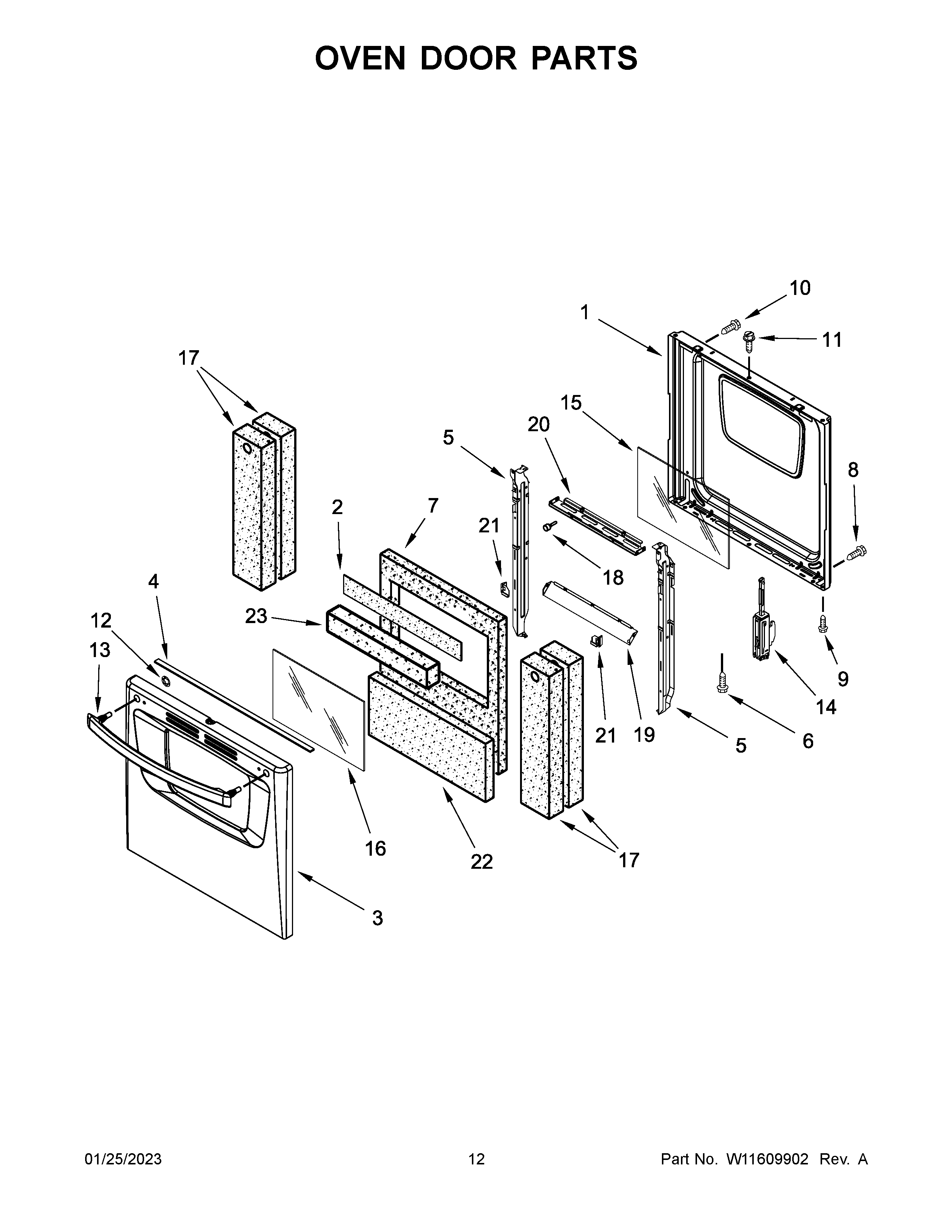

AGG222VDW6 07 – OVEN DOOR PARTS

Products

Position	Product
1	LINER, DOOR
2	RETAINER, UPPER INSULATION
3	PANEL, OVEN DOOR (WHITE)
4	SEAL, DOOR
5A	98004629 Whirlpool Oven Retainer
5	98004564 Whirlpool Oven Retainer
6	WP59002061 Whirlpool Microwave Screw
7	W11688807 Whirlpool Insulation
8	W11206744 Whirlpool Screw
9	WP3400832 Whirlpool Screw
10	SCREW
11	3196166 Whirlpool Screw
12	WP98004650 Whirlpool Nut
13	WP98004947 Whirlpool Door Handle
14	98017873 Whirlpool Oven Door Hinge
15	WPW10201296 Whirlpool Door Glass
16	WPW10168624 Whirlpool Door Glass
17	W11688783 Whirlpool Insulation Assembly
18	98004723 Whirlpool Oven Bumper
19	98012903 Whirlpool Oven Retainer
20	98004981 Whirlpool Oven Retainer
21A	98004953 Whirlpool Clip
21	98004952 Whirlpool Oven Clip
22	W11688579 Whirlpool Insulation
23	INSULATION, DOOR
