AGM199 Gas Valve and Igniter

AGM199 Gas Valve and Igniter

Written by

in

AGM199 Gas Valve and Igniter

Products

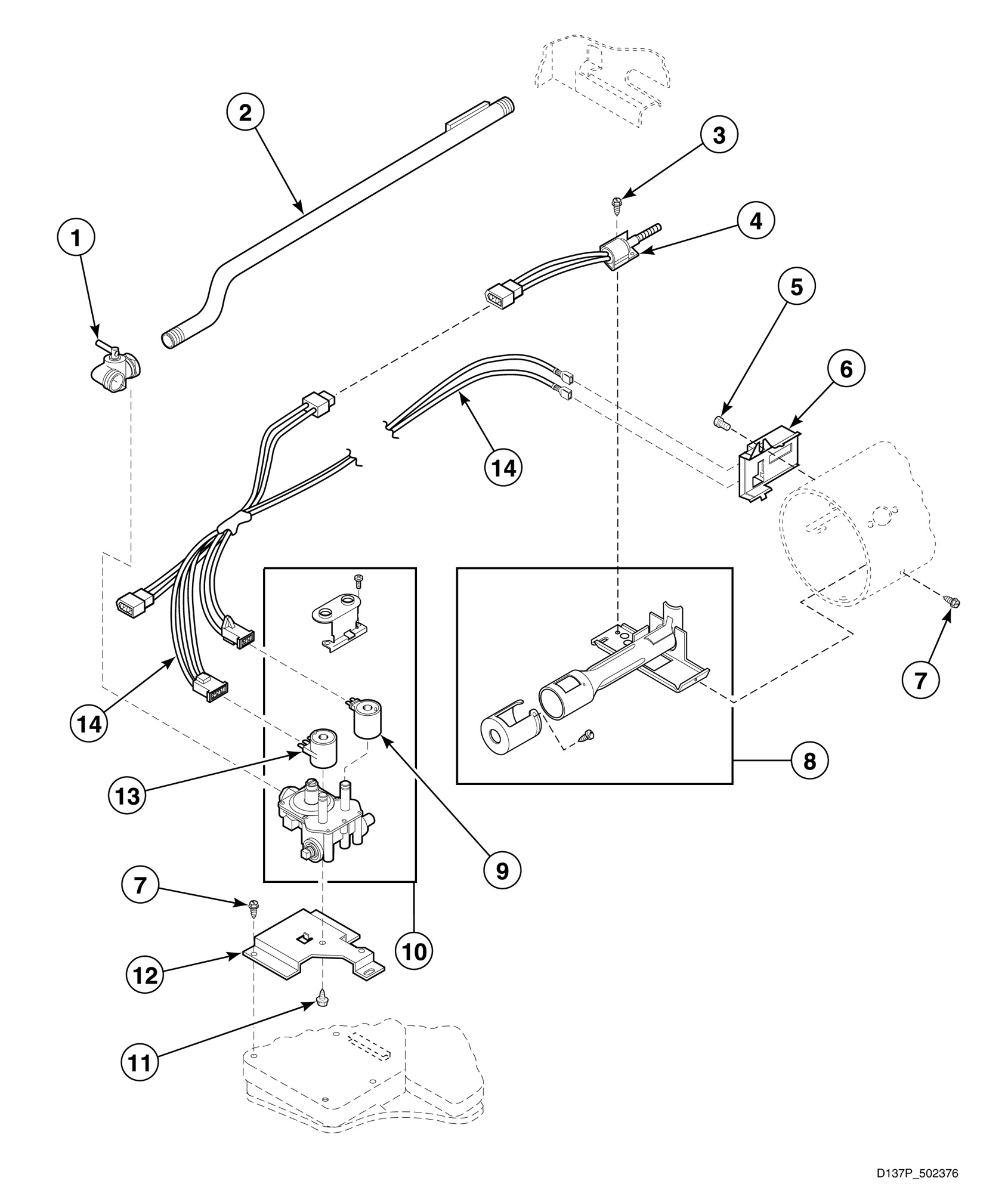

PositionProduct
NAL.P. Conversion Kit (Comment: Used to convert dryers from Natural Gas (N.G.) or Mixed Gas to Liquid Petroleum Gas (L.P.))
NAN.G. Conversion Kit (Comment: Used to convert dryers from L.P. to N.G. or Mixed Gas)
1Elbow Shut-Off Valve
2Lead-In Pipe Assembly
3Screw
4Igniter and Bracket Assembly
5Screw
6Sensor
7Screw
8Burner Assembly
9Secondary Coil
10Gas Valve Assembly (Comment: N.G. or Mixed Gas, 120 Volt/60 Hertz)
11Screw
12Gas Valve Mounting Bracket
13Booster and Holding Coil
14Gas Valve Wire Harness Assembly
