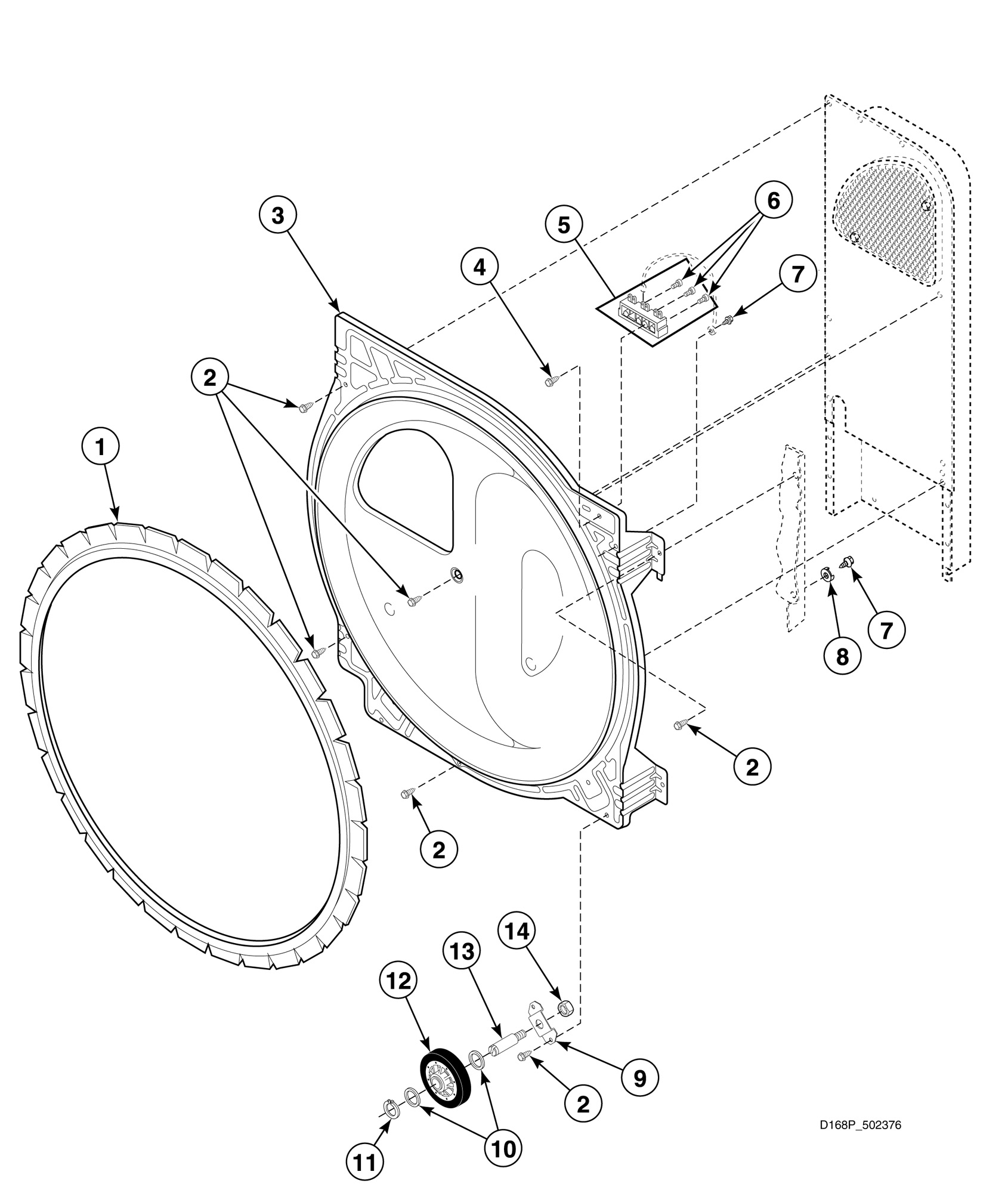

AGM199 Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

Written by

Products

Position	Product
NA	Adhesive (Comment: For cylinder seal)
1	Cylinder Seal Assembly
2	Screw
3	Rear Bulkhead Assembly (Comment: Includes item 1)
4	Screw
5	NOT ON YOUR MODEL
6	Screw
7	Screw
8	Washer
9	Cylinder Roller Bracket
10	Washer
11	Retaining Ring
12	Cylinder Roller
13	Shaft
14	Nut
