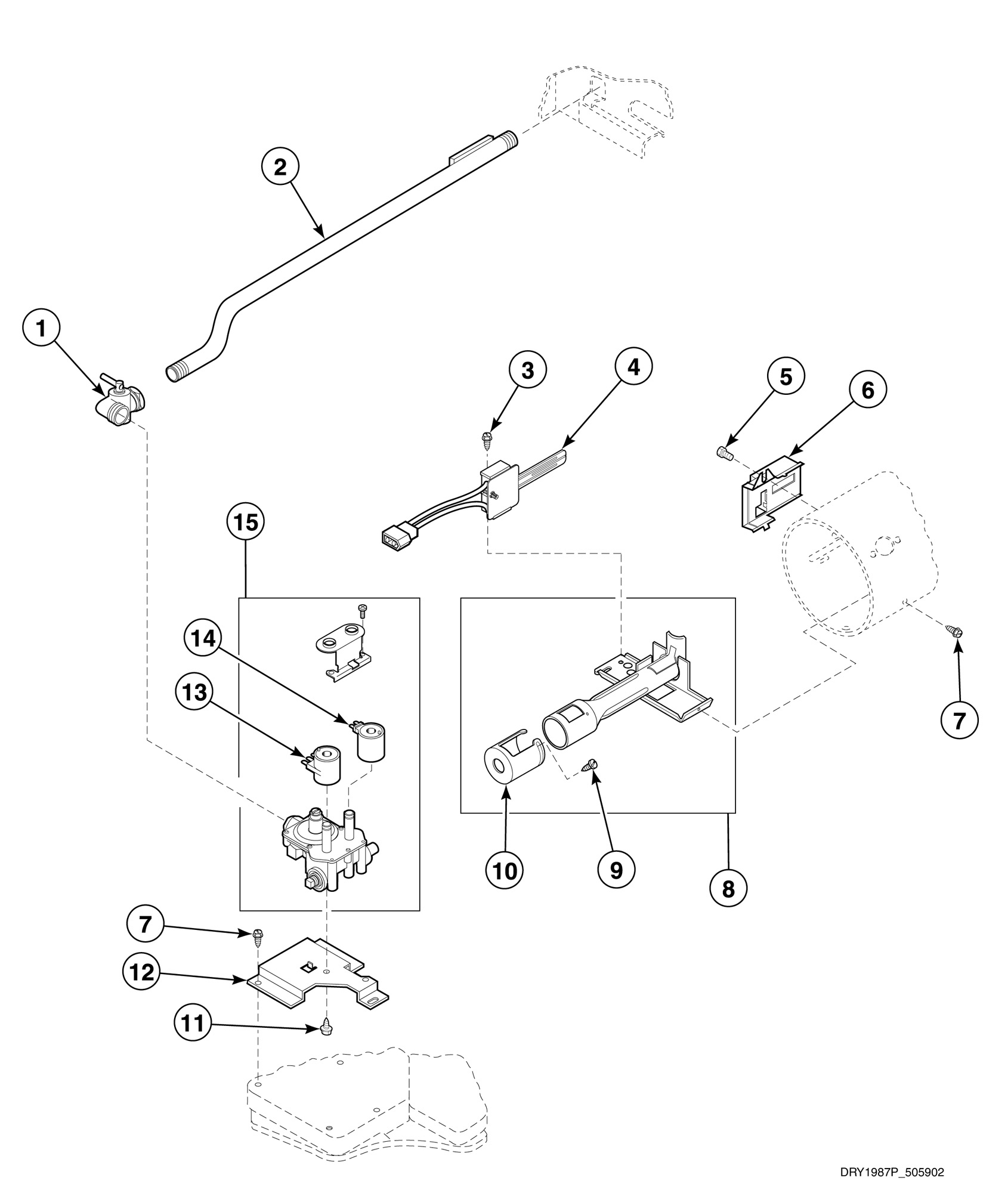

AGM339 Gas Valve and Igniter

Products

Position	Product
1	Elbow Shut-Off Valve
3	Screw
4	Igniter and Bracket Assembly
5	Screw
6	Sensor
7	Screw
8	Burner Assembly
10	Wire Harness Assembly
11	Screw
12	Gas Valve Mounting Bracket
13	Booster and Holding Coil
14	Secondary Coil
15	Gas Valve Assembly (Comment: N.G. or Mixed Gas, 120 Volt/60 Hertz)
