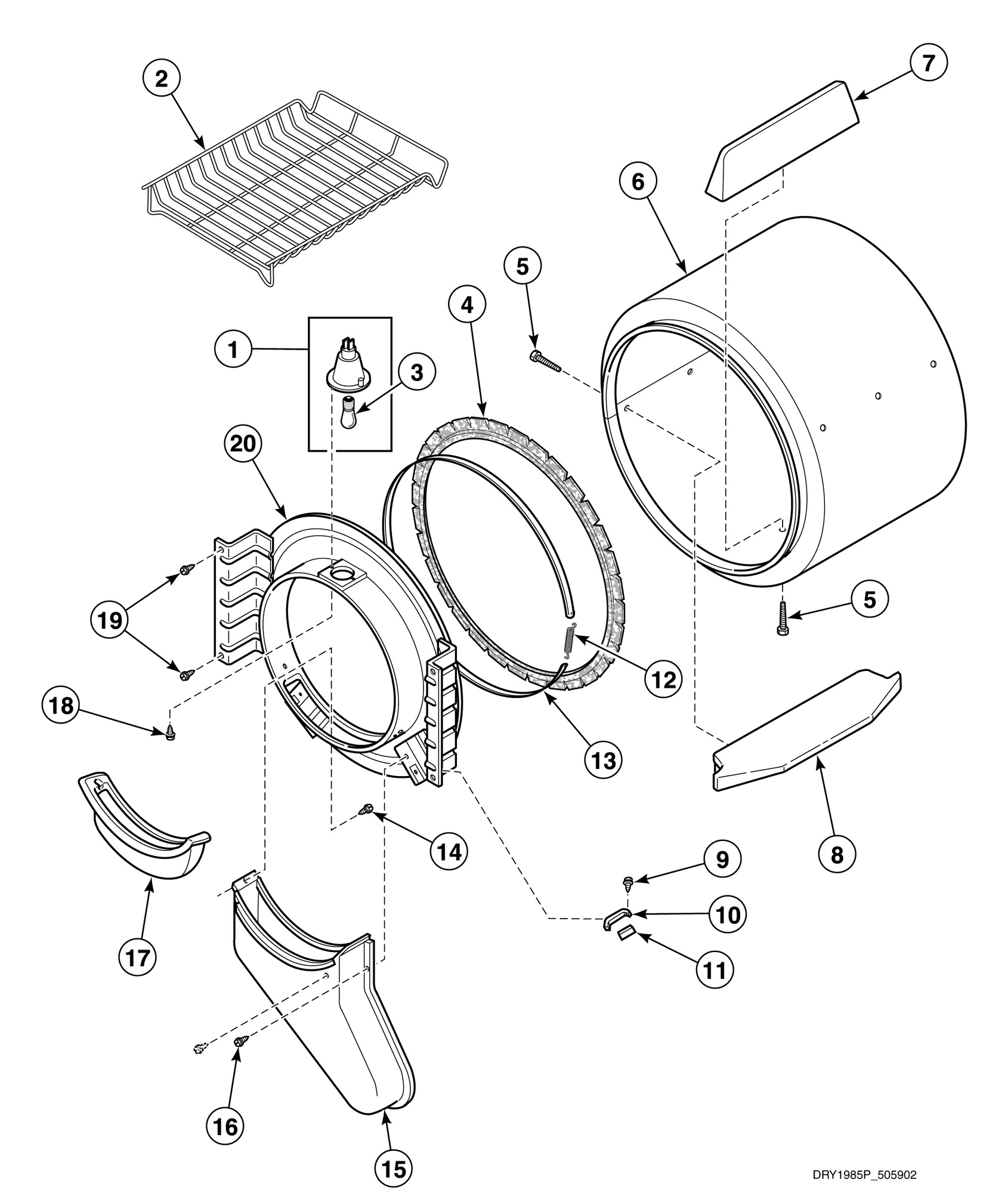

AGM359 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Products

PositionProduct
2NOT ON YOUR MODEL
3Drum Light Lamp (Comment: Use with 60953P Cylinder Light Assembly)
4Seal Assembly
5Screw
6Cylinder Assembly (Comment: Includes baffles)
7Cylinder Baffle (Comment: Short, 2 required)
8Cylinder Baffle (Comment: Extended, 1 required)
10Cylinder Glide
11Thin Pad
12Spring
13Seal Strap
14Screw
15Air Duct Assembly
16Screw
17Lint Filter
18Screw
19Screw
20Wire Harness Assembly
