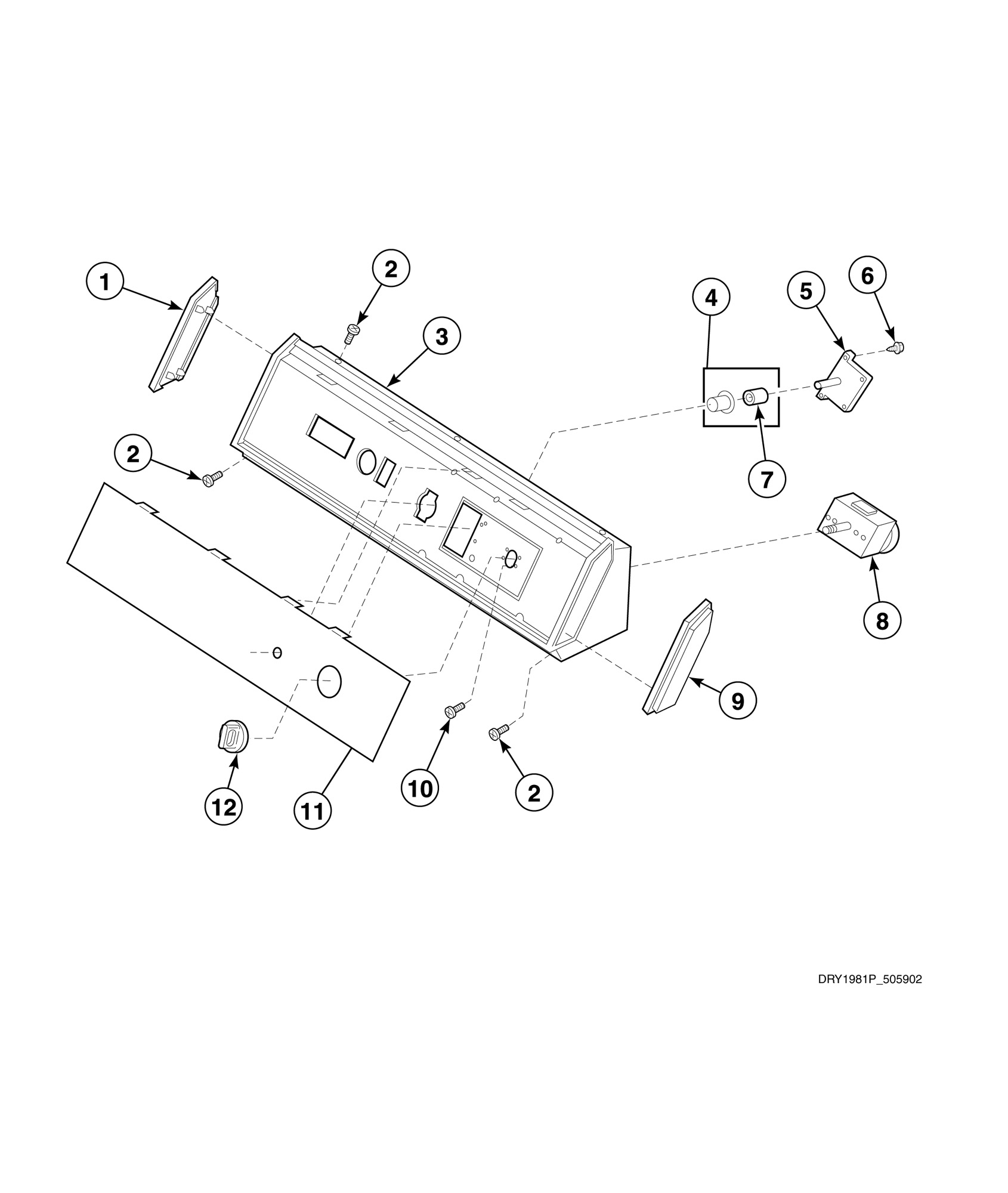

AGM359 Graphic Panel, Control Hood and Controls (Drawing 5 of 5)
Written by
in
AGM359 Graphic Panel, Control Hood and Controls (Drawing 5 of 5)
Products
| Position | Product |
|---|---|
| 1 | End Cap (Comment: Left) |
| 2 | Screw |
| 5 | Push-to-Start Switch |
| 6 | Screw |
| 7 | Wire Harness Assembly |
| 8 | Timer |
| 9 | End Cap |
| 10 | Screw |
| 11 | NOT ON YOUR MODEL |
| 12 | Timer Knob Assembly (Comment: Black) |
