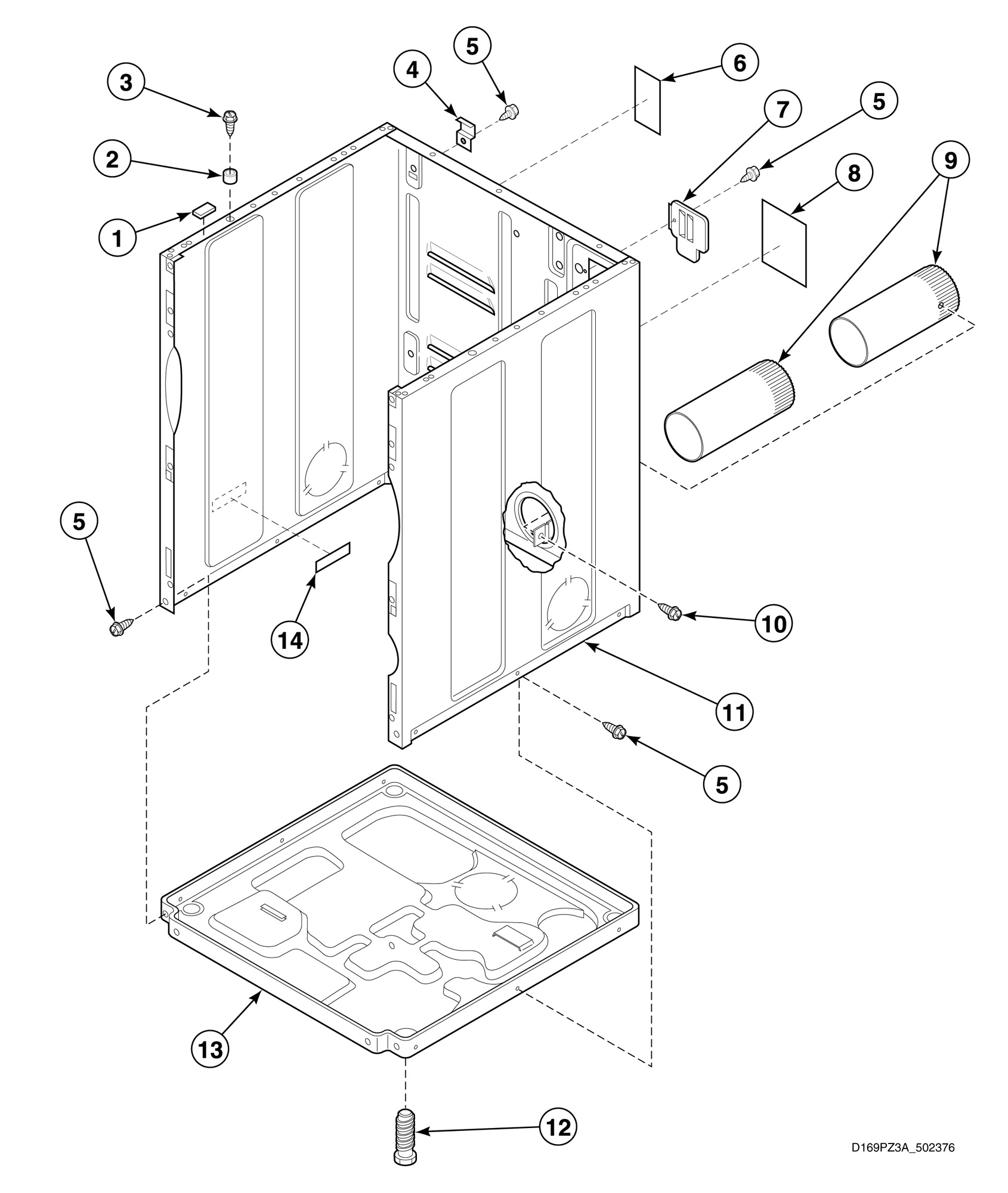

AGM379 Cabinet, Exhaust Duct and Base

Products

PositionProduct
NADirectional Exhaust Kit (Comment: To vent dryer out the sides or bottom)
1Bumper Pad
2Panel Locator
3Screw
4Top Hinge
5Screw
6Gas Clearance Label
7Access Panel Plate
9Exhaust Duct
10Screw
11Panel Kit (Comment: Almond)
11Panel Kit (Comment: White)
12Leveling Leg
13Dryer Base
14NOT ON YOUR MODEL
