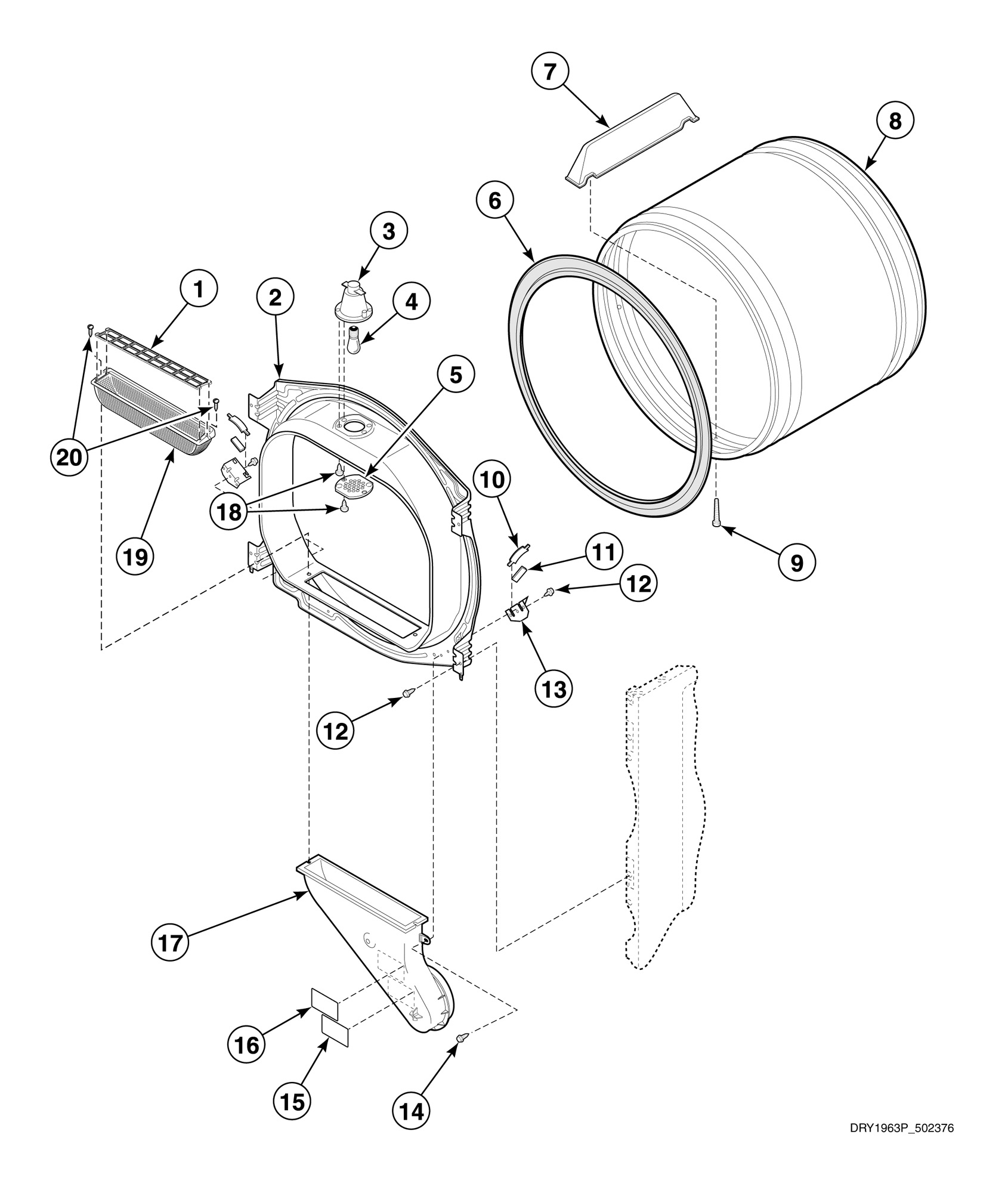

AGM379 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Products

PositionProduct
NAAdhesive (Comment: For cylinder seal)
1Lint Filter Cover
2Front Bulkhead Assembly (Comment: Includes items 6 and 10-13, White, Without light)
2Front Bulkhead Assembly (Comment: Includes items 6 and 10-13, Unpainted)
2Front Bulkhead Assembly (Comment: Includes items 6 and 10-13, White, With light)
6Cylinder Seal Assembly
7Cylinder Baffle
8Cylinder Assembly
9Screw
10Cylinder Glide (Comment: 1 required per side)
11Felt Pad
12Screw
13Cylinder Glide Bracket
14Screw
16Warning Label
17Wire Harness Assembly
18NOT ON YOUR MODEL
19Lint Filter
20Screw
