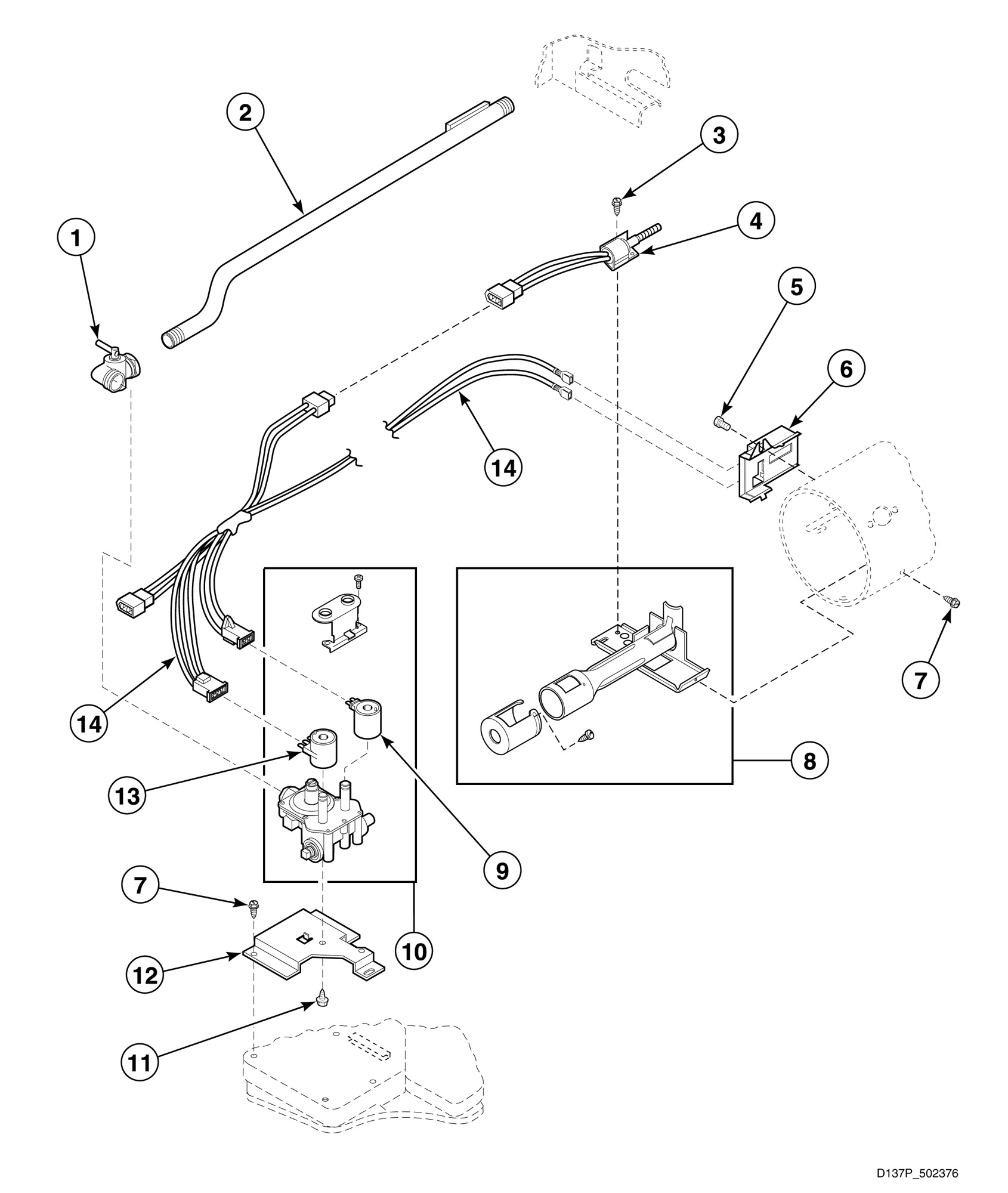

AGM379 Gas Valve and Igniter

Products

Position	Product
NA	L.P. Conversion Kit (Comment: Used to convert dryers from Natural Gas (N.G.) or Mixed Gas to Liquid Petroleum Gas (L.P.))
NA	N.G. Conversion Kit (Comment: Used to convert dryers from L.P. to N.G. or Mixed Gas)
1	Elbow Shut-Off Valve
2	Lead-In Pipe Assembly
3	Screw
4	Igniter and Bracket Assembly
5	Screw
6	Sensor
7	Screw
8	Burner Assembly
9	Secondary Coil
10	Gas Valve Assembly (Comment: N.G. or Mixed Gas, 120 Volt/60 Hertz)
11	Screw
12	Gas Valve Mounting Bracket
13	Booster and Holding Coil
14	Gas Valve Wire Harness Assembly
