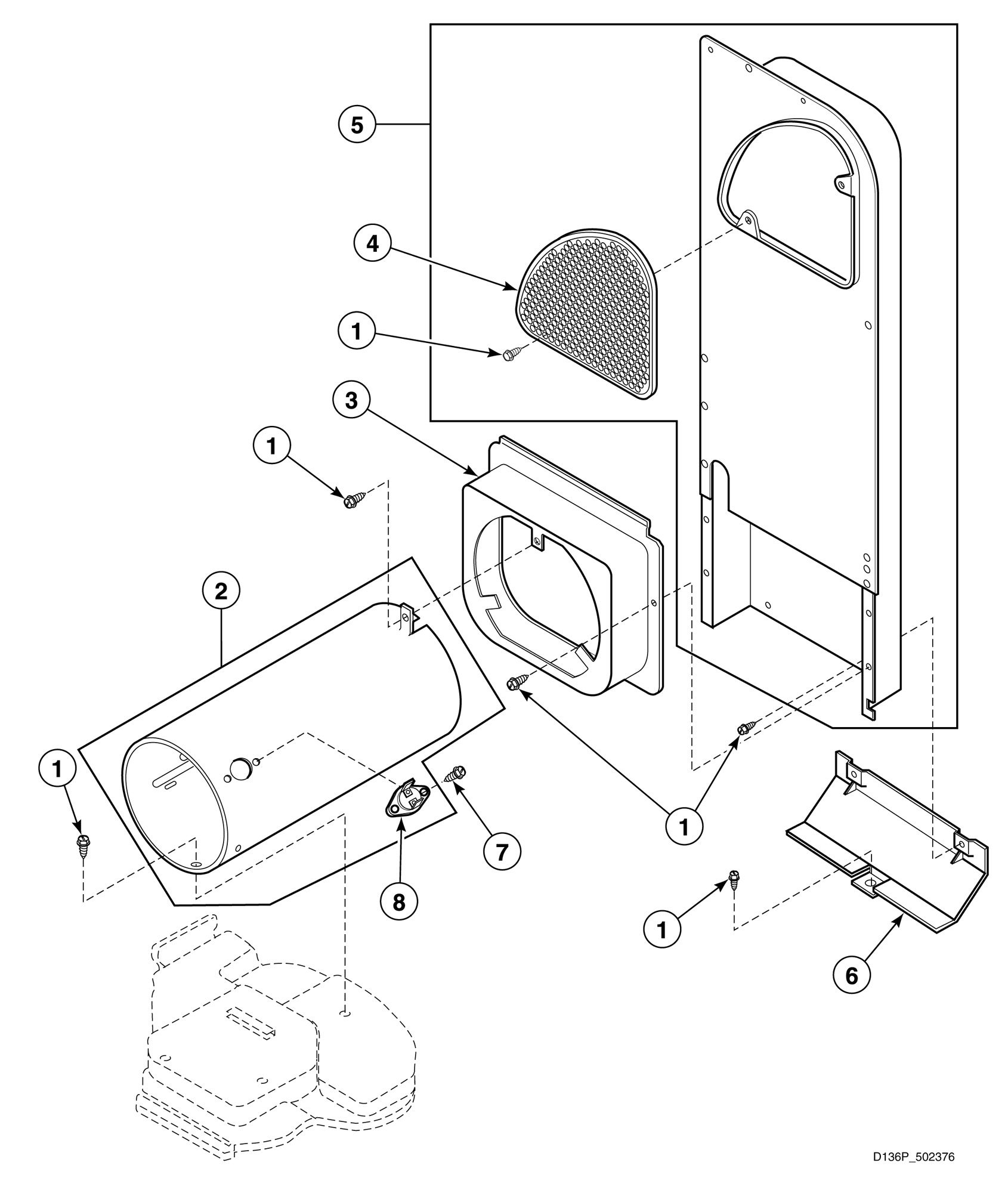

AGM399 Heater Duct Assembly – Gas Models

Written by

Products

Position	Product
1	Screw
2	Wire Harness Assembly
3	Heat Duct Shroud
4	Outlet Cover
5	Heater Duct and Screw Assembly
6	Heat Duct Shield
7	Screw
8	Limit Thermostat (Comment: Auto reset)
