AGM409W 09 – LOADING DOOR
Written by
in

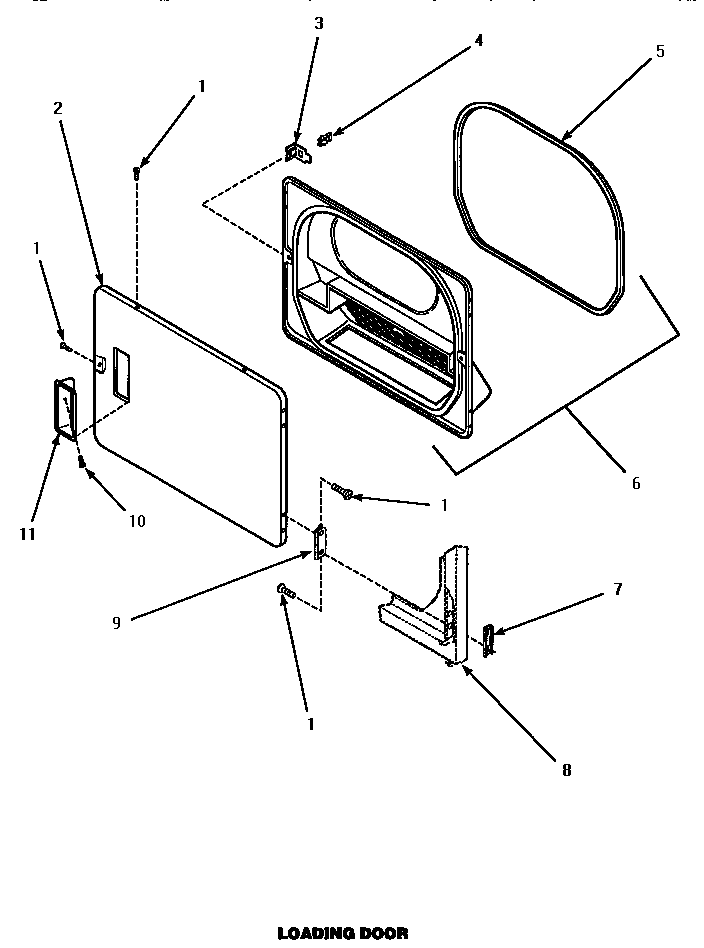

AGM409W 09 – LOADING DOOR
Products
Position
Product
NI
MAY 500035H
NI
MAY 500035W
NI
MAY 500035L
1
MAY 500226
2
MAY 500040L
2
MAY 500040H
2
MAY 500040W
3
MAY 500223
4
MAY 500039
5
MAY 500200
6
MAY 500199
7
MAY 500236
8
SEE NOTE GROUND WIRE, GREEN
9
MAY 500041
10
MAY 500297
11
MAY 500042W
11
MAY 500042L
11
MAY 500042H
←
