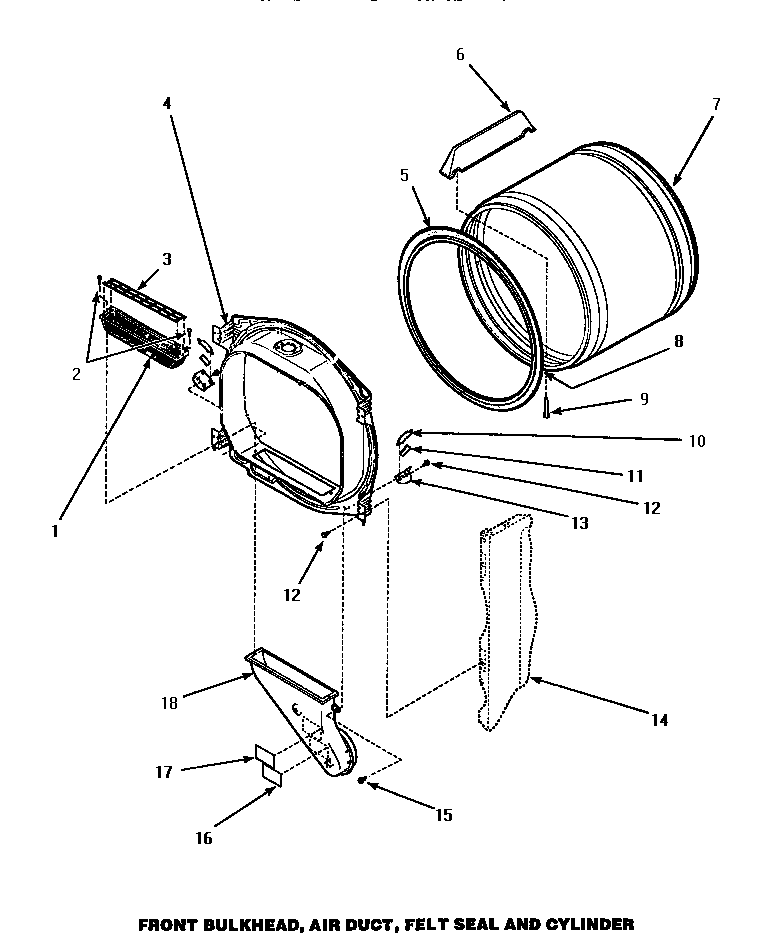

AGM429W2 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

AGM429W2 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

Written by

in

AGM429W2 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

Products

PositionProduct
1MAY 502140P
2MAY 500226
3MAY 502092
4MAY 500117W
5WP37001132 Whirlpool Felt Seal
6MAY 500022
7MAY 500013WP
8MAY 22506P
9MAY Y62588
10MAY Y501676
11MAY 500121
12MAY 501668
1312002090 Whirlpool Glide Bracket Kit
14SEE NOTE GROUND WIRE, GREEN
15MAY Y31645
16MAY 56259
17MAY 500049
18MAY 502231
