AGM429W2 09 – LOADING DOOR
Written by
in

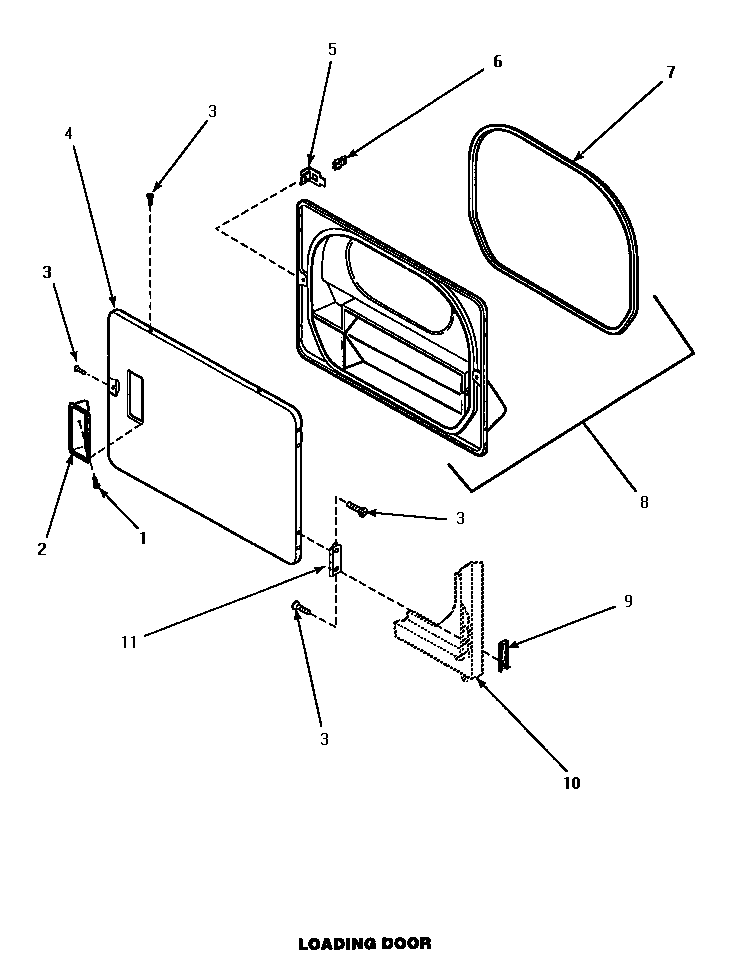

AGM429W2 09 – LOADING DOOR
Products
Position
Product
NI
MAY 500035L
NI
MAY 500035W
1
MAY 500297
2
MAY 500042L
2
MAY 500042W
3
MAY 500226
4
MAY 500040W
4
MAY 500040L
5
MAY 500223
6
MAY 500039
7
MAY 500200
8
MAY 500199
9
MAY 500236
10
SEE NOTE GROUND WIRE, GREEN
11
MAY 500041
←
