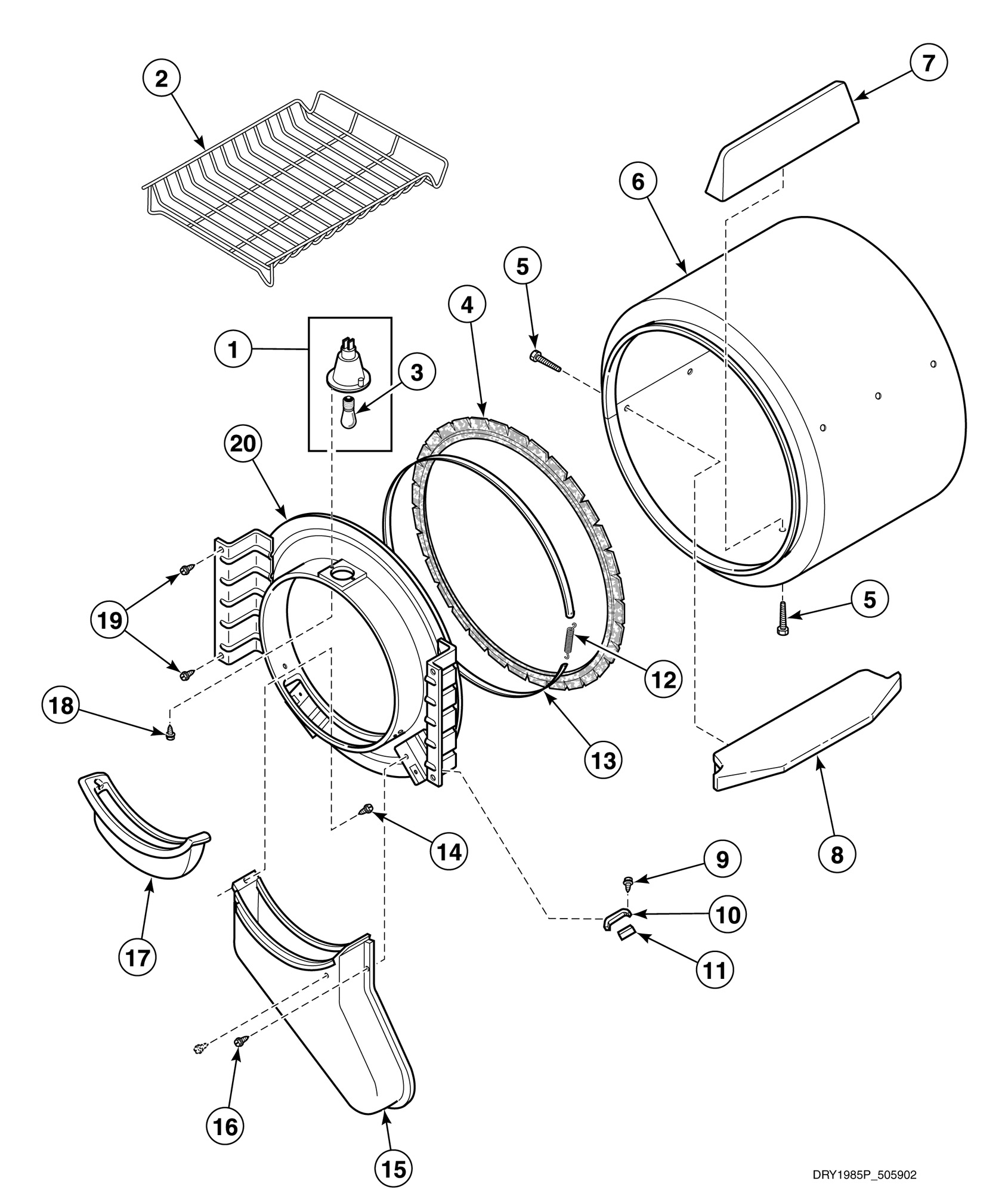

AGM439 Front Bulkhead, Air Duct, Felt Seal and Cylinder

Products

Position	Product
2	NOT ON YOUR MODEL
3	Drum Light Lamp (Comment: Use with 60953P Cylinder Light Assembly)
4	Seal Assembly
5	Screw
6	Cylinder Assembly (Comment: Includes baffles)
7	Cylinder Baffle (Comment: Short, 2 required)
8	Cylinder Baffle (Comment: Extended, 1 required)
10	Cylinder Glide
11	Thin Pad
12	Spring
13	Seal Strap
14	Screw
15	Air Duct Assembly
16	Screw
17	Lint Filter
18	Screw
19	Screw
20	Wire Harness Assembly
