AGM479W 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER – Aparts

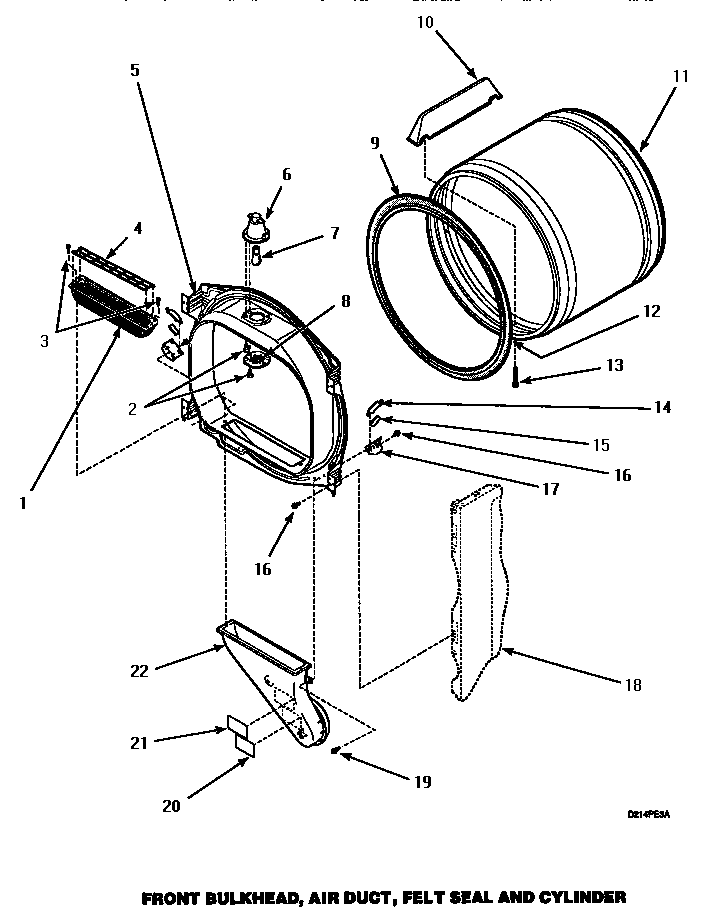

AGM479W 04 – FR BLKHD, AIR DUCT, FELT SEAL & CYLINDER

Products

Position	Product
1	MAY 502093
1	MAY 502140P
2	MAY 500248
3	MAY 500226
4	MAY 502092
5	MAY 500117W
9	WP37001132 Whirlpool Felt Seal
10	MAY 500022
11	MAY 500013WP
12	MAY 22506P
13	MAY Y62588
14	MAY Y501676
15	MAY 500121
16	MAY 501668
17	12002090 Whirlpool Glide Bracket Kit
18	SEE NOTE GROUND WIRE, GREEN
19	MAY Y31645
20	MAY 56259
21	MAY 500049
22	MAY 500241
