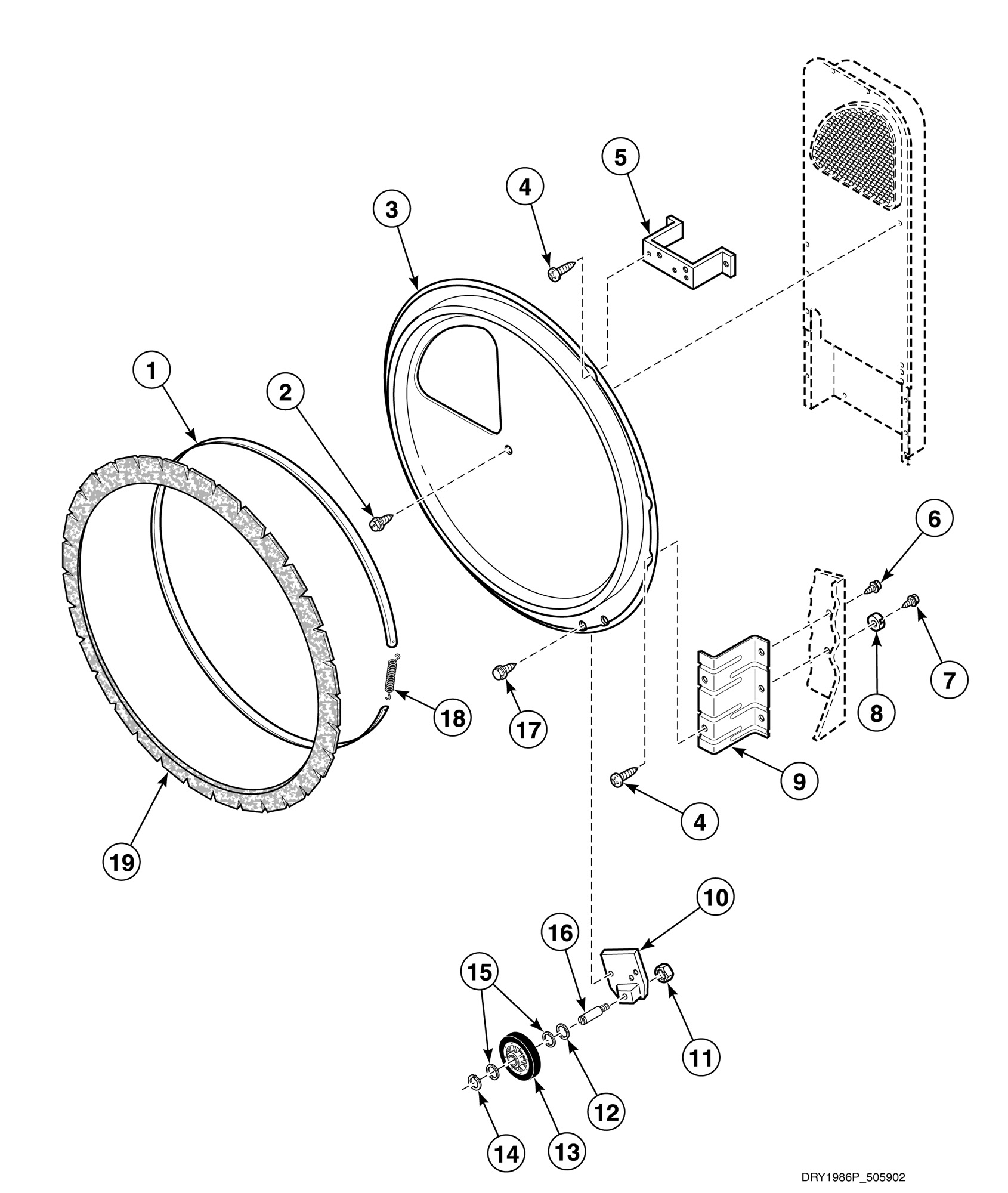

AGM639 Rear Bulkhead, Felt Seal and Cylinder Roller

AGM639 Rear Bulkhead, Felt Seal and Cylinder Roller

Written by

in

AGM639 Rear Bulkhead, Felt Seal and Cylinder Roller

Products

PositionProduct
1Seal Strap
2Screw
4Screw
6Screw
7Screw (Comment: Green)
8Washer
10Wire Harness Assembly
11Nut
12Washer
13Cylinder Roller
14Retaining Ring
15Washer
16Shaft
17Screw
18Spring
19Seal Assembly
