AGP10ACG1 ROOM AIR CONDITIONER – Aparts

AGP10ACG1 ROOM AIR CONDITIONER

Products

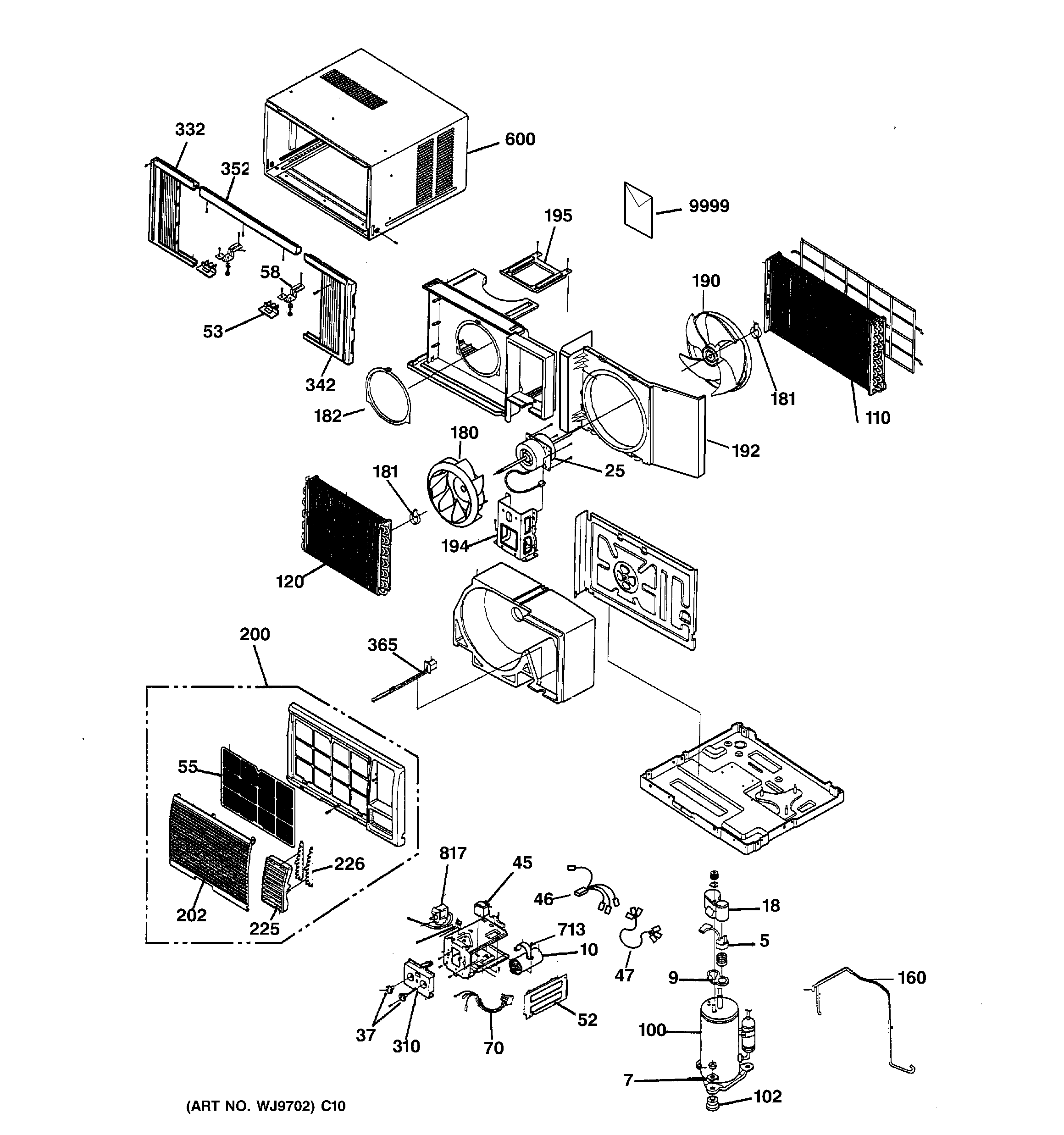

Position	Product
5	OVERLOAD PROTECTOR
7	BRACKET,COMP
9	GEN WJ43X10011
10	GEN WJ20X10058
18	GEN WJ79X10058
25	MOTOR
37	GEN WJ12X10038
45	GEN WJ26X10007
46	LEAD WIRE ASM
47	CONDUCTOR ASS'Y
52	COVER -CONTROL BOX
53	GEN WJ05X10024
55	GEN WJ85X10033
58	GEN WJ01X10074
70	GEN WJ35X10013
100	COMPRESSOR
102	GEN WJ01X10141
110	CONDENSER ASS'Y
120	EVAPORATOR ASS'Y
160	CAPILLARY .054 CUT TO 16
180	I/D BLOWER WHEEL
181	GEN WJ03X10016
182	ORIFICE COVER
190	FAN BLADE O/D
192	O/D FAN SHROUD
194	MOTOR MOUNT
195	GEN WJ65X10029
200	GEN WJ71X10187
202	GEN WJ71X10201
225	GEN WJ71X10189
226	GEN WJ71X10185
310	GEN WJ07X10044
332	GEN WJ86X10004
342	GEN WJ86X10005
352	GEN WJ66X10037
365	GEN WJ14X10025
600	GEN WJ90X10035
713	GEN WJ66X10030
817	GEN WJ28X10013
9999	GEN 49-7402
9999	GEN 31-60689
