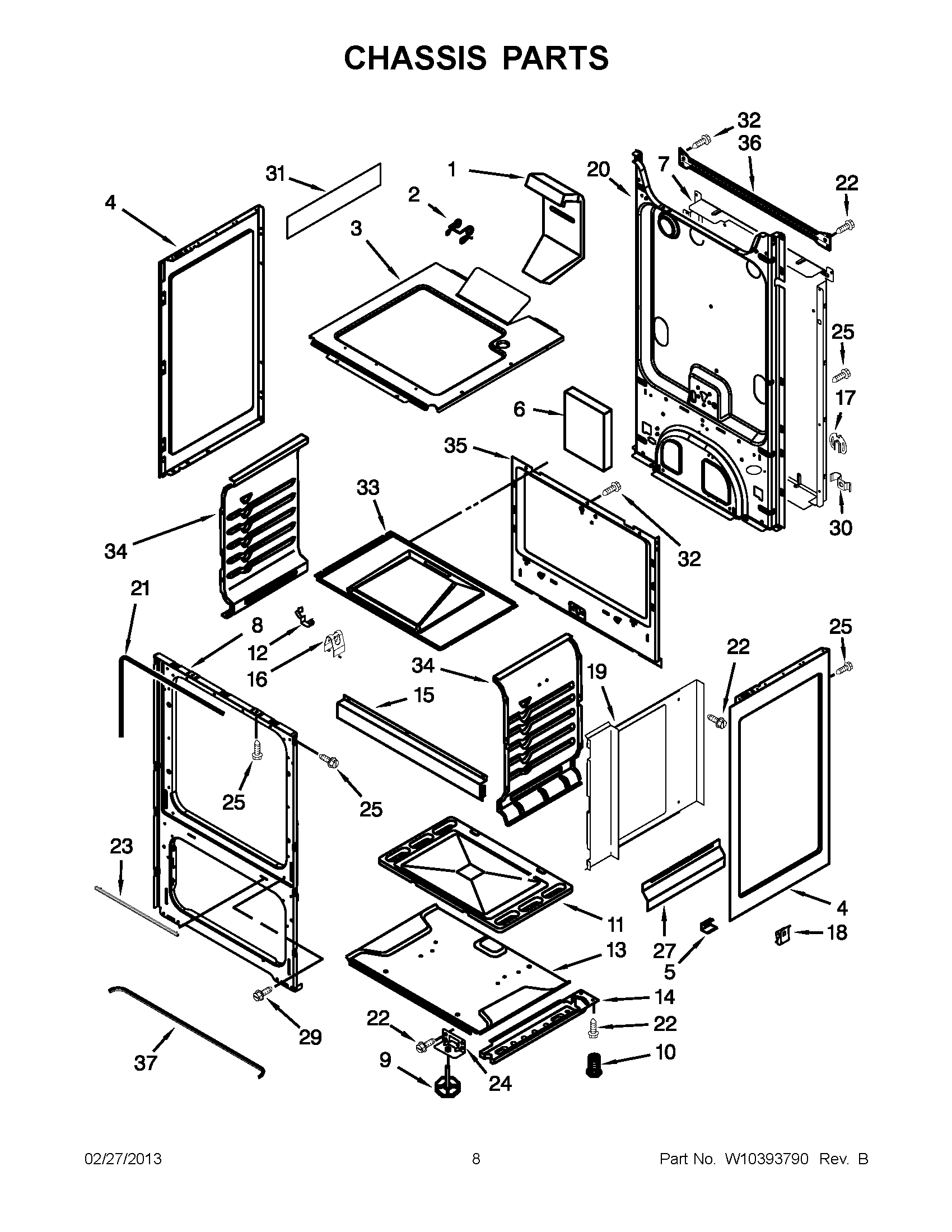

AGP200VDW0 04 – CHASSIS PARTSadmin2025-04-26T12:23:57+00:00AGP200VDW0 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | INSULATION, WRAP |
| 1 | BOX, FLUE |
| 2 | SPRING, TORSION (FLUE BOX) |
| 3 | MAY W10168214 |
| 4 | PANEL, SIDE (WHITE) |
| 5 | CLIP, OVEN BOTTON |
| 6 | COUNTERWEIGHT |
| 7 | MAY W10165402 |
| 8 | FRAME, FRONT |
| 9 | FOOT, FRONT |
| 10 | FOOT, LEVELING |
| 11 | MAY 98004450 |
| 12 | CLIP, THERM BULB |
| 13 | BAFFLE, BASE |
| 14 | RAIL, BASE |
| 15 | SUPPORT, OVEN BURNER |
| 16 | RETAINER, THERMOCOUPLE |
| 17 | MAY 98005713 |
| 18 | U-NUT |
| 19 | BAFFLE, SIDE |
| 20 | MAY 98003944 |
| 21 | MAY W10170595 |
| 22 | SCREW |
| 23 | SEAL, DOOR |
| 24 | BASE, FOOT |
| 25 | SCREW |
| 26 | MAY W10170594 |
| 27 | SHIELD, HEAT (LOWER) |
| 28 | SUPPORT, REAR |
| 29 | SCREW (BLACK) |
| 30 | CLIP, TUBING |
| 31 | FOIL, SIDE |
| 32 | Screw |
| 33 | TOP, OVEN |
| 34 | SIDE, OVEN (RIGHT HAND) |
| 34 | SIDE, OVEN (LEFT HAND) |
| 35 | MAY W10180589 |
