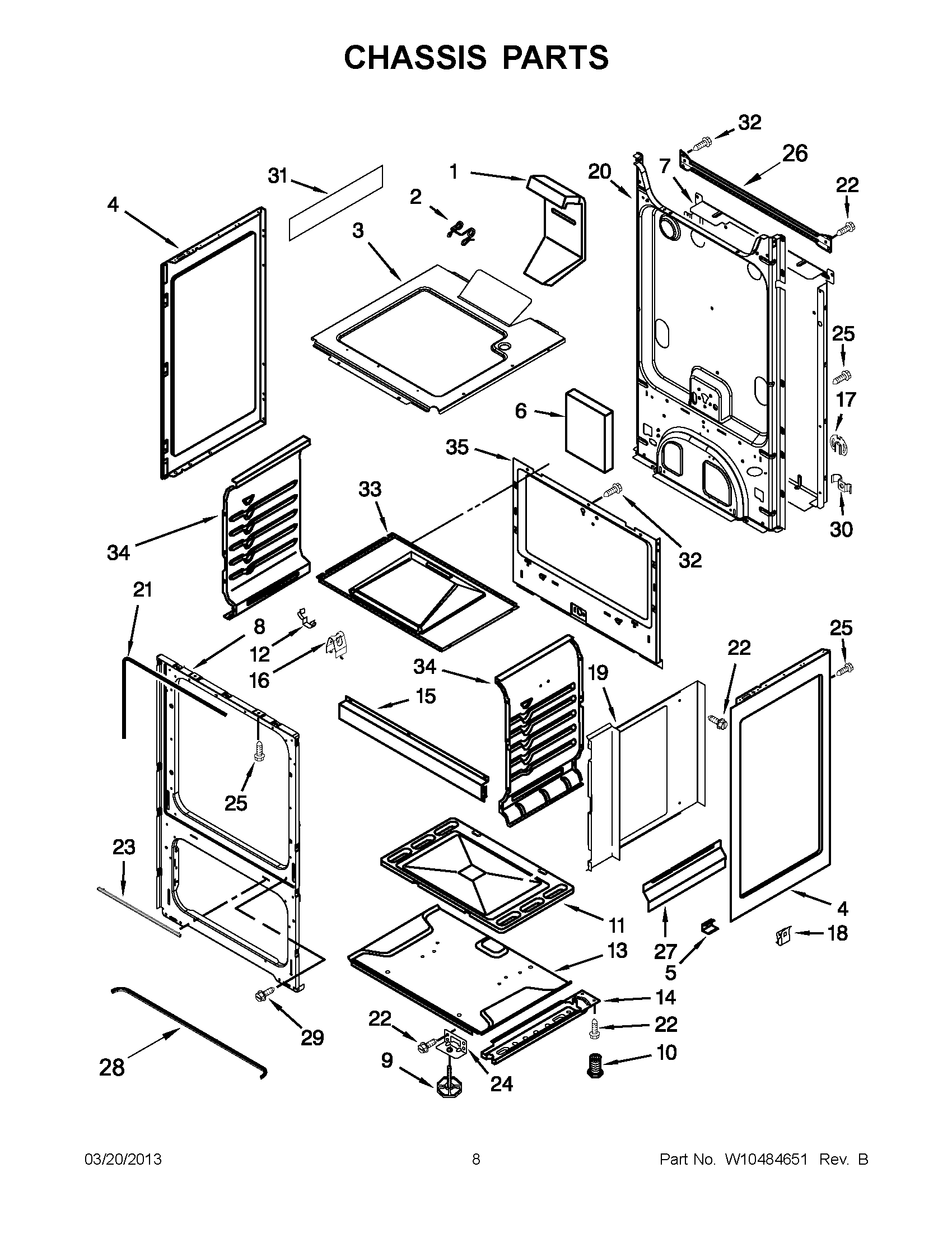

AGP200VDW1 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	BOX, FLUE
2	SPRING, TORSION (FLUE BOX)
3	MAY W10168214
4	PANEL, SIDE (WHITE)
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY W10165402
8	FRAME, FRONT
9	FOOT, FRONT
10	FOOT, LEVELING
11	MAY 98004450
12	CLIP, THERM BULB
13	BAFFLE, BASE
14	RAIL, BASE
15	SUPPORT, OVEN BURNER
16	RETAINER, THERMOCOUPLE
17	MAY 98005713
18	U-NUT
19	BAFFLE, SIDE
20	MAY 98003944
21	MAY W10170595
22	SCREW
23	SEAL, DOOR
24	BASE, FOOT
25	SCREW
26	SUPPORT, REAR
27	SHIELD, HEAT (LOWER)
28	MAY W10170594
29	SCREW (BLACK)
30	CLIP, TUBING
31	FOIL, SIDE
32	Screw
33	TOP, OVEN
34	SIDE, OVEN (RIGHT HAND)
34	SIDE, OVEN (LEFT HAND)
35	MAY W10180589
