AGQ10AAG1 ROOM AIR CONDITIONER

AGQ10AAG1 ROOM AIR CONDITIONER

Written by

in

AGQ10AAG1 ROOM AIR CONDITIONER

Products

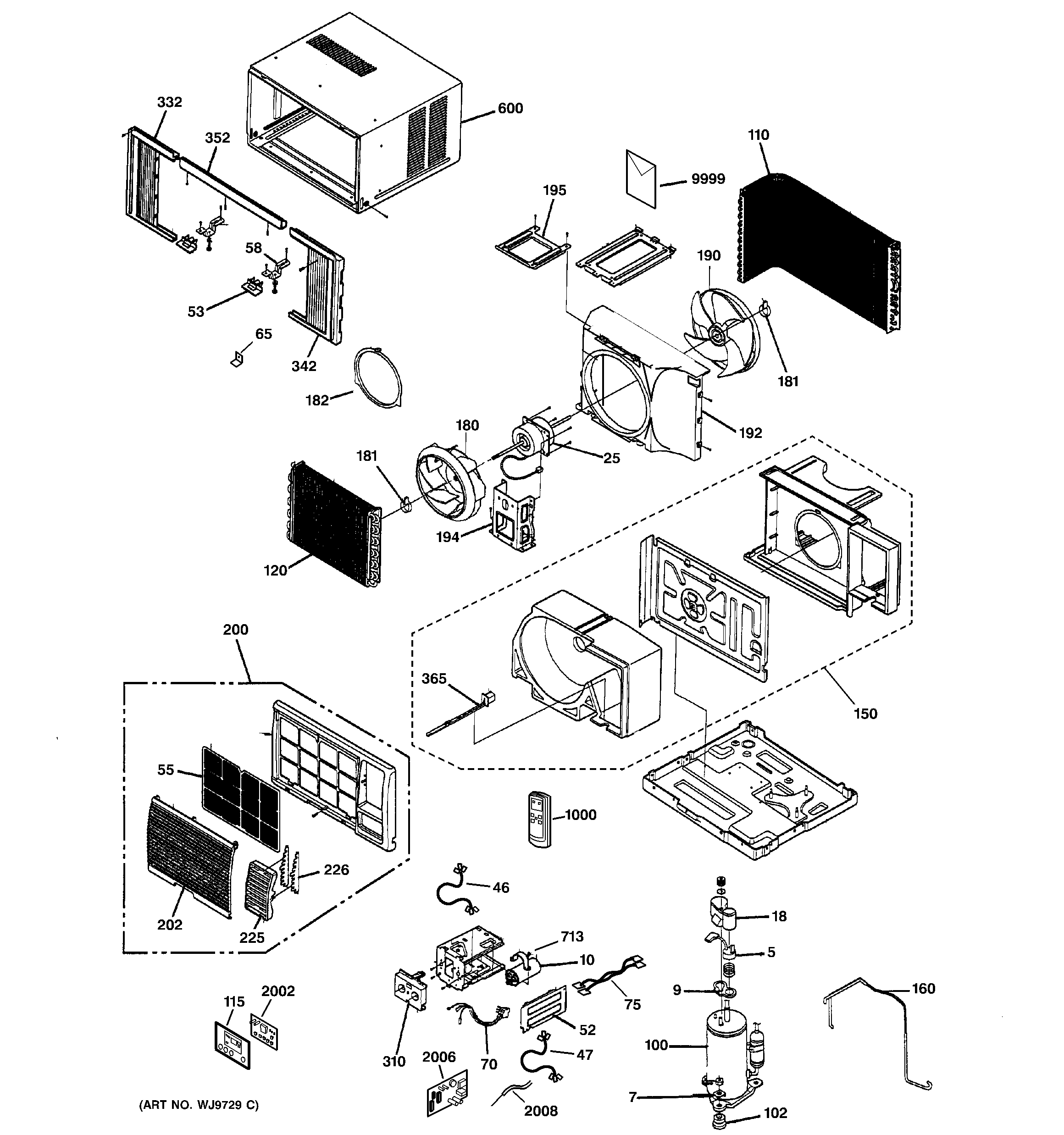

Position	Product
5	OVERLOAD PROTECTOR
7	BRACKET,COMP
9	GEN WJ43X10011
10	GEN WJ20X10058
18	GEN WJ79X10058
25	MOTOR
46	GEN WJ35X10058
47	CONDUCTOR ASS'Y
52	COVER -CONTROL BOX
53	GEN WJ05X10024
55	GEN WJ85X10034
58	GEN WJ01X10074
65	GEN WJ01X10145
70	GEN WJ35X10013
75	GEN WJ37X10032
100	COMPRESSOR
102	GEN WJ01X10141
110	CONDENSER ASS'Y
115	GEN WJ07X10058
120	EVAPORATOR ASS'Y
150	GEN WJ78X10020
160	GEN WJ53X10078
180	I/D BLOWER WHEEL
181	GEN WJ03X10016
182	ORIFICE COVER
190	FAN BLADE O/D
192	O/D FAN SHROUD
194	MOTOR MOUNT
195	GEN WJ65X10029
200	GEN WJ71X10219
202	GEN WJ71X10231
225	GEN WJ71X10186
226	GEN WJ71X10185
310	GEN WJ07X10086
332	GEN WJ86X10004
342	GEN WJ86X10005
352	GEN WJ66X10037
365	GEN WJ14X10025
600	GEN WJ90X10035
713	CLAMP, CAPACITOR
1000	REMOTE CONTROLLER ASSY
2002	GEN WJ26X10101
2006	GEN WJ26X10102
2008	GEN WJ27X10035
9999	GEN 31-60842
9999	GEN 49-7428K
