AGQ10AJG1 ROOM AIR CONDITIONER

AGQ10AJG1 ROOM AIR CONDITIONER

Written by

in

AGQ10AJG1 ROOM AIR CONDITIONER

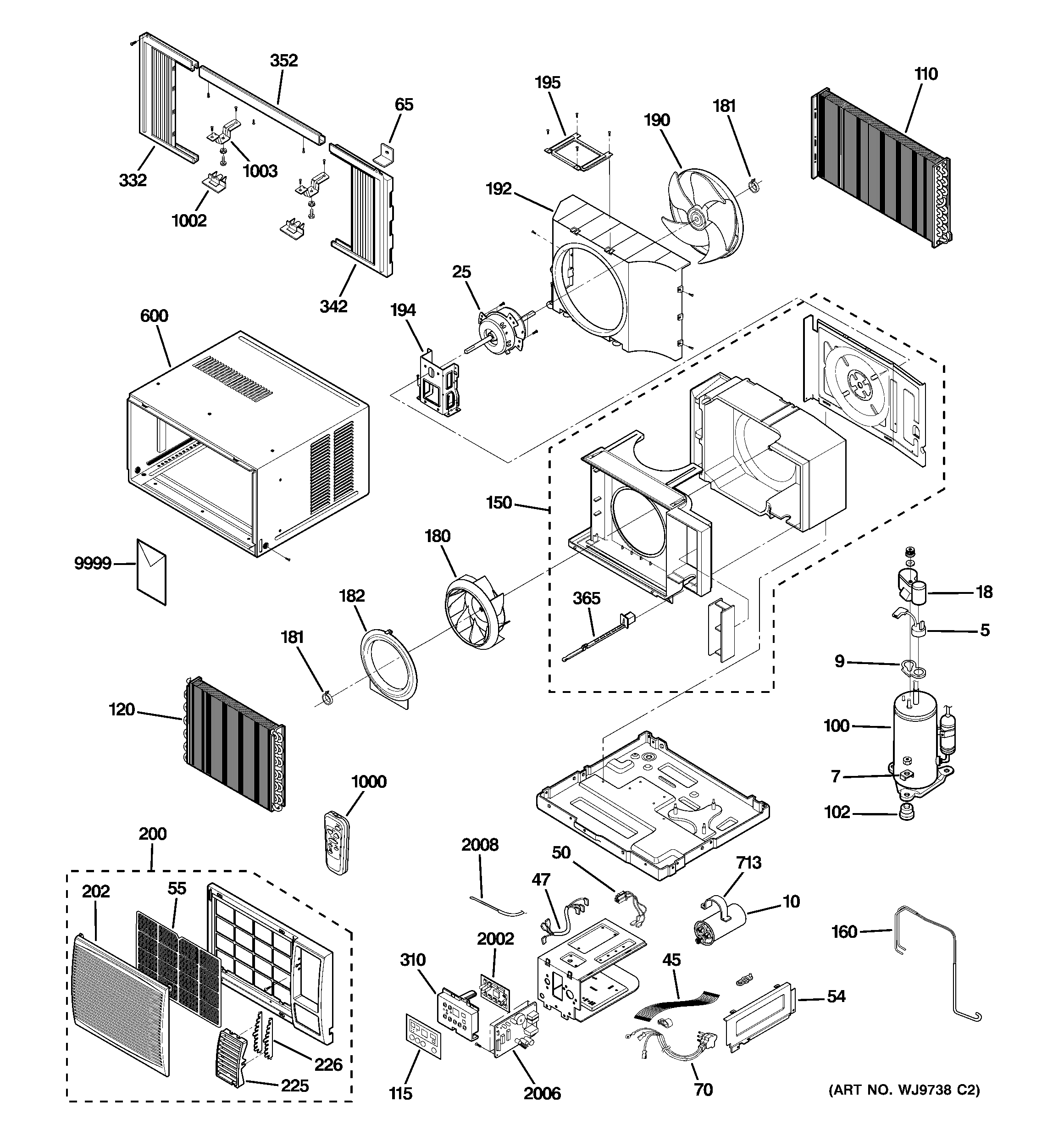

Products

Position	Product
5	OVERLOAD, COMPRESSOR
7	GEN WJ01X10257
9	GEN WJ43X10011
10	GEN WJ20X10058
18	GEN WJ79X10140
25	MOTOR
45	GEN WJ37X10032
47	CONDUCTOR ASS'Y
50	GEN WJ37X10031
54	COVER -CONTROL BOX
55	GEN WJ85X10109
65	GEN WJ01X10145
70	GEN WJ35X10099
100	GEN WJ98X10157
102	GEN WJ01X10141
110	GEN WJ88X10158
115	GEN WJ07X10189
120	GEN WJ87X10177
150	GEN WJ78X10050
160	GEN WJ53X10107
180	FAN ASM BLOWER
181	GEN WJ03X10016
182	GEN WJ78X10033
190	FAN BLADE O/D
192	O/D FAN SHROUD
194	MOTOR MOUNT
195	GEN WJ65X10029
200	GEN WJ71X10500
202	GEN WJ71X10231
225	GEN WJ71X10186
226	GEN WJ71X10185
310	GEN WJ07X10056
332	GEN WJ86X10004
342	GEN WJ86X10005
352	GEN WJ66X10037
365	GEN WJ14X10025
600	GEN WJ90X10075
713	CLAMP, CAPACITOR
1000	REMOTE CONTROLLER ASSY
1002	GEN WJ05X10024
1003	GEN WJ01X10234
2002	GEN WJ26X10160
2006	GEN WJ26X10161
2008	GEN WJ27X10058
9999	GEN 49-7495
9999	GEN 31-61275
