AGQ12AJG1 ROOM AIR CONDITIONER

AGQ12AJG1 ROOM AIR CONDITIONER

Written by

in

AGQ12AJG1 ROOM AIR CONDITIONER

Products

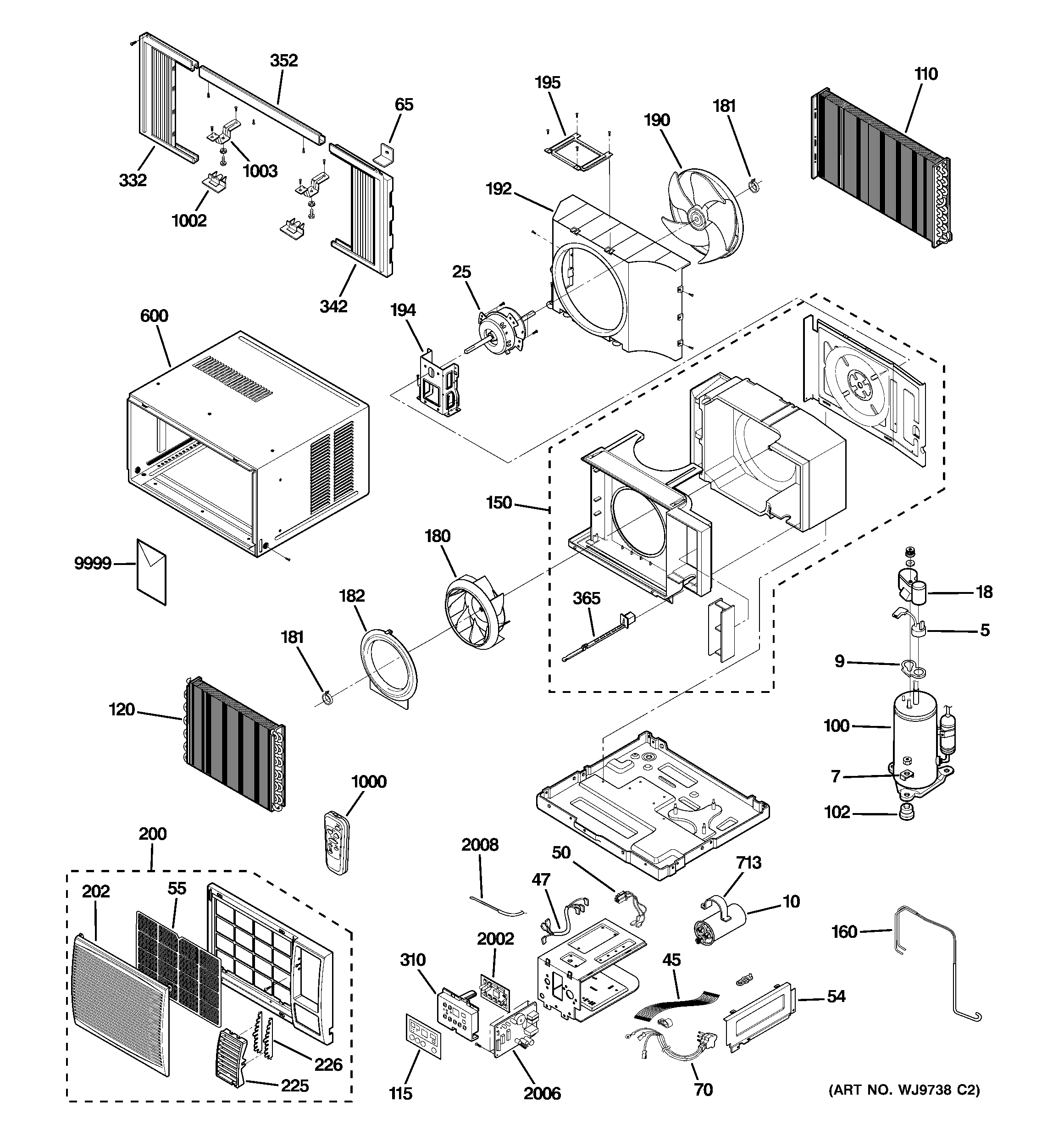

Position	Product
5	OVERLOAD, COMPRESSOR
7	GEN WJ71X10270
9	GEN WJ43X10011
10	GEN WJ20X10058
18	GEN WJ79X10140
25	GEN WJ94X10150
45	GEN WJ35X10059
47	GEN WJ37X10045
50	GEN WJ37X10031
54	COVER ASM CONTROL
55	AIR FILTER
65	GEN WJ01X10145
70	POWER CORD ASM
100	GEN WJ98X10156
102	GEN WJ01X10141
110	GEN WJ88X10098
115	GEN WJ07X10194
120	GEN WJ87X10163
150	AIR GUIDE ASM
160	GEN WJ53X10106
180	GEN WJ73X10091
181	GEN WJ03X10016
182	GEN WJ78X10032
190	GEN WJ73X10087
192	GEN WJ76X10134
194	GEN WJ65X10033
195	GEN WJ65X10031
200	GEN WJ71X10076
202	GRILLE INLET
225	GEN WJ71X10077
226	GEN WJ71X10078
310	GEN WJ07X10055
332	GEN WJ86X10002
342	GEN WJ86X10003
352	GEN WJ66X10018
365	GEN WJ14X10058
600	GEN WJ90X10030
713	CLAMP, CAPACITOR
1000	REMOTE CONTROLLER ASSY
1002	GEN WJ05X10024
1003	GEN WJ01X10234
2002	PWB(PCB) ASM DISPLA
2006	GEN WJ26X10161
2008	GEN WJ27X10058
9999	GEN 49-7495
9999	GEN 31-61280
