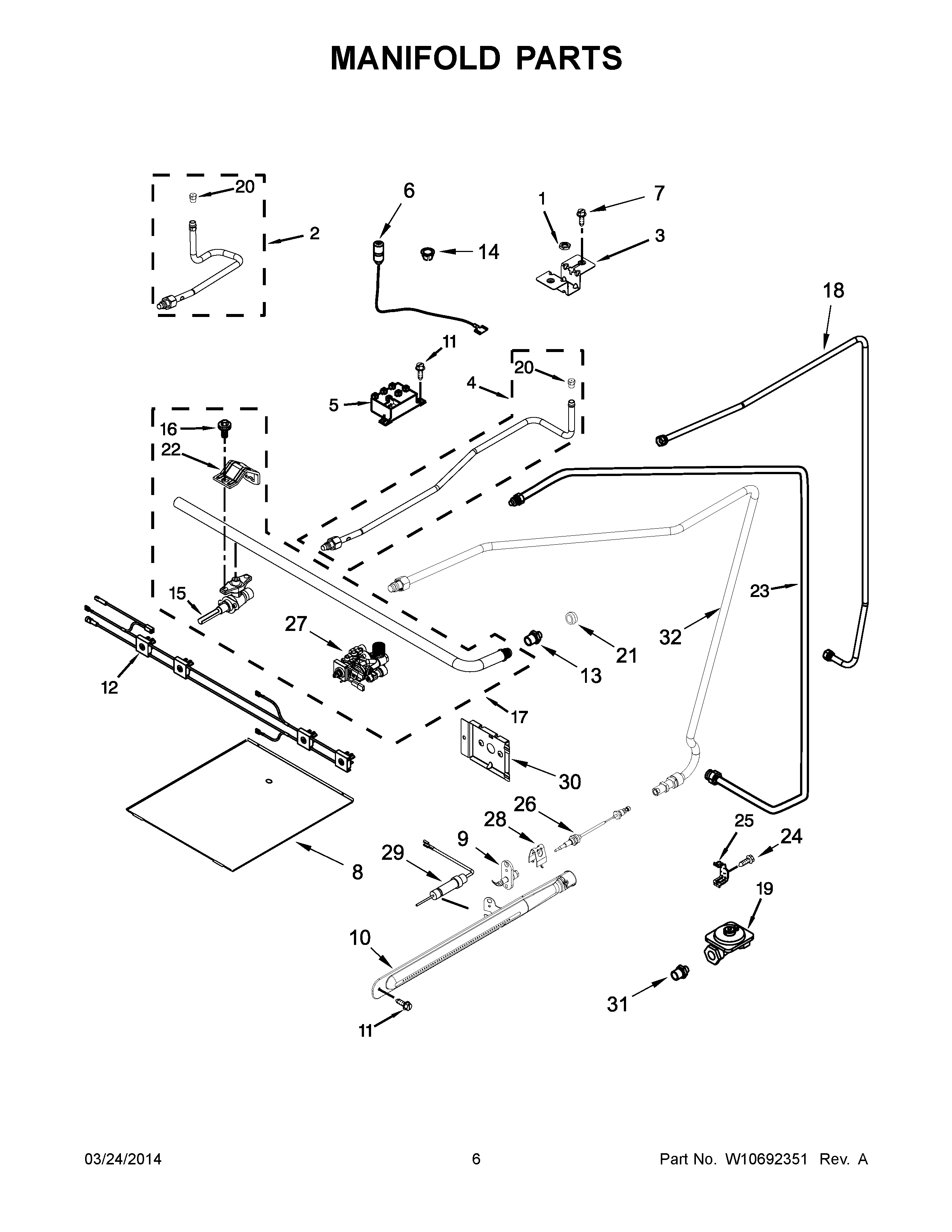

AGR3130BAW0 04 – MANIFOLD PARTS

AGR3130BAW0 04 – MANIFOLD PARTS

Written by

in

AGR3130BAW0 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10537440
NI	LINER (NOT A SERVICEABLE PART)
1	NUT
2	MAY W10543959
2	ASSEMBLY, TUBING (RIGHT FRONT)
3	BRKT., VENTURI
4	MAY W10544971
4	ASSEMBLY, TUBING (LEFT REAR)
5	MAY W10518414
6	IGNITOR, TOP (RF, RR, LF)
6	IGNITOR, TOP (LEFT REAR)
7	MAY W10146346
8	MAY W10582462
9	MAY W10085400
10	MAY W10517877
11	SCREW
12	MAY W10556706
13	MAY 98007116
14	MAY W10278150
15	VALVE, BURNER (LF, LR, RF, RR)
16	MAY 98017517
17	MAY W10579474
18	MAY W10515689
19	MAY 98007462
20	Orifice (RF, RR, LR)
21	MAY 98005514
22	BRACKET, VALVE
23	TUBING, THERMOSTAT TO PILOT
24	Screw
25	MAY 98007410
26	MAY W10155906
27	MAY W10503587
28	RETAINER, THERMOCOUPLE
29	MAY W10145060
30	MAY W10570943
31	MAY 98007431
32	MAY W10532503
