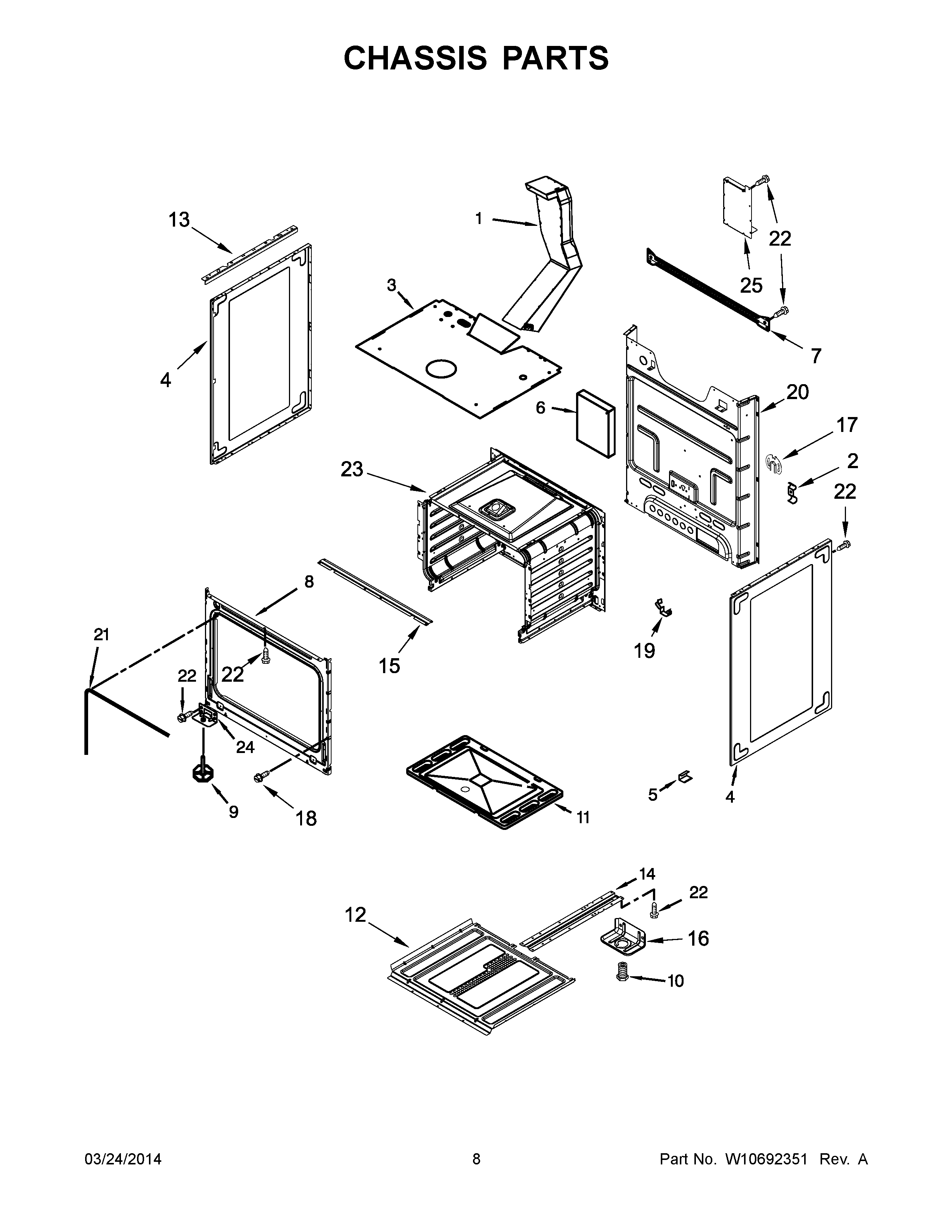

AGR3130BAW0 05 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	WIRE TIE, INSULATION
NI	INSULATION, UPPER
NI	INSULATION, BACK
1	BOX, FLUE
2	CLIP, TUBING
3	MAY W10164110
4	PANEL, SIDE (WHITE (LEFT))
4	PANEL, SIDE (WHITE (RIGHT))
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY 98015363
9	FOOT, LEVELING (FRONT)
10	FOOT, LEVELING
11	MAY W10620408
12	DEFLECTOR, OVEN
13	SUPPORT, SIDE PANEL
14	RAIL, BASE
15	BRACKET, MANIFOLD
16	BRACKET, FOOT
17	MAY 98005713
18	SCREW (BLACK)
19	CLIP, THERM BULB
20	BACK, MAIN
21	SEAL, OVEN
22	SCREW
23	LINER (NOT A SERVICEABLE PART)
24	BASE, FOOT
25	COVER
