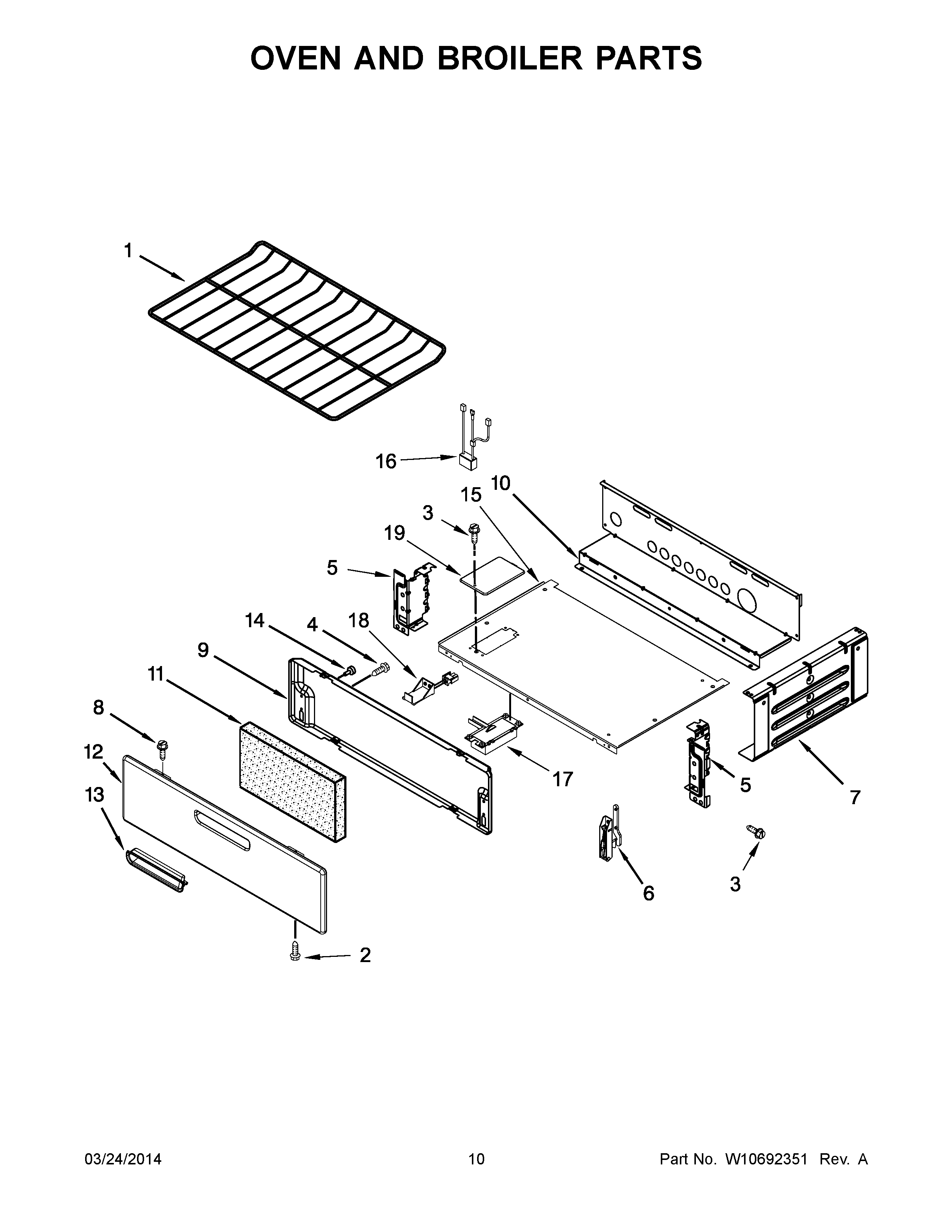

AGR3130BAW0 06 – OVEN AND BROILER PARTS

AGR3130BAW0 06 – OVEN AND BROILER PARTS

Written by

in

AGR3130BAW0 06 – OVEN AND BROILER PARTS

Products

Position	Product
1	RACK, OVEN
2	SCREW
3	SCREW (BLACK)
4	SCREW
5	COVER, BROILER RIGHT
5	COVER, BROILER LEFT
6	HINGE
7	PANEL, SIDE
8	SCREW (BLACK)
9	LINER, BROILER DRAWER
10	MAY W10364810
11	INSULATION, BROILER DOOR
12	MAY W10483323
13	HANDLE, BROILER DOOR (WHITE)
14	MAY 98004052
15	MAY W10680080
16	MAY W10538600
17	MAY W10518026
18	MAY W10518028
19	MAY W10518027
