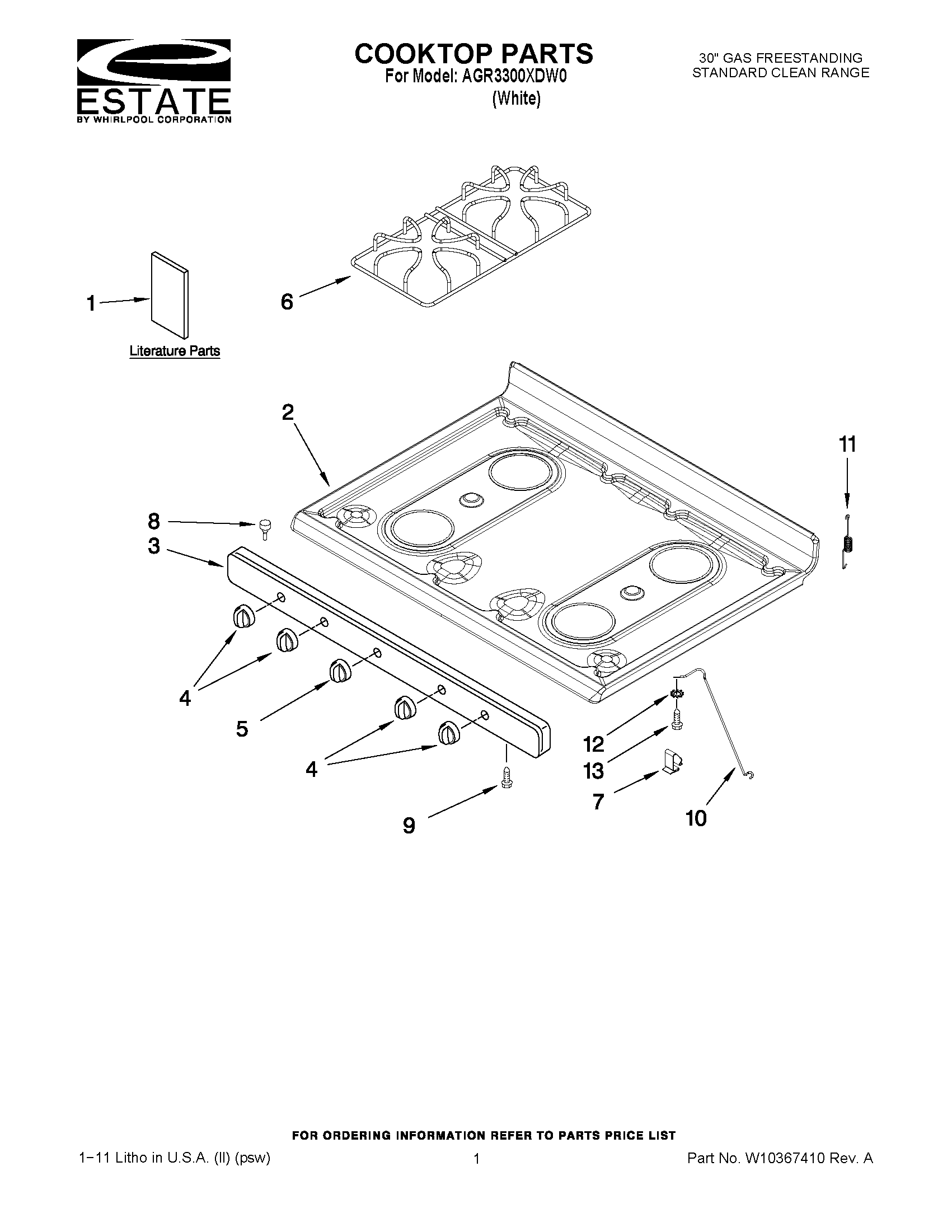

AGR3300XDW0 01 – COOKTOP PARTS

AGR3300XDW0 01 – COOKTOP PARTS

Written by

in

AGR3300XDW0 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (FRENCH)
1MAY W10330186
1MAY W10325493
1MAY W10138585
1TIPS, SAFE COOKING (ENGLISH)
2MAY W10141521
3MAY W10323612
4KNOB, BURNER (WHITE)
5KNOB, THERMOSTAT (WHITE)
6GRATE, BURNER (BLACK)
7CLIP, COOKTOP
8MAY 98004723
9SCREW
10ROD, SUPPORT LEFT HAND
10ROD, SUPPORT RIGHT HAND
11SPRING, COOKTOP
12WASHER, LOCK
13SCREW
