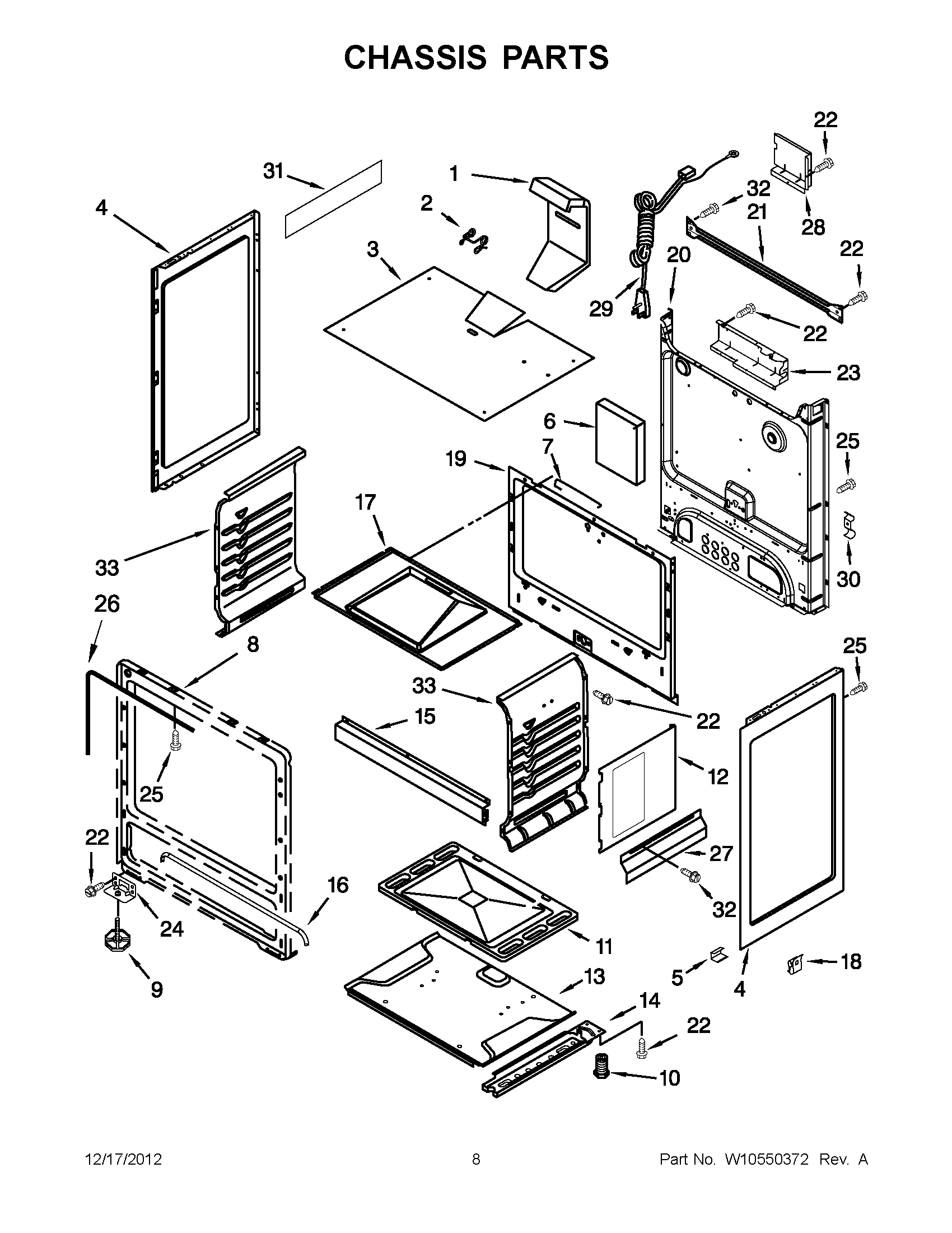

AGR3311WDW2 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10137233
NI	MAY W10137227
1	MAY 98003799
2	SPRING, TORSION (FLUE BOX)
3	SHIELD, UPPER
4	PANEL, SIDE (WHITE)
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT
7	MAY 98006739
8	MAY W10166434
9	FOOT, FRONT
10	FOOT, LEVELING
11	MAY 98004449
12	BAFFLE, SIDE
13	MAY 98003847
14	RAIL, BASE
15	MAY 98012175
16	Gasket, Broil Door
17	MAY 98004447
18	U-NUT
19	MAY 98005768
20	MAY 98015100
21	MAY 98015363
22	SCREW
23	MAY 98014105
24	BASE, FOOT
25	SCREW
26	MAY W10217472
27	SHIELD, HEAT (LOWER)
28	Cover, Socket
29	CORD-POWER
30	CLIP, TUBING
31	FOIL, SIDE
32	Screw
33	SIDE, OVEN (LEFT HAND)
33	SIDE, OVEN (RIGHT HAND)
