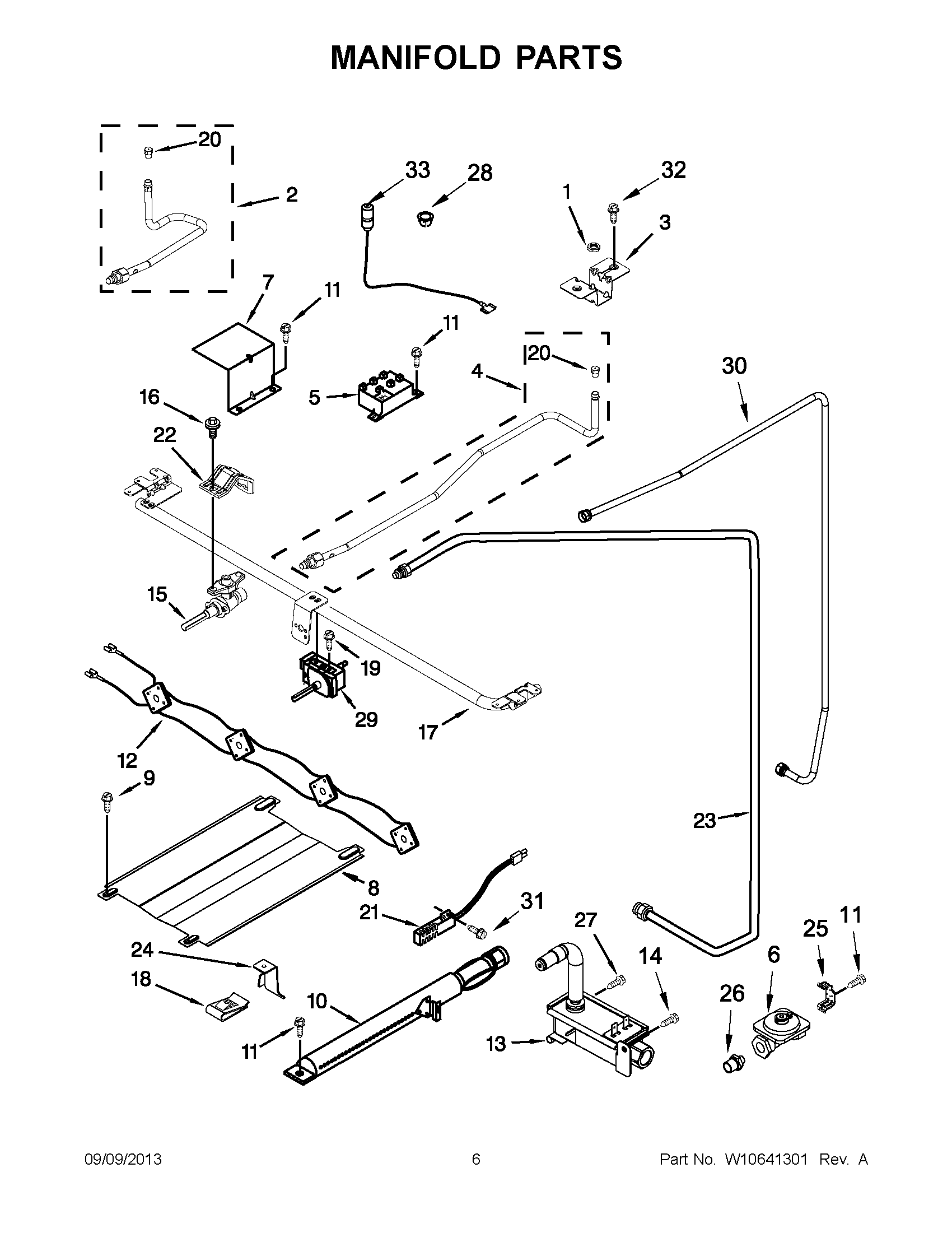

AGR3311WDW3 04 – MANIFOLD PARTS

AGR3311WDW3 04 – MANIFOLD PARTS

Written by

in

AGR3311WDW3 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10032010
NI	LINER (NOT A SERVICEABLE PART)
1	NUT
2	VENTURI, FRONT (RF)
3	BRACKET, VENTURI
4	VENTURI, REAR
5	MAY 6610341
6	MAY W10469572
7	MAY 98007192
8	SPREAD, FLAME (BAKE)
9	SCREW
10	MAY 98012138
11	MAY 98007225
12	MAY W10361492
13	MAY 98014893
14	SCREW
15	VALVE, BURNER (LF, LR, RF, RR)
16	MAY 98017517
17	MAY W10583004
18	U-NUT
19	SCREW
20	Orifice (RF, RR, LR)
21	Igniter, Oven Oven Pilot)
22	MAY W10421119
23	MAY W10469571
24	MAY 98013314
25	MAY 98007410
26	MAY 98007431
27	MAY 98013634
28	MAY W10278150
29	THERMOSTAT, OVEN
30	Tubing, Inlet
31	MAY 98005659
32	MAY W10146346
33	IGNITOR, TOP (LEFT REAR)
33	IGNITOR, TOP (RF, RR, LF)
