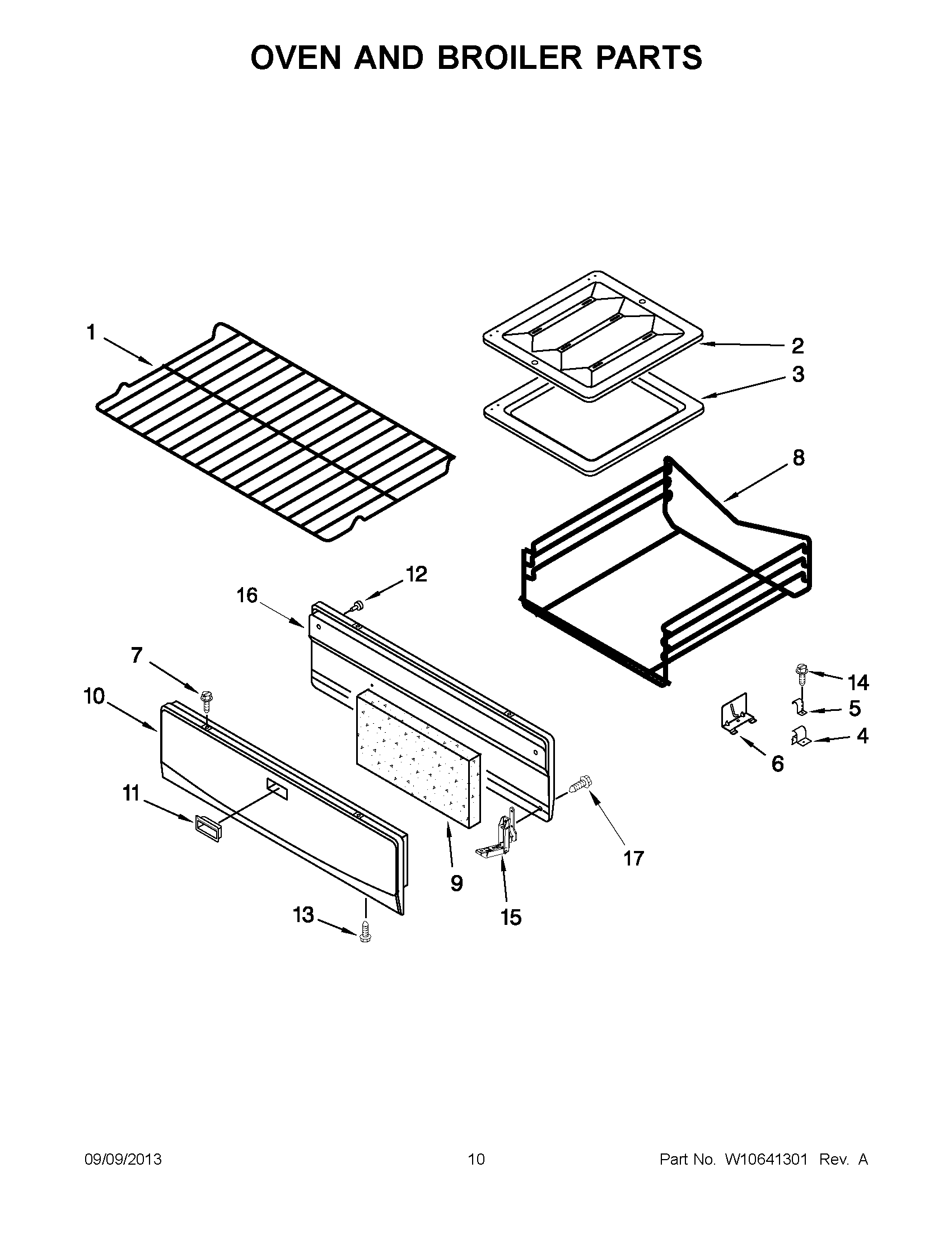

AGR3311WDW3 06 – OVEN AND BROILER PARTS

AGR3311WDW3 06 – OVEN AND BROILER PARTS

Written by

in

AGR3311WDW3 06 – OVEN AND BROILER PARTS

Products

PositionProduct
1MAY W10312013
2MAY 98003480
3MAY 98016005
4GUIDE, RACK
5MAY 98008341
6MAY 98004761
7SCREW (WHITE)
8MAY 98016570
9MAY W10137230
10MAY 98009342
11Handle, Brlr Door (White)
12MAY 98004052
13SCREW
14SCREW
15HINGE, BROILER DOOR
16LINER, BROILER DOOR
17SCREW
