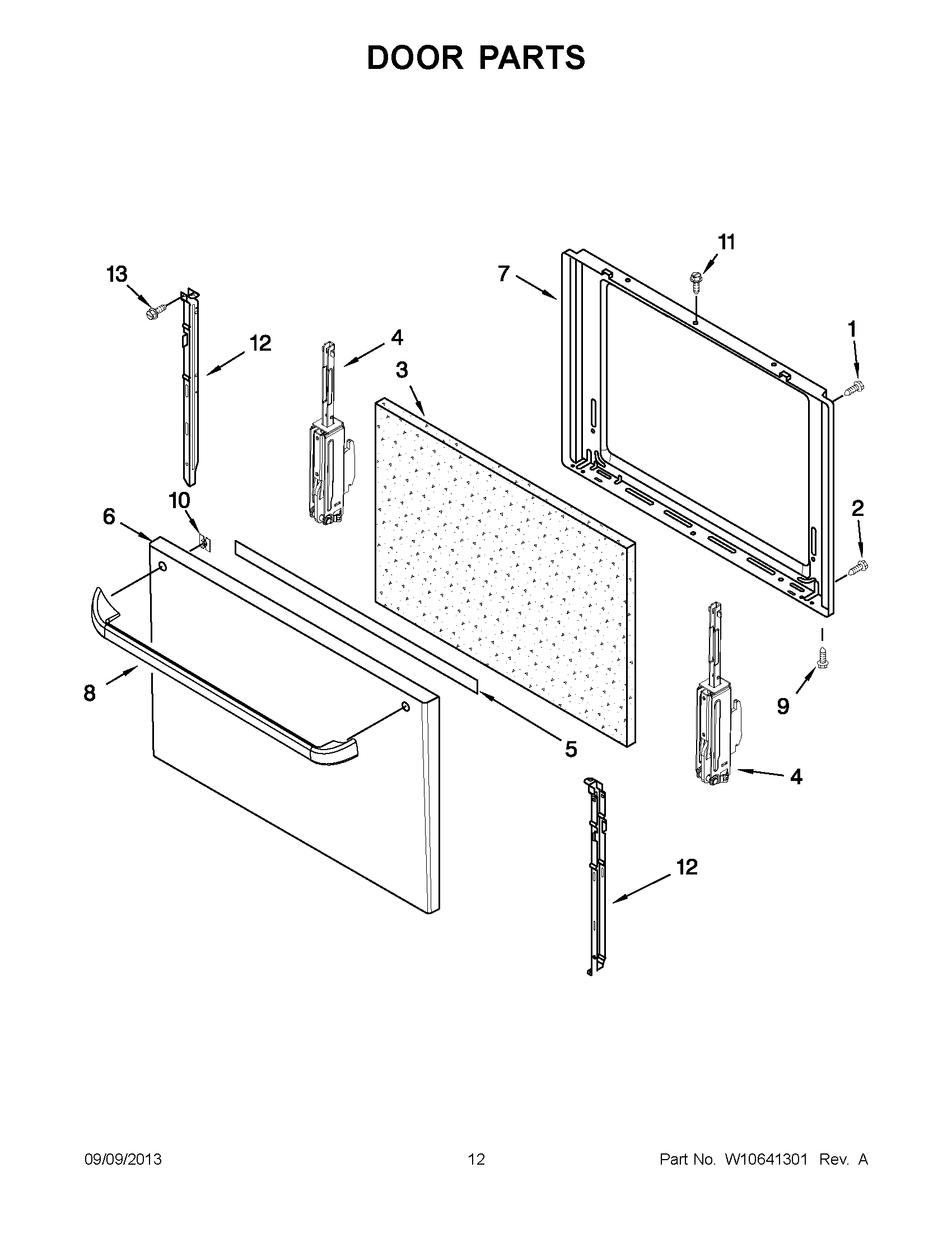

AGR3311WDW3 07 – DOOR PARTS

Products

Position	Product
NI	ACCESSORY PARTS, KIT, DOOR PIN
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW
2	SCREW
3	INSULATION, TOP
4	HINGE, DOOR
4	HINGE, OVEN DOOR (YELLOW)
5	MAY W10544222
6	PANEL-DOOR
7	MAY 98017966
8	MAY 98017915W
9	SCREW
10	BRACKET, HANDLE
11	SCREW (BLACK)
12	RETAINER (LEFT HAND)
12	RETAINER (RIGHT HAND)
13	SCREW
