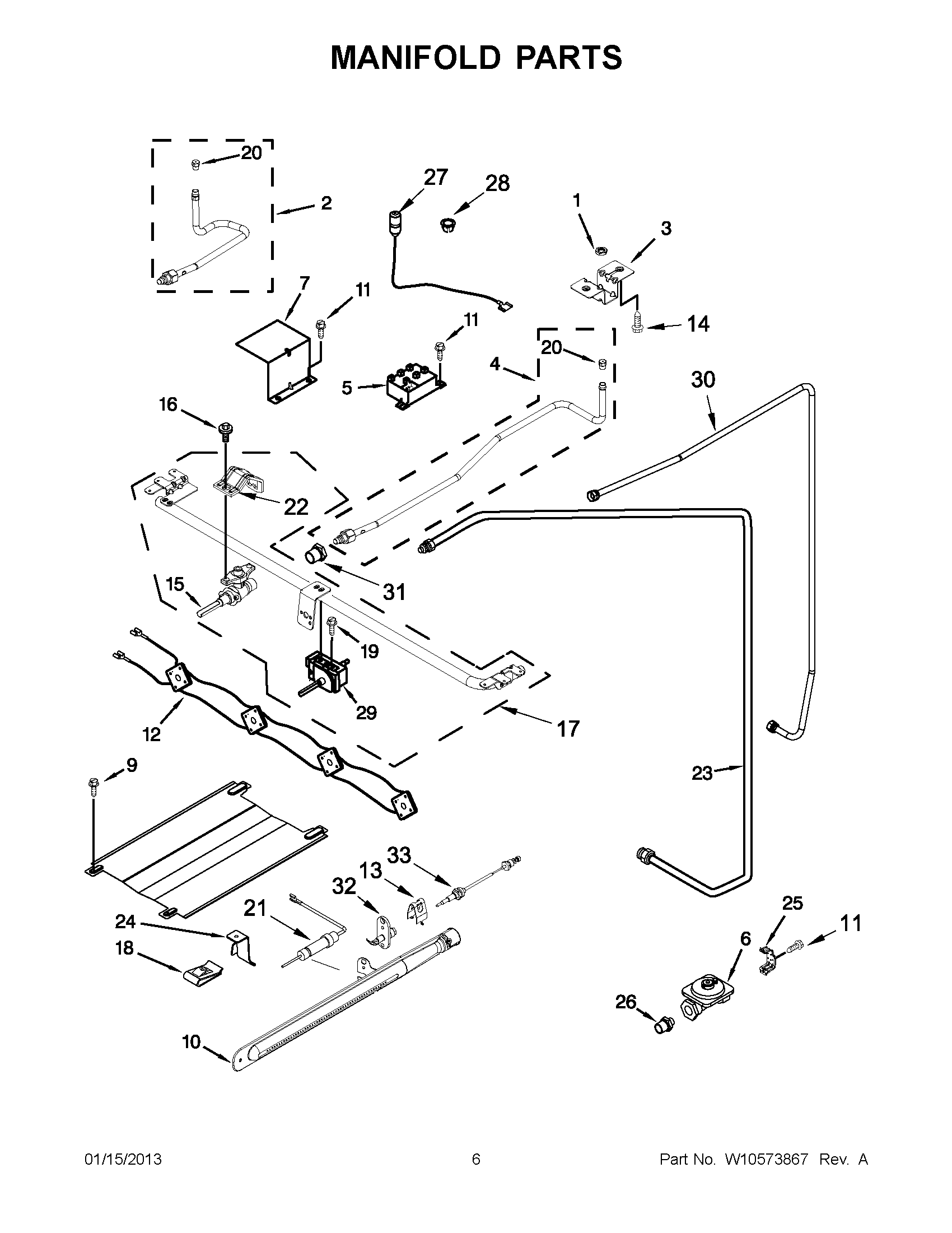

AGR3530AAW0 03 – MANIFOLD PARTS

AGR3530AAW0 03 – MANIFOLD PARTS

Written by

in

AGR3530AAW0 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10537440
NI	LINER (NOT A SERVICEABLE PART)
1	NUT
2	VENTURI, FRONT (RF)
3	BRACKET, VENTURI
4	VENTURI, REAR
5	MAY W10518414
6	MAY 98007462
7	MAY 98007192
8	MAY W10518046
9	SCREW
10	MAY W10517877
11	SCREW
12	MAY W10518032
13	RETAINER, THERMOCOUPLE
14	MAY W10146346
15	VALVE, BURNER (LF, LR, RF, RR)
16	MAY 98017517
17	MAY W10518326
18	U-NUT
19	SCREW
20	Orifice (RF, RR, LR)
21	MAY W10525210
22	MAY W10421119
23	TUBING, THERMOSTAT TO PILOT
24	MAY 98013314
25	MAY 98007410
26	MAY 98007431
27	IGNITOR, TOP (RF, RR, LF)
27	IGNITOR, TOP (LEFT REAR)
28	MAY W10278150
29	MAY W10503587
30	Tubing, Inlet
31	MAY 98005514
32	MAY W10085400
33	MAY W10155906
