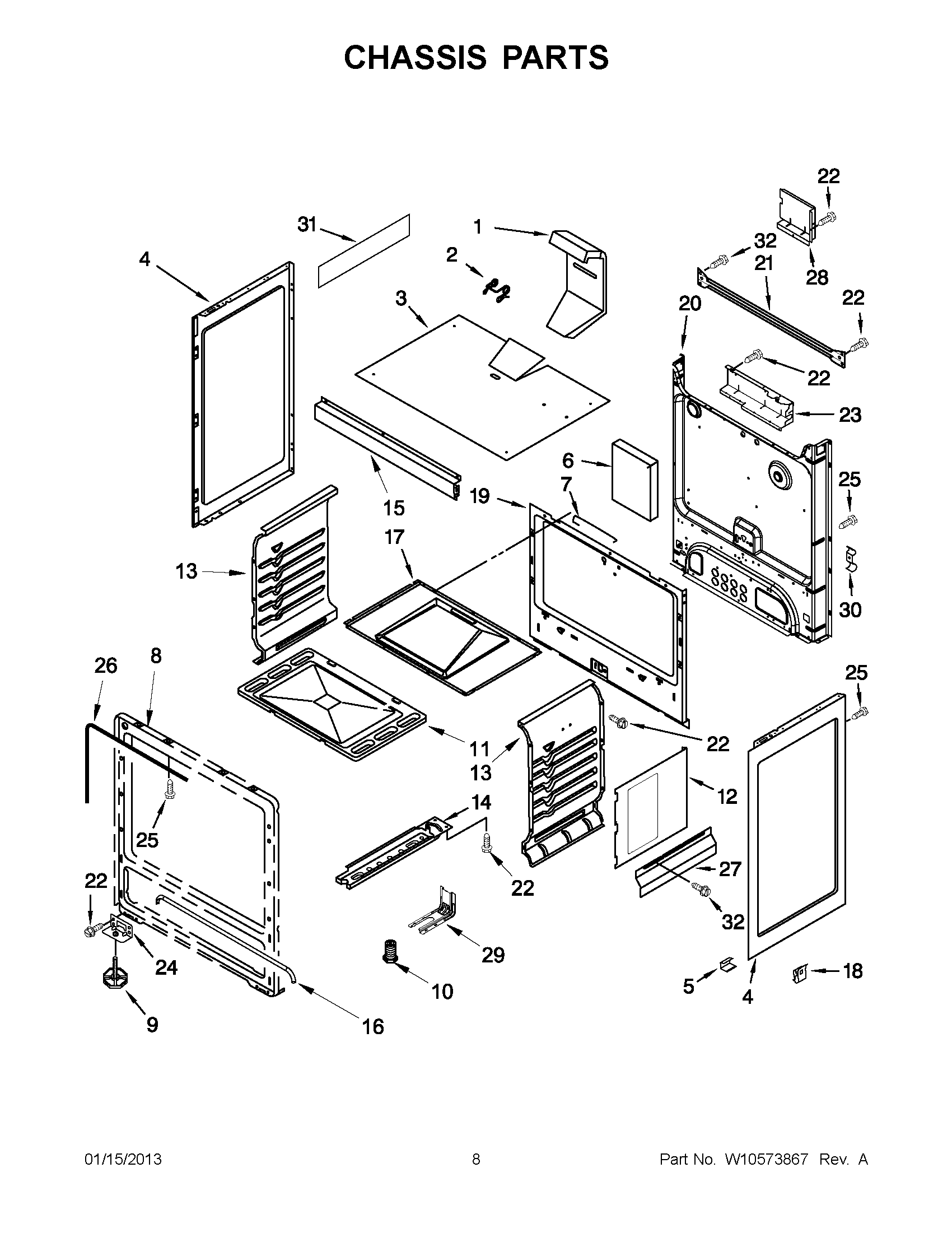

AGR3530AAW0 04 – CHASSIS PARTSadmin2025-04-26T12:24:58+00:00AGR3530AAW0 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10137227 |
| NI | MAY W10137233 |
| 1 | MAY 98003799 |
| 2 | SPRING, TORSION (FLUE BOX) |
| 3 | SHIELD, UPPER |
| 4 | PANEL, SIDE (WHITE) |
| 5 | CLIP, OVEN BOTTON |
| 6 | COUNTERWEIGHT |
| 7 | MAY 98006739 |
| 8 | MAY W10166434 |
| 9 | FOOT, FRONT |
| 10 | FOOT, LEVELING |
| 11 | MAY W10518043 |
| 12 | BAFFLE, SIDE |
| 13 | SIDE, OVEN (RIGHT HAND) |
| 13 | SIDE, OVEN (LEFT HAND) |
| 14 | RAIL, BASE |
| 15 | MAY 98012175 |
| 16 | Gasket, Broil Door |
| 17 | MAY 98004447 |
| 18 | U-NUT |
| 19 | MAY 98005768 |
| 20 | MAY 98015100 |
| 21 | MAY 98015363 |
| 22 | SCREW |
| 23 | MAY 98014105 |
| 24 | BASE, FOOT |
| 25 | SCREW |
| 26 | MAY W10217472 |
| 27 | SHIELD, HEAT (LOWER) |
| 28 | Cover, Socket |
| 29 | MAY W10477747 |
| 30 | CLIP, TUBING |
| 31 | FOIL, SIDE |
| 32 | Screw |
